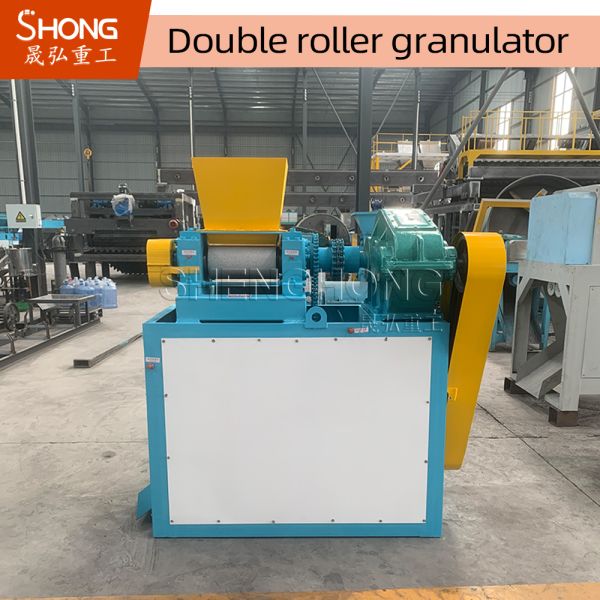

Ammonium Sulphate Double Roller Granulator for Dry Granulation with Customizable Granule Shape and 380V Voltage
Ammonium Sulphate Double Roller Granulator for Dry Granulation with Customizable Granule Shape and 380V Voltage
Specifications
Brand Name :
SHENGHONG
Model Number :
SDZ-I-1.0
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 Days
Packaging Details :
Package or Container
Warranty :
12 Months
Voltage :
380V
Usage :
Making fertilizer granules
Origin :
Zhengzhou China
Granule Shape :
Flat Ball
Specification :
150*220
Feeding Size :
<0.5mm
Application :
Fertilizer Granulator
Description
Ammonium Sulphate Compound Fertilizer Granulator
Product Overview

Ammonium sulphate compound fertilizer granulator is designed for efficient compound fertilizer production through dry granulation technology.

Working Principle

The granulator consists of base support, granulating rollers, crushing chamber, and motor transmission components. Operating under dual shafts, materials enter the hopper and are compressed into spherical particles by roller pressure. Particles flow through the crushing chamber and are separated by sieve mesh, with undersized powder returning to the hopper for re-granulation.

This dry granulation process is specifically designed for materials with moisture content below 20%. Final particle shape and size are customizable, including oval, bar, charcoal, tablet, and cylinder configurations.

Applications

Double roller granulator is suitable for producing various fertilizers including:

  • Potassium chloride fertilizer
  • Bulk blend NPK chemical fertilizer (diameter 1-4mm)
  • Ammonium sulfate fertilizer
  • Ammonium chloride fertilizer
  • Ammonium carbonate fertilizer
  • Urea fertilizer

The equipment can process diverse raw materials including DAP, SSP, gypsum, various animal manures (sheep, cow, chicken, pig), bentonite, and other organic wastes.

Technical Specifications
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.01-1.511Speed adjustable1420×750×1310
SDZ-I-2.01.5-2.518.5Speed adjustable1570×920×1450
SDZ-I-3.02.5-3.522Speed adjustable1750×870×1530
SDZ-I-4.03.5-4.545Speed adjustable1900×1050×1680
SDZ-II-1.01-215Speed adjustable1340×930×1310
SDZ-II-2.01.5-2.518.5Speed adjustable1750×870×1530
SDZ-II-3.02.5-3.522Speed adjustable1900×1050×1680
Key Features
  • Simple machine structure
  • Easy operation and maintenance
  • Low power consumption
  • Single-pass forming with no drying process required
  • Normal temperature granulation
  • Long service life
Ammonium Sulphate Double Roller Granulator for Dry Granulation with Customizable Granule Shape and 380V Voltage
