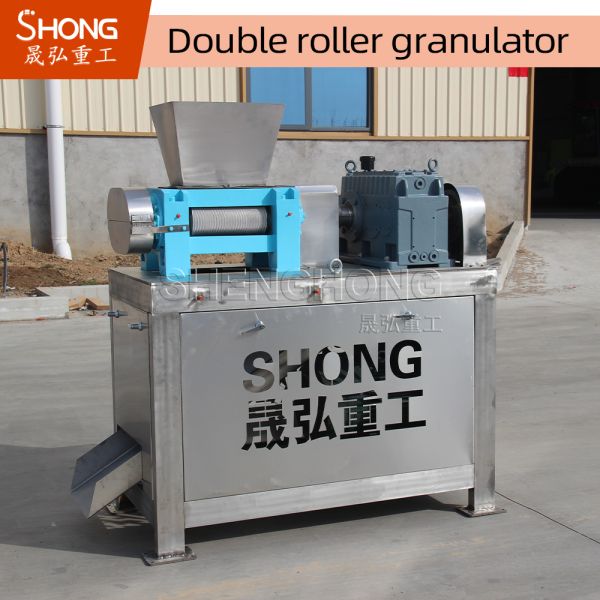

Carbon Steel 380V Compound Fertilizer Granulator Machine with 1-4 t/h Capacity for NPK Fertilizer Making
Carbon Steel 380V Compound Fertilizer Granulator Machine with 1-4 t/h Capacity for NPK Fertilizer Making
Specifications
Brand Name :
SHENGHONG
Model Number :
SDZ-I-1.0
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 Days
Packaging Details :
Package or Container
Material :
Carbon steel
Model :
1mm-15cm
Capacity :
1-4 t/h
Suit for :
NPK Compound fertilizer
Warranty :
12 Months
Pellet Diameter :
2-10mm
Voltage :
380V
Usage :
Making fertilizer granules
Description
Compound Fertilizer Granulator Machine, NPK Fertilizer Making Machine
Product Overview

The electric motor drives the pulley, and the transmission belt is transmitted through the speed reducer to a pair of two high-pressure roller bodies with a sliding mold shell to perform relative work.

Key Features
  • Multi-process adaptability: Disc granulation (high roundness), drum granulation (continuous production), extrusion granulation (direct molding of high humidity materials)
  • Energy saving design: Planetary gear reducer reduces energy consumption by 25%, waste heat recovery system
  • Intelligent control: AI visual particle size detection, 4G remote operation, 98% fault warning accuracy
  • Wide application: Large-scale compound fertilizer production, blended fertilizer granulation upgrade, industrial by-products resource utilization
Carbon Steel 380V Compound Fertilizer Granulator Machine with 1-4 t/h Capacity for NPK Fertilizer Making
Granulator Specifications

Features beautiful appearance, simple operation, low energy consumption, long service life and high granulation rate. Advanced compound fertilizer granulation equipment with wide application range.

  • No drying process, room temperature granulation, one-time molding
  • Reliable operation, no waste discharge, stable performance, easy maintenance
  • Wide raw material compatibility for various industries including fertilizer, medicine, chemical, feed, coal, metallurgy
  • Specialized for rare earth, ammonium bicarbonate, ammonium sulfate compound fertilizer granulation
Technical Parameters
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.01-1.511Speed adjustable1420×750×1310
SDZ-I-2.01.5-2.518.5Speed adjustable1570×920×1450
SDZ-I-3.02.5-3.522Speed adjustable1750×870×1530
SDZ-I-4.03.5-4.545Speed adjustable1900×1050×1680
SDZ-II-1.01-215Speed adjustable1340×930×1310
SDZ-II-2.01.5-2.518.5Speed adjustable1750×870×1530
SDZ-II-3.02.5-3.522Speed adjustable1900×1050×1680
Product Specifications
Shape of finished productsOval, irregular, wheat shaped, etc. Customizable according to customer requirements
Material moisture requirementNot more than 10%
The rate of ball formation95%
Output1-4t/h (can combine multiple granulators to increase output)
Granule size3-8mm (popular market diameter: 2.8-4mm)
Working Principle

The roller granulation system operates on extrusion sliding model principle. Driven by motor belt and pulley through reducer to drive shaft, synchronized with passive shaft via open gears for opposite work. Material fed from hopper, extruded through rolls, stripped and pelletized, then transferred to crushing sieve studio for separation of finished pellets. Continuous rotation enables mass production.

Carbon Steel 380V Compound Fertilizer Granulator Machine with 1-4 t/h Capacity for NPK Fertilizer Making
