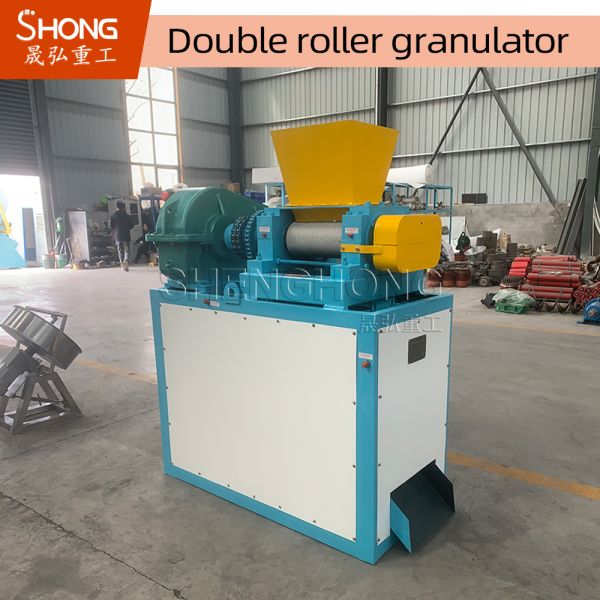

Double Roller Extrusion Potassium Fertilizer Granulator Machine with 1-4 t/h Capacity and Carbon Steel Construction
Double Roller Extrusion Potassium Fertilizer Granulator Machine with 1-4 t/h Capacity and Carbon Steel Construction
Specifications
Brand Name :
SHENGHONG
Model Number :
SDZ-I-1.0
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 Days
Packaging Details :
Package or Container
Material :
Carbon steel
Model :
1mm-15cm
Capacity :
1-4 t/h
Suit for :
NPK Compound fertilizer
Warranty :
12 Months
Pellet Diameter :
2-10mm
Voltage :
380V
Usage :
Making fertilizer granules
Description
Potassium Fertilizer Granulator Machine, NPK Compound Fertilizer Granulator
Product Overview

The electric motor drives the pulley, and the transmission belt is transmitted through the speed reducer to a pair of two high-pressure roller bodies with a sliding mold shell to perform relative work.

The SDZ extruder features two rollers interacting with each other through a pair of split gears, driven directly by two output shafts on a dedicated reducer to achieve efficient extrusion.

Double Roller Extrusion Potassium Fertilizer Granulator Machine with 1-4 t/h Capacity and Carbon Steel Construction
Equipment Features
  • Double shaft power output with each shaft driving its roller through coupling for synchronous opposite-direction work, resulting in better granule formation and higher strength
  • Simple and convenient ball socket contraposition adjustment design with provided roller adjustment drawings and operation steps
  • All machines undergo professional testing and trial production before leaving the factory
Technical Parameters
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.01-1.511Speed adjustable1420×750×1310
SDZ-I-2.01.5-2.518.5Speed adjustable1570×920×1450
SDZ-I-3.02.5-3.522Speed adjustable1750×870×1530
SDZ-I-4.03.5-4.545Speed adjustable1900×1050×1680
SDZ-II-1.01-215Speed adjustable1340×930×1310
SDZ-II-2.01.5-2.518.5Speed adjustable1750×870×1530
SDZ-II-3.02.5-3.522Speed adjustable1900×1050×1680
Granule Specifications
Shape of finished productsOval, irregular, wheat shaped, etc., customizable according to customer requirements
Material moisture requirementNot more than 10%
The rate of ball formation95%
Output1-4t/h (can combine multiple granulators to increase output)
Granule size3-8mm (popular market granule diameter: 2.8-4mm)
Working Process

Raw materials enter the hopper and are pressed and formed by the high-pressure roller body. After mold release, material flows to the crushing and forming section in the lower part of the roller body.

The power for crushing and forming comes from the relative movement of a pair of crusher rollers driven by the sprocket of the active press roller shaft via chain drive.

After crushing and screening in the working chamber, finished particles pass through the screen to the discharge and exit the machine.

Double Roller Extrusion Potassium Fertilizer Granulator Machine with 1-4 t/h Capacity and Carbon Steel Construction

Production Flow: Input → Granulation → Screening → Finished Granules → Optional Processes (Screening Machine, Coating Machine, Weighing and Packaging)

Note: If material becomes blocked, use chain crusher to resolve. Rollers are forged from special materials and machined with numerical lathe and milling machines for rust resistance, acid/alkali resistance, long service life, and crack resistance.
