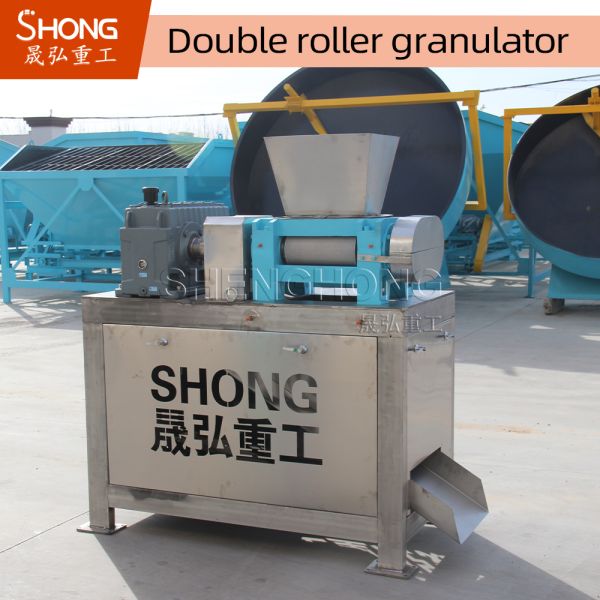

Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter
Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter
Specifications
Brand Name :
SHENGHONG
Model Number :
SDZ-I-1.0
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 Days
Packaging Details :
Package or Container
Material :
Carbon steel
Model :
1mm-15cm
Capacity :
1-4 t/h
Suit for :
NPK Compound fertilizer
Warranty :
12 Months
Pellet Diameter :
2-10mm
Voltage :
380V
Usage :
Making fertilizer granules
Description
NPK Compound Fertilizer Granulation Equipment, Press Pellet Granulator
This granulation equipment features beautiful appearance, simple operation, low energy consumption, long service life, and high granulation rate. It represents the most advanced compound fertilizer granulation technology in China and is widely used throughout the country.
Key Features
  • No drying process required - room temperature granulation with single-step forming
  • Low investment with quick returns and excellent economic benefits
  • Reliable operation with no waste discharge, stable performance, and easy maintenance
  • Wide range of raw material compatibility including compound fertilizer, medicine, chemical industry, feed, coal, and metallurgy
  • Capable of producing various concentrations including organic, inorganic, biological, and magnetic fertilizers
  • Specialized capability for rare earth, ammonium bicarbonate, and ammonium sulfate compound fertilizer granulation
Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter
Machine Specifications
  • No drying technology required - normal temperature granulating with single-step forming
  • Combines granulating, forming, and screening into one machine
  • Produces beautiful appearance granules with easy operation and low energy consumption
  • SDZ models feature upgraded rack with high-quality anti-corrosive cast materials for enhanced stability and extended roller service life
Technical Parameters
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.01-1.511Speed adjustable1420×750×1310
SDZ-I-2.01.5-2.518.5Speed adjustable1570×920×1450
SDZ-I-3.02.5-3.522Speed adjustable1750×870×1530
SDZ-I-4.03.5-4.545Speed adjustable1900×1050×1680
SDZ-II-1.01-215Speed adjustable1340×930×1310
SDZ-II-2.01.5-2.518.5Speed adjustable1750×870×1530
SDZ-II-3.02.5-3.522Speed adjustable1900×1050×1680
Granule Specifications
Shape of Finished Products
Oval, irregular, wheat shaped, etc. Custom shapes available per customer requirements
Material Moisture Requirement
Not more than 10%
Rate of Ball Formation
95%
Output
1-4t/h (multiple granulators can be combined to increase output)
Granule Size
3-8mm (popular market diameter: 2.8-4mm)
Working Principle
The roller granulation system operates on an extrusion sliding model. Driven by motor belt and pulley through the reducer to the drive shaft, and synchronized with the passive shaft via open gears, the system works in opposite rotation. Material is fed from the hopper, extruded through the roll, stripped and pelletized, then transferred via chain to the crushing sieve studio where finished product pellets are separated. The feed is mixed with new material for continuous granulation. With continuous motor rotation and material input, mass production is achieved.
Carbon Steel NPK Compound Fertilizer Granulator with 1-4 t/h Capacity and 2-10mm Pellet Diameter
