SDZ Series Compound Fertilizer Granulator - No Drying Required, Energy Efficient, High Granulation Rate
SDZ Series Compound Fertilizer Granulator - No Drying Required, Energy Efficient, High Granulation Rate
Specifications
Brand Name :
Shenghong
Model Number :
SDZ-I-1.0
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
10-12 Days
Packaging Details :
Wooden Package or Container
Model :
SDZ Series
Raw Material of Machines :
Carbon Steel
Using :
Fertilizer Granulator Machine
Shape of Fertilizer :
Nearly Ball Shape
Feeding size :
<0.5mm
Parcticality :
fertilizer
Granulation Type :
Dry Type
Proper Material :
Feedstuff, Fertilizer, Dry Powder
Capacity :
1-1.5t/h
Machine Type :
Compound fertilizer granulator
Suit For :
NPK Compound fertilizer
Color :
Customized
Moisture :
2%-8%
Drying After Granulator :
No Need
Type Of Machine :
Compound fertilizer granulator
Description
Customized Compound Fertilizer Granulator for Beautiful Appearance and Low Energy Consumption
Product Overview

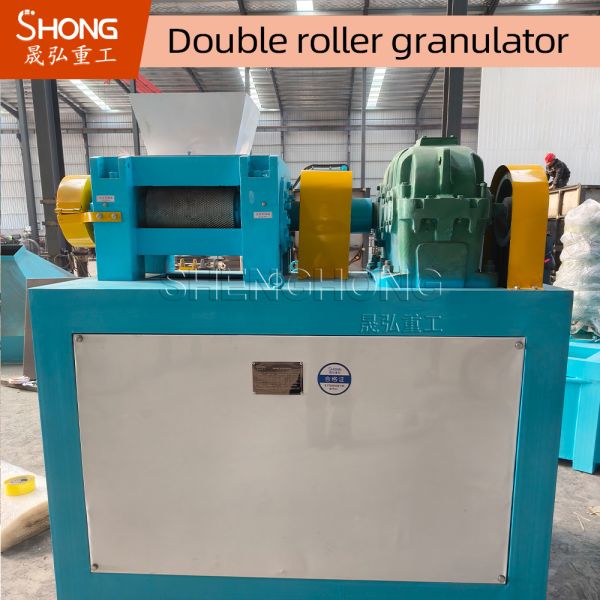

The SDZ series roller extrusion granulator is a high-performance dry granulation machine designed for one-step forming at room temperature. It is widely recognized for its energy-saving design, reliable operation, and broad material adaptability.

SDZ Series Compound Fertilizer Granulator - No Drying Required, Energy Efficient, High Granulation Rate
Main Applications

This granulator is suitable for granulating various types of raw materials with different concentrations, including but not limited to:

  • Compound & blended fertilizers
  • Pharmaceutical ingredients & feed additives
  • Chemical powders, rare earth compounds, metallurgical auxiliaries
  • Coal fines, biological agents, and environmental protection materials
Key Advantages
No drying required Granulation is completed at room temperature in a single pass, eliminating the need for drying equipment and reducing energy costs.
Simplified production process Raw materials are directly formed into granules, reducing additive consumption and simplifying overall operation.
Durable roller design Rollers are made of anti-corrosion, wear-resistant, and impact-resistant metal, ensuring long-term stable operation and higher output.
User-friendly operation Features good sealing, low noise level, stable performance, and easy maintenance.
Working Principle

The roller extrusion granulator is driven by an electric motor. Power is transmitted through a belt pulley and reducer to two counter-rotating rollers.

Raw materials enter through the feeding port and are squeezed between the two rollers under high pressure. The extruded materials form dense sheets or strips, which then break into granules after demolding. These granules automatically fall into the crushing and shaping chamber located at the bottom of the machine. After being crushed and shaped, the granules are sieved to separate standard-sized particles, which are finally discharged through the discharge chute.

Technical Specifications
Model Capacity (t/h) Power (kW) Rotation Speed Overall Dimensions (mm)
SDZ-I-1.0 1 - 1.5 11 Adjustable 1420 × 750 × 1310
SDZ-I-2.0 1.5 - 2.5 18.5 Adjustable 1570 × 920 × 1450
SDZ-I-3.0 2.5 - 3.5 22 Adjustable 1750 × 870 × 1530
SDZ-I-4.0 3.5 - 4.5 45 Adjustable 1900 × 1050 × 1680
SDZ-II-1.0 1 - 2 15 Adjustable 1340 × 930 × 1310
SDZ-II-2.0 1.5 - 2.5 18.5 Adjustable 1750 × 870 × 1530
SDZ-II-3.0 2.5 - 3.5 22 Adjustable 1900 × 1050 × 1680

Note: Rotation speed is adjustable to accommodate different material characteristics.

Why Choose SDZ Series?
  • Energy efficient - no drying process, low power consumption.
  • Eco-friendly - dry granulation, no wastewater or exhaust gas.
  • High granulation rate - uniform particle size with high strength.
  • Low maintenance - robust construction and easy access for cleaning and servicing.
Contact Us

For more information or a customized quotation, please feel free to contact our sales team. We are ready to support your granulation needs.
