NPK Dry Chemical Powder Compound Fertilizer Granulator with Double Roller Extrusion 18.5kw Power and 1.5-2.5 ton/hour Capacity
NPK Dry Chemical Powder Compound Fertilizer Granulator with Double Roller Extrusion 18.5kw Power and 1.5-2.5 ton/hour Capacity
Specifications
Brand Name :
Shenghong
Model Number :
SDZ
Certification :
ISO9001
Place of Origin :
Zhengzhou, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,D/A,Western Union
Supply Ability :
100 sets per month
Delivery Time :
5-8 working days
Packaging Details :
customer demand, usually in container
Raw material of fertilizer :
Powder
Voltage :
380V, 50HZ
Type of Machine :
Compound fertilizer granulator
Installation :
Guidance of engineer
Power :
18.5kw
Warranty :
12 month
Capacity :
1.5-2.5 ton/hour
Color :
As your request
Description
NPK Dry Chemical Powder Compound Fertilizer Granulator With Double Roller
Product Overview
The NPK Dry Chemical Powder Compound Fertilizer Granulator utilizes advanced double roller granulation technology, reducing equipment investment by over 30% while maintaining material integrity and physical properties throughout the production process.
Working Principle
This double roller compound fertilizer granulator operates on continuous extrusion granulation through positive displacement. The system offers wide adaptability, producing circular-shaped particles with diameters ranging from 3.5mm to 10mm. With a product rate exceeding 85%, the equipment features excellent material adaptability and is particularly suitable for granulation with thixotropic properties.
Key Advantages
  • Optimal Design: Compact structure, lightweight construction, stable rotation, high precision and stiffness with corrosion-resistant press rollers
  • Versatile Application: Compatible with 20+ raw materials including urea, ammonium nitrate, potassium chloride, bentonite, and various animal manures
  • High Efficiency: Direct conversion of raw materials to fertilizer granules with over 85% granulation ratio
  • Environmental Protection: Reliable motor operation with no waste emissions
  • Energy Saving: No drying process required, eliminating need for oil or gas firing
Technical Specifications
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.0 1-1.5 11 Speed adjustable 1420×750×1310
SDZ-I-2.0 1.5-2.5 18.5 Speed adjustable 1570×920×1450
SDZ-I-3.0 2.5-3.5 22 Speed adjustable 1750×870×1530
SDZ-I-4.0 3.5-4.5 45 Speed adjustable 1900×1050×1680
SDZ-II-1.0 1-2 15 Speed adjustable 1340×930×1310
SDZ-II-2.0 1.5-2.5 18.5 Speed adjustable 1750×870×1530
SDZ-II-3.0 2.5-3.5 22 Speed adjustable 1900×1050×1680

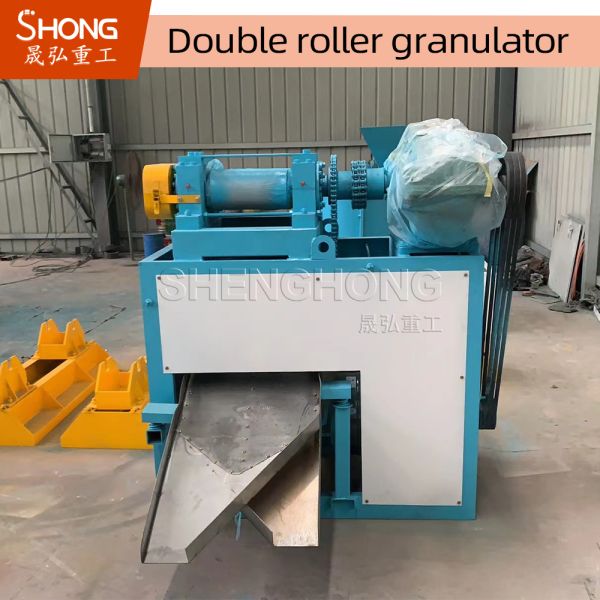

Product Image
NPK Dry Chemical Powder Compound Fertilizer Granulator with Double Roller Extrusion 18.5kw Power and 1.5-2.5 ton/hour Capacity
