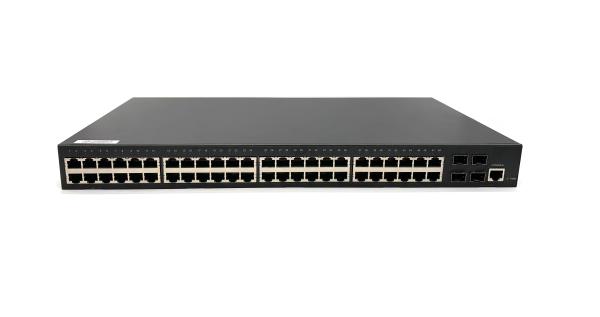

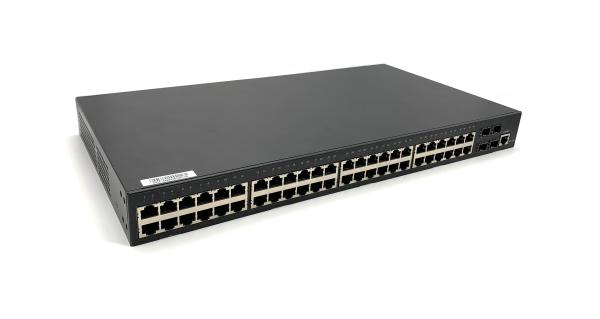

Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W
Specifications
Brand Name :
MESTECHS
Model Number :
MSG8448
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20sets/week
Delivery Time :
45 work days
Packaging Details :
Common package
Ethernet Port :
48xGigabit Ethernet
Optical Port :
4xSFP
Power-Input :
AC 100~240V 50/60Hz
Power-Consumptiion :
30W
Description

MSG8448: 48 BaseTX 4 SFP L2 Management Ethernet Switch

Product Highlight :

  • Flexible Port Configuration :
  • 48 GE with 4 GE/SFP Combo
  • Support L2 Management
  • Standard 19” 1U rack mount design
  • Support CLI and Web Management
  • Add-on Features :
  • POE/PSE, Fan Control, GPIO
  • Tailor-made or Turnkey solution available

Our MSG8448 is an industrial Layer 2 network management switch, with maximium of 48 gigiabit Ethernet ports and 4 optical port SFP or gigabit Ethernet combo.

High Density Design


The use of Realtek RTL8393M gigabit Ethernet switch chipset allows higher integration and more flexible port configuration design. It supports total 52 ports in a 19” 1U rack mount design.

User Friendly Web Management and CLI


The MSG8448 provides an user friendly web management system. The L2 management features can be easy accessed and configured through an Ethernet port. There is also a local RS-232 interface, allows the CLI to configure the system.

Excellent Protection Ability, Able to Adapt to Harsh Environment


The use of industrial grade chipset and components allow the device working at temperature -40℃ to 75℃ without data loss. Lightning protection and electrostatic protection designs to meet the EMI and EMS international standards.

Hardware Specifications

Item Detail
Ethernet Port 48 x 1000 Base-T RJ45
Optical Port

4 x SFP

(can be modified to 4 x 1000 Base-T RJ45 or combo)
Control Port 1 x RJ45-R232 Serial Port (115200,8,N,1)
OOB Port 1 x 10/100 Base-TX RJ45 (only to web management)
Init Key

Press to Restart

Press and Hold >5s to Default Recovery
Power AC 100~240V 50/60Hz
Power Consumption 30W

Data (Alarm)

Input / Output

2 x Digital Input for exteral alarm

2 x Digital Output for

the switch power failure

cable link down & PoE link off

Signal Type : normal-open or normal-closed from relay
Standard

IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3Z,

IEEE802.3X,IEEE802.1Q,IEEE802.1p,

IEEE802.3ad,IEEE802.1D,IEEE802.1X
Exchange Capacity 104Gbps / non-blocking
Package Conversion Rate 77.3Mpps@64bytes
Exchange Mode Store-and-Forward
Package Data Cache 12Mbit
MAC Address List 16k
Rectangular Layout 12k bytes
EMI FCC Part 15, CISPR(EN55022) Class A
EMS

Surge level-4 execute : IEC61000-4-5

ESD level-4 execute : IEC61000-4-2

RS level-4 execute :IEC61000-4-3

EFT level-4 execute : IEC61000-4-4

CS level-3 execute : IEC61000-4-6

M/S level-5 execute: IEC61000-4-8
Operating Temperature -40-75℃
Storage Temperature -40-85℃
Size (L×W×H) 440mm × 229mm × 45mm
Weight 4.5kg
Identification CE ,FCC,ROHS

Software specifications

  • Support 802.1p COS/DSCP/TOS priority
  • Support IGMP Snooping
  • Support MLD-snooping
  • Multicast VLAN Registration(MVR)
  • Supports IP , MAC, port, VLAN binding combinations
  • Support IPV4 static route setup
  • Support static ARP Add,delete,burn-in time sutup/check
  • Support group-brocasting PIM,IGMPV1/V2/V3, MLD(IPV4)
  • Support DHCP client
  • Support relay reperter , DHCP snooping
  • Support duplex trandfer check mechanism

Product Dimensions

Fan Control PoE Ethernet Switch MSG8448 48 BaseTX 4 SFP L2 GPIO 30W

Production Packaging

Item Detail
Switch 1pcs
suspension loop 2pcs
AC power line 1pcs
Package Size 520*320*125mm

Order Information

Product Description Order Code

48 + 4 SFP L2 management Ethernet switch MSG8448

48 + 4 SFP L2 management Ethernet switch MSG8048
