1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports
1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports
1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports
1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports
1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports
1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports
Specifications
Brand Name :
MESTECHS
Model Number :
MSG1016
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
45 work days
Packaging Details :
Common package
Certification :
CE、FCC、RohS、ISO9001
Ports :
16GE ethernet ports
Power Supply :
AC 220V
Interface :
RJ45
Working temperature :
-10～85 °C
Description

MSG1016:cost-effective 16-port Gigbitethernet switch with Metal industrial

Product Description

  • Support for automatic port rollover Support 8-24 100Mbps gigabit RJ45 port all ports are supported MDI/MDIX automatic rollover feature
  • High performance low delay data forwarding without blocking Support IEEE802.3x full duplex flow control and Backpressure Half duplex flow control all ports with line-speed forwarding function,will not be lost any packet
  • Support for wall hanging design :The switch is equipped with hanging lugs,which can be mounted on the rack,suitable for mounting machine room racks in engineering projects
  • Multipurpose : network switches are used in addition to monitoring networks It is also used in home network construction and office network constructionWireless coverage of public places such as hotels



Product

16GE ethernet ports
Backplate bandwidth:32Gbps
Packet forwarding rate:23.8Mpps
Power supply:external power supply
Installation mode:desktop type can not mount the rack

Specification


Ports 16*RJ45 ports:
100/1000BASET (X) automatic detection, full/half duplex MDI/MDI-X adaptive
Network protocol IEEE802.310BASE-TIEEE802.3i
10Base-T;IEEE802.3u;100Base-TX/FX 1000Base-TX/FX;
IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;
IEEE802.3af, IEEE802.3at
Applicable standards EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
IEC(EN)61000-4-2(ESD) : ±8kV contact discharge,±15kVair discharge
IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)
IEC(EN)61000-4-4(EFT) : power:±4kV ; data cable: ±2kV
IEC(EN)61000-4-5(Surge) : power: ±4kV CM/±2kV DM ; data cable: ±2kV
IEC(EN)61000-4-6(radio frequency transmission) : 3V(10kHz～150kHz),10V(150kHz～80MHz)
IEC(EN)61000-4-16(Common-mode transmission) : 30V cont. 300V,1s
IEC(EN )61000-4-8
Shock :IEC 60068-2-27
Freefall :IEC 60068-2-32
Vibration :IEC 60068-2-6
Power input:AC/220V
Access terminal: Phoenix terminal
Support built-in overstream 4.0A protection
Support backconnect protection
power dissipation < 3W
certification CE,FCC,RohS,ISO9001:2008
Working environment Working temperature :-40～85 °C(-40～185 °F)
Storage temperature :-40～85 °C(-40～185 °F)
Relative humidity :5%～95%( NON-condensation)
Size 282mm(L) * 178mm(W) *44mm(H)
Weight 0.64Kg
Mean failover time 300,000 hours
Protection grade IP40

1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports

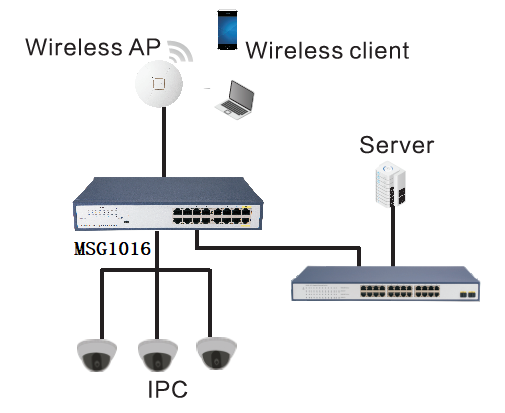

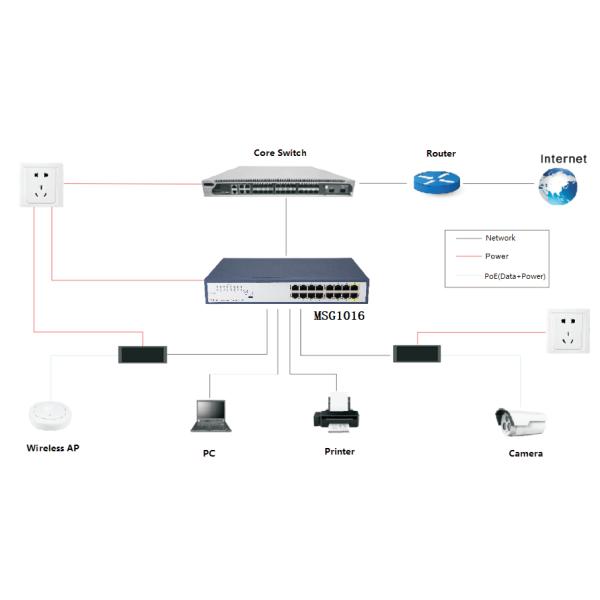

Deployment case

1000Base-TX 1000M Gigbit Ethernet Switch MSG1016 16 Ports

communication network switch provides a maximum of 4 Ethernet ports of 100 Megabyte/gigabit,with enterprise-class performance to meet household needs with a new steel shell,strong heat dissipation performance to ensure a long and stable operation of the machine,suitable for more application scenarios industrial-grade manufacturing trustworthy.
