DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch
DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch
DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch
DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch
DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch
DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch
Specifications
Brand Name :
MESTECHS
Place of Origin :
CHINA
Model Number :
MSG108
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
60 work days
Packaging Details :
Common package
material :
copper
power input :
AC 220V
POE :
PSE
application :
hotel industrial
Description

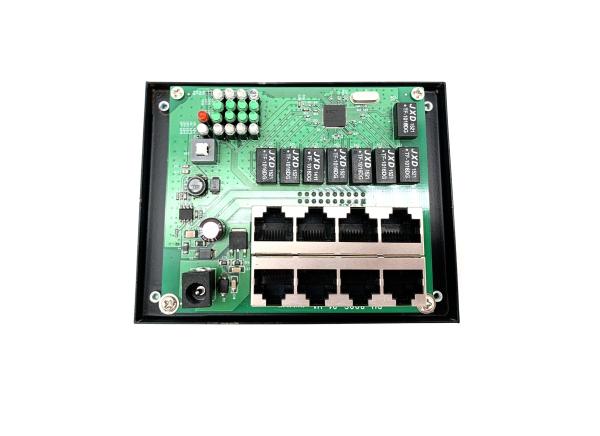

MSG108 8 port Gigabit panel Ethernet switch POE 8 port DC output AC 220V input

MSG108 is an 8-port 10/100/1000m non-management Ethernet switch using RTL8370N-VB-CG chip. This product provides 8 10/100/1000mbps adaptive ports. With high integration design, it is small, light, easy to operate and suitable for small and medium-sized office and home networks.The use of store-and-forward technology, combined with dynamic memory allocation, ensures efficient allocation to each port.Traffic control ensures that the nodes avoid packet loss when transmitting and receiving.Compatible with 10base-tx, 1000base-t three network environment, port speed 10/100/1000 automatic matching.LED panel light dynamic display of power/network on and off.Input power limit protection to prevent power plug by mistake.

Feature

  • 8 10/100/1000m adaptive RJ45 ports;
  • Standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az;
  • Flow control: full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard;
  • Store-forward architecture;
  • The UTP port supports the automatic negotiation function and automatically adjusts the transmission mode and rate.
  • Support MAC address self-learning;
  • Dynamic LED indicator provides simple working status prompt and troubleshooting;

Application

DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch

Hardware specifications

Model Name MSG108
8 port Gigabit panel Ethernet switch module
Standards IEEE 802.3 10BASE-TX Fast Ethernet
IEEE 802.3U 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 N-Way Auto-negotiation
Protocol type CSMA/CD
Port 10/100/1000 Mbps Switch Port(RJ-45 port)
Uplink port Any port
Topological structure Connected in star
Operating mode Full duplex or half duplex
Network cable 10Base-T:5/6type twisted-pair,Up to 100 meters
100Base-TX:6type twisted-pair,Up to 100 meters
1000Base-TX:6/6+type twisted-pair,Up to 100 meters
Operating voltage DC5V/1A

DC Output AC Input Industrial Ethernet Switch , 8 Port Industrial PoE Switch

Order Information

Product Description Order Code

8 port Gigabit panel Ethernet switch MSG108

File:MSG108 DC Output AC Input Industrial Ethernet Swit...
