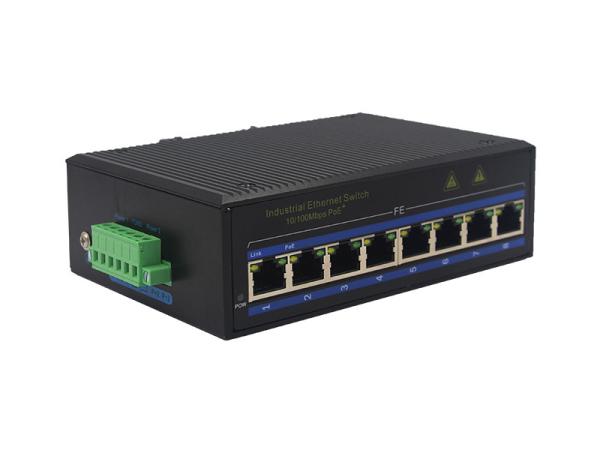

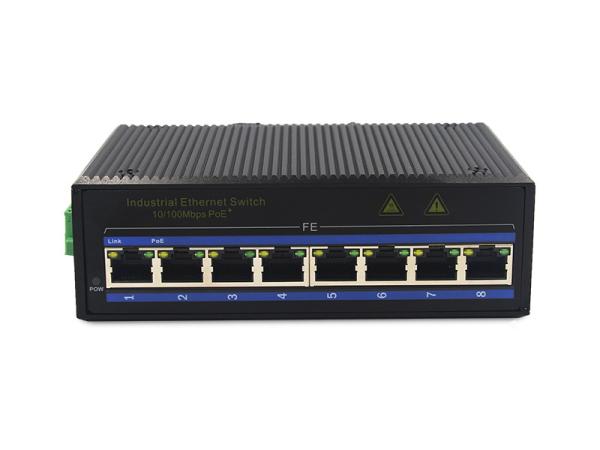

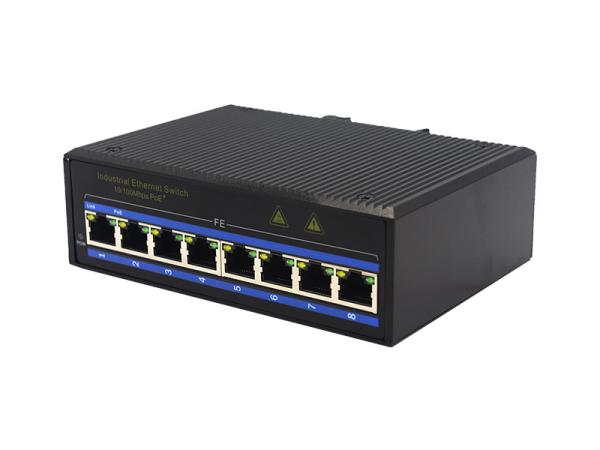

3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch
Specifications
Brand Name :
MESTECHS
Model Number :
MSE1008
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
45 work days
Packaging Details :
Common package
Ports :
8 ports
Input Power :
DC12-52V
Working temperature :
-10～85 °C
Size :
143 x 101x 44mm
Description

MSE1008:8 ports 100M Industrial Ethernet Switch

Introduction

MSE1008 100M industrial ethernet switch support 8 10base-T / 100base-TX which comply with FCC, CE, ROHS standards.The MSE1008 switch has a working temperature of -40 ° C ~ 85 ° C, with super ruggedization to adapt to various harsh environments, and can be conveniently placed in a compact control box.The installation characteristics of guide rail, wide temperature operation, enclosure and LED indicator light with IP40 protection grade make MSE1008 a plug and play industrial-grade equipment, providing reliable and convenient solutions for users' Ethernet equipment networking.

Features

● High quality optoelectronic integration module to provide great optical and electrical characteristics
● Reliable data transmission and long working life
● Supports full duplex or half duplex modes with automatic negotiation capabilities
● The network interface supports automatic cross recognition
● With store and forward mechanism, support a variety of protocols
● In line with industrial operation standards, the average trouble-free work of more than 300,000 hours
● Power supply: DC 12-52V provides reverse connection protection
● Lightning surge protection (power supply) : 5000A(8/20 s)

Specification

Ports

8*RJ45 ports:
10/100BASET (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Network protocol

IEEE802.310BASE-TIEEE802.3i
10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;
IEEE802.3af, IEEE802.3at

Applicable standards

EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
IEC(EN)61000-4-2(ESD) : ±8kV contact discharge,±15kVair discharge
IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)
IEC(EN)61000-4-4(EFT) : power:±4kV ; data cable: ±2kV
IEC(EN)61000-4-5(Surge) : power: ±4kV CM/±2kV DM ; data cable: ±2kV
IEC(EN)61000-4-6(radio frequency transmission) : 3V(10kHz～150kHz),10V(150kHz～80MHz)
IEC(EN)61000-4-16(Common-mode transmission) : 30V cont. 300V,1s
IEC(EN )61000-4-8
Shock :IEC 60068-2-27
Freefall :IEC 60068-2-32
Vibration :IEC 60068-2-6

Power

input:DC12-52V(Double power redundancy backup)
Access terminal: Phoenix terminal
Support built-in overstream 4.0A protection
Support backconnect protection
power dissipation < 3W

certificationCE,FCC,RohS,ISO9001:2008
Working environment

Working temperature :-40～85 °C(-40～185 °F)
Storage temperature :-40～85 °C(-40～185 °F)
Relative humidity :5%～95%( NON-condensation)

Size143 x 101x 44mm
Weight0.64Kg
Mean failover time300,000 hours
Protection gradeIP40


Dimension

3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch

Application

3W MSE1008 8 Ports 10Base-T Industrial Ethernet Switch

Order Information

8 ports 100M Industrial Ethernet Switch MSE1008
