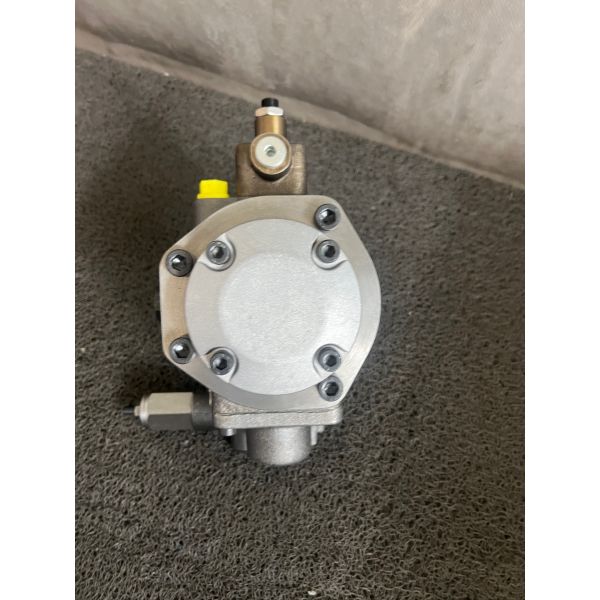

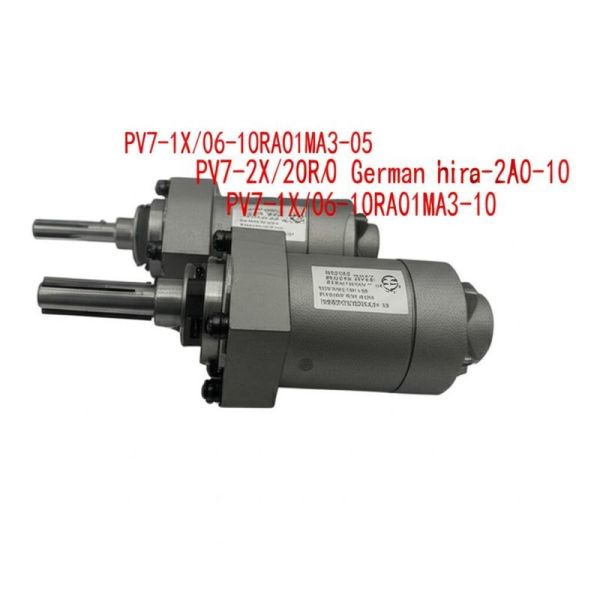

PV7-1X/06-10RA01MA3-05 PV7-2X/20-25RA01MA0-10 PV7-1X/06-10RA01MA3-10 German Rexroth imported hydraulic oil pump blade pump in stock
PV7-1X/06-10RA01MA3-05 PV7-2X/20-25RA01MA0-10 PV7-1X/06-10RA01MA3-10 German Rexroth imported hydraulic oil pump blade pump in stock
PV7-1X/06-10RA01MA3-05 PV7-2X/20-25RA01MA0-10 PV7-1X/06-10RA01MA3-10 German Rexroth imported hydraulic oil pump blade pump in stock
PV7-1X/06-10RA01MA3-05 PV7-2X/20-25RA01MA0-10 PV7-1X/06-10RA01MA3-10 German Rexroth imported hydraulic oil pump blade pump in stock
Specifications
Brand Name :
Rexroth
Model Number :
PV7-1X/06-10RA01MA3-05 PV7-2X/20-25RA01MA0-10 PV7-1X/06-10RA01MA3-10
Certification :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/A,D/P,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
What is the maximum peak pressure of the direct-acting PV7 series? :
120 bar (short-term overload ≤5s only)
What is the maximum peak pressure of the pilot-operated PV7 series? :
200 bar (short-term overload ≤5s only)
What is the speed range of the direct-acting PV7 series? :
600–3600 rpm (higher speed for smaller displacement models)
What is the maximum flow rate of the direct-acting PV7 series at 1800 rpm? :
36 l/min (calculated at rated displacement)
What is the maximum flow rate of the pilot-operated PV7 series at 1800 rpm? :
270 l/min (calculated at rated displacement)
What is the volumetric efficiency of the direct-acting PV7 series under rated conditions? :
≥90% (at 160 bar, 1800 rpm, ISO VG 46 oil)
Description

PV7-1X/06-10RA01MA3-05
PV7-2X/20-25RA01MA0-10
PV7-1X/06-10RA01MA3-10 German Rexroth imported hydraulic oil pump blade pump in stock

Parameter Specification
Model Series PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution 10–25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800–3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10–1000 mm²/s (operation); 2–1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2–1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)
Seal Type Viton® or NBR shaft seals (resistant to high temperature and oil)
Inlet/Outlet Port BSPP, BSPT or SAE thread (port size matches displacement)
Weight 8–15 kg (varies by model and configuration)

PV7-1X/06-10RA01MA3-05 PV7-2X/20-25RA01MA0-10 PV7-1X/06-10RA01MA3-10 German Rexroth imported hydraulic oil pump blade pump in stock

PV7-2X/20-25RE01MA3-05
PV7-1X/06-10RG01MA0-10
PV7-2X/20-25RE01MA3-10
PV7-1X/06-10RG01MA3-10
PV7-1X/06-14RE01MA3-07
PV7-1X/06-14RA01MA0-04
PV7-1X/06-14RG01MA0-07
PV7-1X/06-14RA01MA0-07
PV7-2X/20-20RA01MA0-05
PV7-1X/06-14RA01MA3-04
PV7-2X/20-20RA01MA0-10
PV7-1X/06-14RA01MA3-07
PV7-2X/20-20RA01MA3-05
PV7-1X/06-14RE01MA0-04
PV7-2X/20-20RA01MA3-10
PV7-1X/06-14RE01MA0-07
PV7-2X/20-20RE01KA0-10
PV7-1X/06-14RE01MA3-04
PV7-1X/06-10RA01MA0-05-P50
PV7-2X/20-20RA01MA0-10-P85
PV7-1X/06-10RA01MA0-10-P50
PV7-2X/20-25RA01MA0-05-P32
PV7-1X/06-14RA01MA0-07-P50
PV7-2X/20-25RA01MA0-05-P50
PV7-1X/06-14RA01MA0-07-P65
PV7-1X/06-14RA01MA0-07-P70
PV7-2X/20-20RA01MA0-10-P65
PV7-2X/20-20RA01MA0-05-P25
PV7-2X/20-20RA01MA0-05-P50
PV7-1X/06-14RA01MA0-10-A473
PV7-1X/06-10RA01MA0-10-P100
PV7-1X/06-14RA01MA0-10-A492
PV7-2X/20-20RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-05-A480
PV7-2X/20-20RA01MA0-10-A480
PV7-1X/06-10RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-10-P100
PV7-2X/20-25RA01MA0-05-P24Q30
PV7-1X/06-10RA01MA0-05-P35Q11
PV7-2X/20-25RA01MA0-05-P30Q25
PV7-1X/06-10RA01MA0-05-P40Q11
PV7-2X/20-25RA01MA0-05-P30Q36
PV7-1X/06-10RA01MA0-05-P50Q15
PV7-2X/20-25RA01MA0-05-P45Q35
PV7-1X/06-10RA01MA0-10-P55Q12
PV7-2X/20-25RA01MA0-05-P45Q36
PV7-1X/06-10RA01MA0-10-P65Q12
PV7-2X/20-25RA01MA0-10-P63Q35
PV7-1X/06-10RA01MA0-10-P70Q12

FAQ:

1. What thread standards are available for PV7 pump ports?
BSPP, BSPT, or SAE threads (port size matches displacement).

2. How to check for leaks in PV7 pump pipe connections?
Inject 0.5-1MPa compressed air into the system and apply soapy water to seals; check for bubbles.

3. Can the PV7 pump’s rotation direction be reversed?
No, reverse rotation causes blade jamming and seal damage; verify with the nameplate arrow before startup.

4. How to verify the motor rotation direction for the PV7 pump?
Use "jogging" (1-2 seconds of power supply) to observe rotation; adjust wiring if reversed.

5. What is the requirement for the PV7 pump’s drain line?
The case drain line must be routed below the tank liquid level to ensure smooth oil return; do not reuse drain oil for suction.
