PV7-2X/20-20RE01MA0-05 PV7-1X/06-10RA01KA0-05 PV7-2X/20-20RE01MA0-10 Rexroth Germany original blade pump column pin hydraulic pump pressure 21MPA
PV7-2X/20-20RE01MA0-05 PV7-1X/06-10RA01KA0-05 PV7-2X/20-20RE01MA0-10 Rexroth Germany original blade pump column pin hydraulic pump pressure 21MPA
PV7-2X/20-20RE01MA0-05 PV7-1X/06-10RA01KA0-05 PV7-2X/20-20RE01MA0-10 Rexroth Germany original blade pump column pin hydraulic pump pressure 21MPA
PV7-2X/20-20RE01MA0-05 PV7-1X/06-10RA01KA0-05 PV7-2X/20-20RE01MA0-10 Rexroth Germany original blade pump column pin hydraulic pump pressure 21MPA
Specifications
Brand Name :
Rexroth
Model Number :
PV7-2X/20-20RE01MA0-05 PV7-1X/06-10RA01KA0-05 PV7-2X/20-20RE01MA0-10
Certifiion :
ISO
Place of Origin :
Germany
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Parameter :
Specifiion
Model Series :
PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution :
10–25 cm³/rev (varies by specific model)
Maximum Operating Pressure :
210 bar (continuous), 250 bar (peak)
Maximum Speed :
1800–3600 rpm (depends on displacement and fluid viscosity)
Description

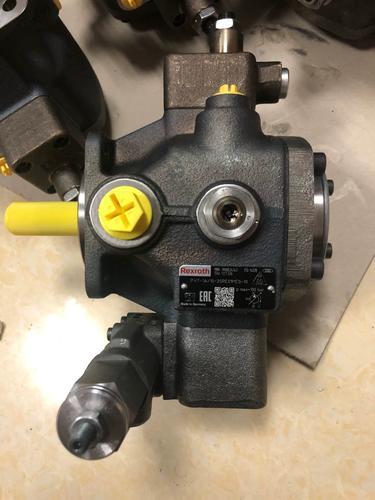

Rexroth PV7 Series Vane Pumps
PV7-2X/20-20RE01MA0-05
PV7-1X/06-10RA01KA0-05
PV7-2X/20-20RE01MA0-10
Product Overview

Rexroth Germany original vane pump with column pin design, operating pressure up to 21 MPa. Designed for industrial hydraulic systems requiring reliable medium-pressure performance.

Technical Specifiions
Feature Details
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)
Seal Type Viton® or NBR shaft seals (resistant to high temperature and oil)
Inlet/Outlet Port BSPP, BSPT or SAE thread (port size matches displacement)
Weight 8-15 kg (varies by model and configuration)
Product Reference
PV7-2X/20-20RE01MA0-05 PV7-1X/06-10RA01KA0-05 PV7-2X/20-20RE01MA0-10 Rexroth Germany original blade pump column pin hydraulic pump pressure 21MPA
Available Models
PV7-2X/20-20RE01MA0-05
PV7-1X/06-10RA01KA0-05
PV7-2X/20-20RE01MA0-10
PV7-1X/06-10RA01KA0-10
PV7-2X/20-20RE01MA3-10
PV7-1X/06-10RA01MA0-05
PV7-2X/20-25RA01KA0-10
PV7-1X/06-10RA01MA0-10
PV7-2X/20-25RA01MA0-05
PV7-1X/06-10RA01MA3-05
PV7-2X/20-25RA01MA0-10
PV7-1X/06-10RA01MA3-10
PV7-2X/20-25RA01MA3-05
PV7-1X/06-10RE01MA0-05
PV7-2X/20-25RA01MA3-10
PV7-1X/06-10RE01MA0-10
PV7-2X/20-25RE01MA0-05
PV7-1X/06-10RE01MA3-10
PV7-2X/20-25RE01MA0-10
PV7-1X/06-10RG01MA0-05
PV7-2X/20-25RE01MA3-05
PV7-1X/06-10RG01MA0-10
PV7-2X/20-25RE01MA3-10
PV7-1X/06-10RG01MA3-10
PV7-1X/06-14RE01MA3-07
PV7-1X/06-14RA01MA0-04
PV7-1X/06-14RG01MA0-07
PV7-1X/06-14RA01MA0-07
PV7-2X/20-20RA01MA0-05
PV7-1X/06-14RA01MA3-04
PV7-2X/20-20RA01MA0-10
PV7-1X/06-14RA01MA3-07
PV7-2X/20-20RA01MA3-05
PV7-1X/06-14RE01MA0-04
PV7-2X/20-20RA01MA3-10
PV7-1X/06-14RE01MA0-07
PV7-2X/20-20RE01KA0-10
PV7-1X/06-14RE01MA3-04
Special Configuration Models
PV7-1X/06-10RA01MA0-05-P50
PV7-2X/20-20RA01MA0-10-P85
PV7-1X/06-10RA01MA0-10-P50
PV7-2X/20-25RA01MA0-05-P32
PV7-1X/06-14RA01MA0-07-P50
PV7-2X/20-25RA01MA0-05-P50
PV7-1X/06-14RA01MA0-07-P65
PV7-1X/06-14RA01MA0-07-P70
PV7-2X/20-20RA01MA0-10-P65
PV7-2X/20-20RA01MA0-05-P25
PV7-2X/20-20RA01MA0-05-P50
PV7-1X/06-14RA01MA0-10-A473
PV7-1X/06-10RA01MA0-10-P100
PV7-1X/06-14RA01MA0-10-A492
Frequently Asked Questions
What is the core appliion scope of the PV7 series vane pumps?
They are mainly used in medium-low pressure industrial hydraulic systems, such as machine tools, plastic machinery, packaging equipment, agricultural machinery, and hydraulic workstations.
What does the "PV7" in the model number stand for?
"PV" denotes the vane pump series, and "7" represents the specific product platform code of Rexroth.
How to interpret the model code PV7-1X/10-14RE01MC0-16?
  • 1X: Series generation (10-19 series)
  • 10-14: Displacement range (10-14 cm³/rev)
  • RE: Control type and structure
  • 01: Connection specifiion
  • MC: Seal material (NBR rubber for mineral oil)
  • 0-16: Additional configuration code
What are the main control types of the PV7 series?
Key types include direct-acting (A series) and pilot-operated (C/D/N/W series) variable control.
What is the maximum operating pressure of the PV7 series?
Up to 160 bar for standard models; continuous operating pressure is typically 210 bar (varies by specific model).
