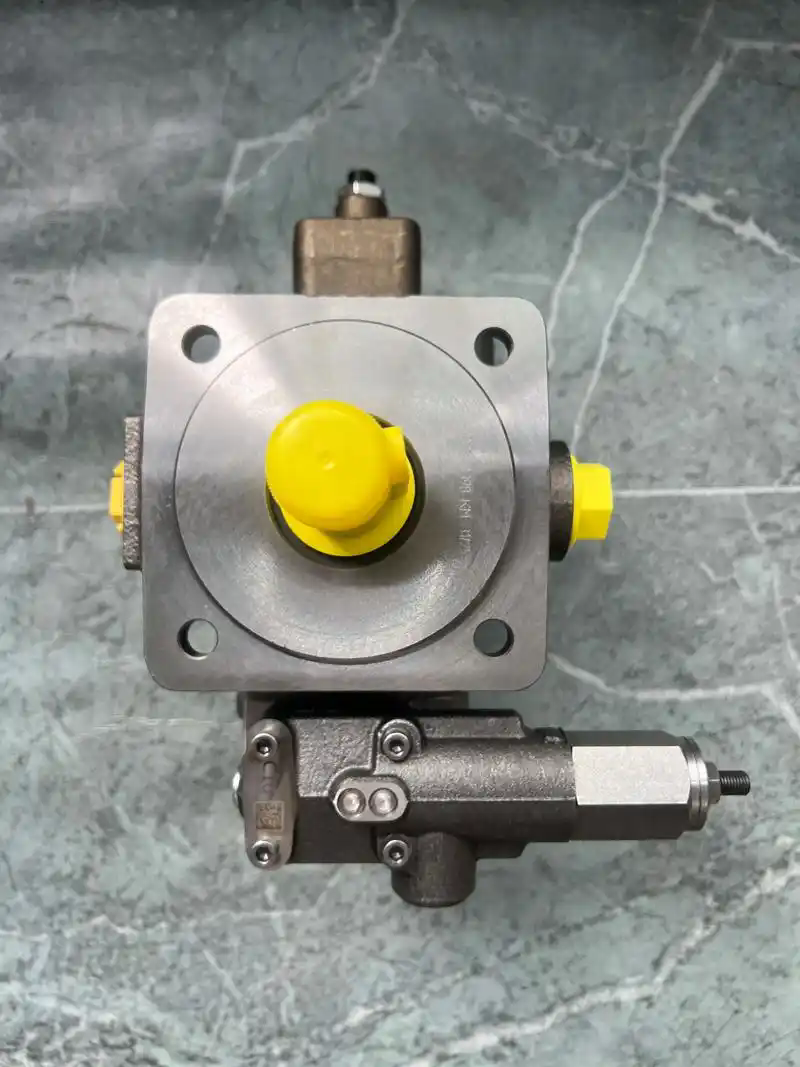

PV7-1X/06-10RG01MA0-10 PV7-2X/20-25RE01MA3-10 PV7-1X/06-10RG01MA3-10 German PV7 series Rexroth hydraulic oil pump in stock hydraulic pump
PV7-1X/06-10RG01MA0-10 PV7-2X/20-25RE01MA3-10 PV7-1X/06-10RG01MA3-10 German PV7 series Rexroth hydraulic oil pump in stock hydraulic pump
PV7-1X/06-10RG01MA0-10 PV7-2X/20-25RE01MA3-10 PV7-1X/06-10RG01MA3-10 German PV7 series Rexroth hydraulic oil pump in stock hydraulic pump
PV7-1X/06-10RG01MA0-10 PV7-2X/20-25RE01MA3-10 PV7-1X/06-10RG01MA3-10 German PV7 series Rexroth hydraulic oil pump in stock hydraulic pump
Specifications
Brand Name :
Rexroth
Model Number :
PV7-1X/06-10RG01MA0-10 PV7-2X/20-25RE01MA3-10 PV7-1X/06-10RG01MA3-10
Certification :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
What is the maximum flow rate of the direct-acting PV7 series at 1800 rpm? :
36 l/min (calculated at rated displacement)
What is the maximum flow rate of the pilot-operated PV7 series at 1800 rpm? :
270 l/min (calculated at rated displacement)
What is the volumetric efficiency of the direct-acting PV7 series under rated conditions? :
≥90% (at 160 bar, 1800 rpm, ISO VG 46 oil)
What is the volumetric efficiency of the pilot-operated PV7 series under rated conditions? :
≥92% (at 160 bar, 1800 rpm, ISO VG 46 oil)
What is the total efficiency of the direct-acting PV7 series under nominal operation? :
≥80% (includes mechanical & volumetric efficiency)
Description

PV7-1X/06-10RG01MA0-10
PV7-2X/20-25RE01MA3-10
PV7-1X/06-10RG01MA3-10 German PV7 series Rexroth hydraulic oil pump in stock hydraulic pump

Parameter Specification
Model Series PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution 10–25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800–3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10–1000 mm²/s (operation); 2–1500 mm²/s (start-up)

PV7-1X/06-10RG01MA0-10 PV7-2X/20-25RE01MA3-10 PV7-1X/06-10RG01MA3-10 German PV7 series Rexroth hydraulic oil pump in stock hydraulic pump

PV7-1X/06-14RA01MA0-07-P65
PV7-1X/06-14RA01MA0-07-P70
PV7-2X/20-20RA01MA0-10-P65
PV7-2X/20-20RA01MA0-05-P25
PV7-2X/20-20RA01MA0-05-P50
PV7-1X/06-14RA01MA0-10-A473
PV7-1X/06-10RA01MA0-10-P100
PV7-1X/06-14RA01MA0-10-A492
PV7-2X/20-20RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-05-A480
PV7-2X/20-20RA01MA0-10-A480
PV7-1X/06-10RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-10-P100
PV7-2X/20-25RA01MA0-05-P24Q30
PV7-1X/06-10RA01MA0-05-P35Q11
PV7-2X/20-25RA01MA0-05-P30Q25
PV7-1X/06-10RA01MA0-05-P40Q11
PV7-2X/20-25RA01MA0-05-P30Q36
PV7-1X/06-10RA01MA0-05-P50Q15
PV7-2X/20-25RA01MA0-05-P45Q35
PV7-1X/06-10RA01MA0-10-P55Q12
PV7-2X/20-25RA01MA0-05-P45Q36
PV7-1X/06-10RA01MA0-10-P65Q12
PV7-2X/20-25RA01MA0-10-P63Q35
PV7-1X/06-10RA01MA0-10-P70Q12
PV7-1X/06-10RA01MA0-05-P15Q08
PV7-1X/06-14RA01MA0-07-P70Q18
PV7-1X/06-10RA01MA0-05-P25Q09
PV7-1X/06-14RA01MA0-04-P30Q19
PV7-1X/06-10RA01MA0-05-P25Q11
PV7-1X/06-10RA01MA0-10-P100Q10
PV7-1X/06-10RA01MA0-05-P35Q09
PV7-1X/63-71RE07MC3-16
PV7-1X/100-118RE07MD3-16
PV7-1X/63-71RE07MW0-16WG
PV7-1X/10-20RE01MD5-10
PV7-1X/25-30RE01MW0-16WG
PV7-1X/40-45RE37MW5-16WG
PV7-1X/100-118RE07MC5-16WG
PV7-1X/63-94RE07MC7-08WG
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
PV7-1X/100-118RE07MC0-16
PV7-1X/63-71RE07MD0-16
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36

FAQ:

1. Should the PV7 pump be pre-filled with oil before commissioning?
Yes, fill the housing through the drain port to prevent dry running and component wear.

2. How to bleed the PV7 pump system?
Loosen the vent screw, manually rotate the coupling or jog the motor, and stop when bubble-free oil flows out.

3. What is the recommended no-load running time for PV7 pumps?
5-10 minutes to check vibration, leakage, and temperature rise.

4. How to adjust the pressure of a direct-acting PV7 pump?

• Clockwise rotation of the adjusting screw: Increase pressure;

• Counterclockwise rotation: Decrease pressure.

5. How to adjust the flow rate of the PV7 pump?

• Clockwise rotation of the flow adjusting screw: Decrease flow;

• Counterclockwise rotation: Increase flow.
