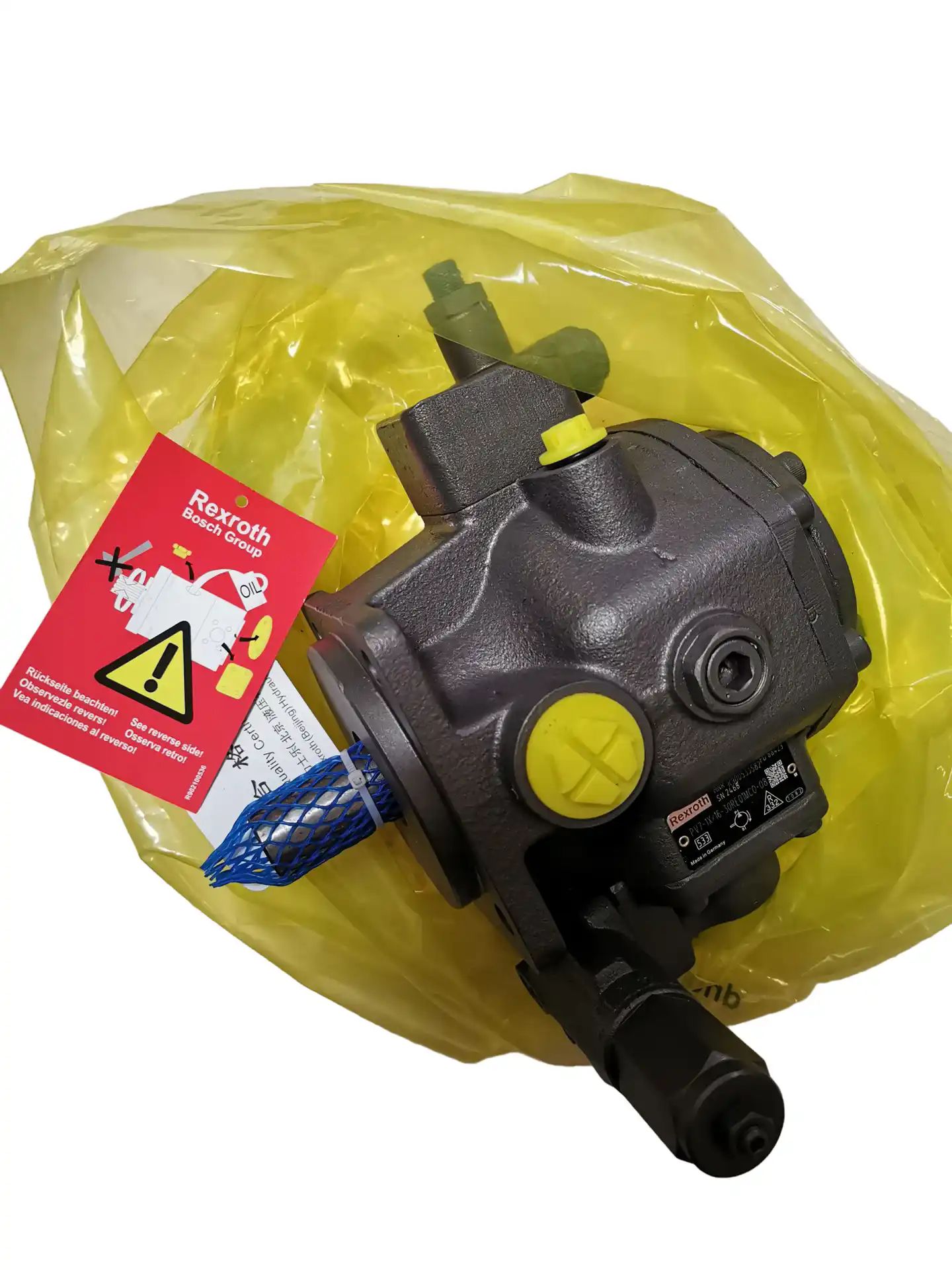

PV7-1X/06-14RA01MA0-07 PV7-2X/20-20RA01MA0-05 PV7-1X/06-14RA01MA3-04 Blade pump German Rexroth PV7 series original imported hydraulic oil pump
PV7-1X/06-14RA01MA0-07 PV7-2X/20-20RA01MA0-05 PV7-1X/06-14RA01MA3-04 Blade pump German Rexroth PV7 series original imported hydraulic oil pump
PV7-1X/06-14RA01MA0-07 PV7-2X/20-20RA01MA0-05 PV7-1X/06-14RA01MA3-04 Blade pump German Rexroth PV7 series original imported hydraulic oil pump
PV7-1X/06-14RA01MA0-07 PV7-2X/20-20RA01MA0-05 PV7-1X/06-14RA01MA3-04 Blade pump German Rexroth PV7 series original imported hydraulic oil pump
Specifications
Brand Name :
Rexroth
Model Number :
PV7-1X/06-14RA01MA0-07 PV7-2X/20-20RA01MA0-05 PV7-1X/06-14RA01MA3-04
Certification :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
What seal materials are available for the PV7 series? :
NBR (standard, for mineral oil) and FKM (optional, for synthetic oil)
What is the weight range of the direct-acting PV7 series? :
8–12 kg (depends on displacement)
What is the weight range of the pilot-operated PV7 series? :
10–35 kg (depends on displacement and control type)
What is the control type of the PV7-A series? :
Direct-acting pressure compensation
What is the control type of the PV7-C/D/N/W series? :
Pilot-operated pressure/flow control
What is the pressure rise response time of the direct-acting PV7 series? :
40–60 ms
What is the housing material of the PV7 series? :
GG25 cast iron (high strength and vibration resistance)
Description

PV7-1X/06-14RA01MA0-07
PV7-2X/20-20RA01MA0-05
PV7-1X/06-14RA01MA3-04 Blade pump German Rexroth PV7 series original imported hydraulic oil pump

Parameter Specification
Model Series PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution 10–25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800–3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10–1000 mm²/s (operation); 2–1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2–1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)

PV7-1X/06-14RA01MA0-07 PV7-2X/20-20RA01MA0-05 PV7-1X/06-14RA01MA3-04 Blade pump German Rexroth PV7 series original imported hydraulic oil pump

PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
PV7-1X/40-45RE37MW5-16WH
PV7-1X/10-14RE01MC0-16-P45
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
PV7-1X/100-118RE07MC7-16
PV7-1X/10-14RE01MC0-16-P90
PV7-1X/16-20RE01MC7-16WH
PV7-1X/40-45RE37MD0-16-C3.1
PV7-1X/40-45RE37MW0-16WG
PV7-1X/40-45RE37KD0-16
PV7-1X/40-45RE37MC0-16-P80
PV7-1X/16-30RE01MC5-08
PV7-1X/100-150RE07KD0-08

FAQ:

1. Are PV7 pumps available in fixed or variable displacement?
Primarily variable displacement vane pumps, featuring pressure-compensated flow regulation.

2. What is the maximum flow rate of the PV7 series?
Up to 270 l/min, depending on displacement and operating speed.

3. Can PV7 pumps be combined into multiple pump units?
Yes, standard single PV7 pumps can be combined with internal gear pumps, axial piston pumps, etc., to form multi-pump assemblies.

4. What are the typical model numbers of the PV7 series?
Common models include PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, and PV7-A0/06-14RA01MA0-07.

Installation & Mounting

5. What is the required flatness of the PV7 pump mounting surface?
The flatness should be ≤0.1mm/m; use a straightedge and feeler gauge for inspection.
