PV7-2X/20-25RA01MA3-05 PV7-1X/06-10RE01MA0-05 PV7-2X/20-25RA01MA3-10 PV7 full series Rexroth German imported blade pump hydraulic oil pump
PV7-2X/20-25RA01MA3-05 PV7-1X/06-10RE01MA0-05 PV7-2X/20-25RA01MA3-10 PV7 full series Rexroth German imported blade pump hydraulic oil pump
PV7-2X/20-25RA01MA3-05 PV7-1X/06-10RE01MA0-05 PV7-2X/20-25RA01MA3-10 PV7 full series Rexroth German imported blade pump hydraulic oil pump
PV7-2X/20-25RA01MA3-05 PV7-1X/06-10RE01MA0-05 PV7-2X/20-25RA01MA3-10 PV7 full series Rexroth German imported blade pump hydraulic oil pump
Specifications
Brand Name :
Rexroth
Model Number :
PV7-2X/20-25RA01MA3-05 PV7-1X/06-10RE01MA0-05 PV7-2X/20-25RA01MA3-10
Certifiion :
ISO
Place of Origin :
German
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
What is the case drain flow range of the pilot-operated PV7 series at rated pressure? :
2.0–5.0 l/min (varies with displacement and pressure)
What is the case drain flow range of the direct-acting PV7 series at rated pressure? :
1.5–2.5 l/min (varies with displacement and pressure)
What is the service life of the PV7 series under normal working conditions? :
8000–10000 operating hours (depends on oil cleanliness and maintenance)
What is the material of the PV7 series rotor and stator? :
Wear-resistant powder metallurgy alloy (self-lubriing and anti-seizure)
What is the pressure rise response time of the pilot-operated PV7 series? :
40–60 ms
What is the control type of the PV7-C/D/N/W series? :
Pilot-operated pressure/flow control
Description

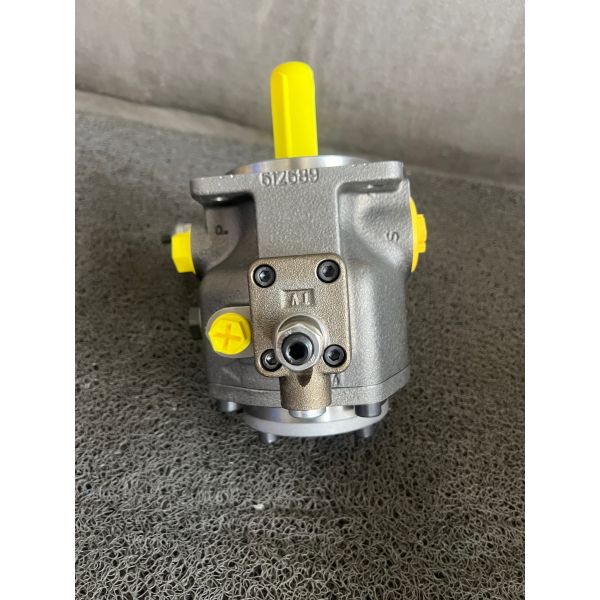

PV7 Full Series Rexroth German Imported Blade Pump Hydraulic Oil Pump
PV7-2X/20-25RA01MA3-05
PV7-1X/06-10RE01MA0-05
PV7-2X/20-25RA01MA3-10
Product Overview

PV7 full series German imported blade pump hydraulic oil pump designed for industrial appliions requiring reliable hydraulic power transmission.

PV7-2X/20-25RA01MA3-05 PV7-1X/06-10RE01MA0-05 PV7-2X/20-25RA01MA3-10 PV7 full series Rexroth German imported blade pump hydraulic oil pump
Technical Specifiions
Feature Details
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)
Seal Type Viton® or NBR shaft seals (resistant to high temperature and oil)
Inlet/Outlet Port BSPP, BSPT or SAE thread (port size matches displacement)
Weight 8-15 kg (varies by model and configuration)
Available Models
PV7-2X/20-25RE01MA0-10, PV7-1X/06-10RG01MA0-05, PV7-2X/20-25RE01MA3-05, PV7-1X/06-10RG01MA0-10, PV7-2X/20-25RE01MA3-10, PV7-1X/06-10RG01MA3-10, PV7-1X/06-14RE01MA3-07, PV7-1X/06-14RA01MA0-04, PV7-1X/06-14RG01MA0-07, PV7-1X/06-14RA01MA0-07, PV7-2X/20-20RA01MA0-05, PV7-1X/06-14RA01MA3-04, PV7-2X/20-20RA01MA0-10, PV7-1X/06-14RA01MA3-07, PV7-2X/20-20RA01MA3-05, PV7-1X/06-14RE01MA0-04, PV7-2X/20-20RA01MA3-10, PV7-1X/06-14RE01MA0-07, PV7-2X/20-20RE01KA0-10, PV7-1X/06-14RE01MA3-04, PV7-1X/06-10RA01MA0-05-P50, PV7-2X/20-20RA01MA0-10-P85, PV7-1X/06-10RA01MA0-10-P50, PV7-2X/20-25RA01MA0-05-P32, PV7-1X/06-14RA01MA0-07-P50, PV7-2X/20-25RA01MA0-05-P50, PV7-1X/06-14RA01MA0-07-P65, PV7-1X/06-14RA01MA0-07-P70, PV7-2X/20-20RA01MA0-10-P65, PV7-2X/20-20RA01MA0-05-P25, PV7-2X/20-20RA01MA0-05-P50, PV7-1X/06-14RA01MA0-10-A473, PV7-1X/06-10RA01MA0-10-P100, PV7-1X/06-14RA01MA0-10-A492, PV7-2X/20-20RA01MA0-10-C3.1, PV7-2X/20-20RA01MA0-05-A480, PV7-2X/20-20RA01MA0-10-A480, PV7-1X/06-10RA01MA0-10-C3.1, PV7-2X/20-20RA01MA0-10-P100, PV7-2X/20-25RA01MA0-05-P24Q30, PV7-1X/06-10RA01MA0-05-P35Q11, PV7-2X/20-25RA01MA0-05-P30Q25, PV7-1X/06-10RA01MA0-05-P40Q11, PV7-2X/20-25RA01MA0-05-P30Q36, PV7-1X/06-10RA01MA0-05-P50Q15, PV7-2X/20-25RA01MA0-05-P45Q35, PV7-1X/06-10RA01MA0-10-P55Q12, PV7-2X/20-25RA01MA0-05-P45Q36, PV7-1X/06-10RA01MA0-10-P65Q12, PV7-2X/20-25RA01MA0-10-P63Q35, PV7-1X/06-10RA01MA0-10-P70Q12, PV7-1X/06-10RA01MA0-05-P15Q08, PV7-1X/06-14RA01MA0-07-P70Q18, PV7-1X/06-10RA01MA0-05-P25Q09, PV7-1X/06-14RA01MA0-04-P30Q19, PV7-1X/06-10RA01MA0-05-P25Q11, PV7-1X/06-10RA01MA0-10-P100Q10, PV7-1X/06-10RA01MA0-05-P35Q09, PV7-1X/63-71RE07MC3-16, PV7-1X/100-118RE07MD3-16, PV7-1X/63-71RE07MW0-16WG, PV7-1X/10-20RE01MD5-10, PV7-1X/25-30RE01MW0-16WG, PV7-1X/40-45RE37MW5-16WG, PV7-1X/100-118RE07MC5-16WG, PV7-1X/63-94RE07MC7-08WG, PV7-1X/40-45RE37MW6-16WH, PV7-1X/100-118RE07MD6-16, PV7-1X/40-45RE37MC5-16WG, PV7-1X/100-118RE07MC0-16, PV7-1X/63-71RE07MD0-16, PV7-1X/40-45RE37MC0-16-P90, PV7-1X/25-30RE01MC0-16-P100Q38, PV7-1X/100-150RE07MC0-08-A464, PV7-1X/100-118RE07MD0-16, PV7-1X/10-14RE01MN0-16, PV7-1X/40-45RE37MC5-16, PV7-1X/100-118RE07MC5-16, PV7-1X/25-30RE01KC3-16, PV7-1X/10-20RE01MC5-10WG, PV7-1X/25-30RE01MW0-16, PV7-1X/16-20RE01MD3-16, PV7-1X/16-20RE01MC0-16-P110, PV7-1X/40-45RE37KD0-16-C3.1, PV7-1X/63-71RE07MC5-16WH, PV7-1X/16-30RE01KC0-08, PV7-1X/10-14RE01MD5-16, PV7-1X/63-71RE07MC6-16
Frequently Asked Questions
What hydraulic oil is recommended for the PV7 series?
Mineral oil: ISO VG 32/46/68 (HLP grade, DIN 51524); Synthetic oil: HETG/HEES (compatible with seal materials).
What is the allowable oil viscosity range for PV7 pumps?
Operating viscosity: 10-1000 mm²/s; startup viscosity: 2-1500 mm²/s (optimal: 16-160 mm²/s).
What is the recommended oil cleanliness level for PV7 pumps?
ISO 4406 Class 18/15/12 (NAS 6 grade or higher) to prevent component wear.
Can different types of hydraulic oil be mixed for PV7 pumps?
No, mixing oils degrades lubriion performance and may damage seals.
What is the operating temperature range of the hydraulic oil for PV7 pumps?
-20℃ to +80℃ (operation); -40℃ to +90℃ (storage); recommended operating temperature: 30-55℃.
