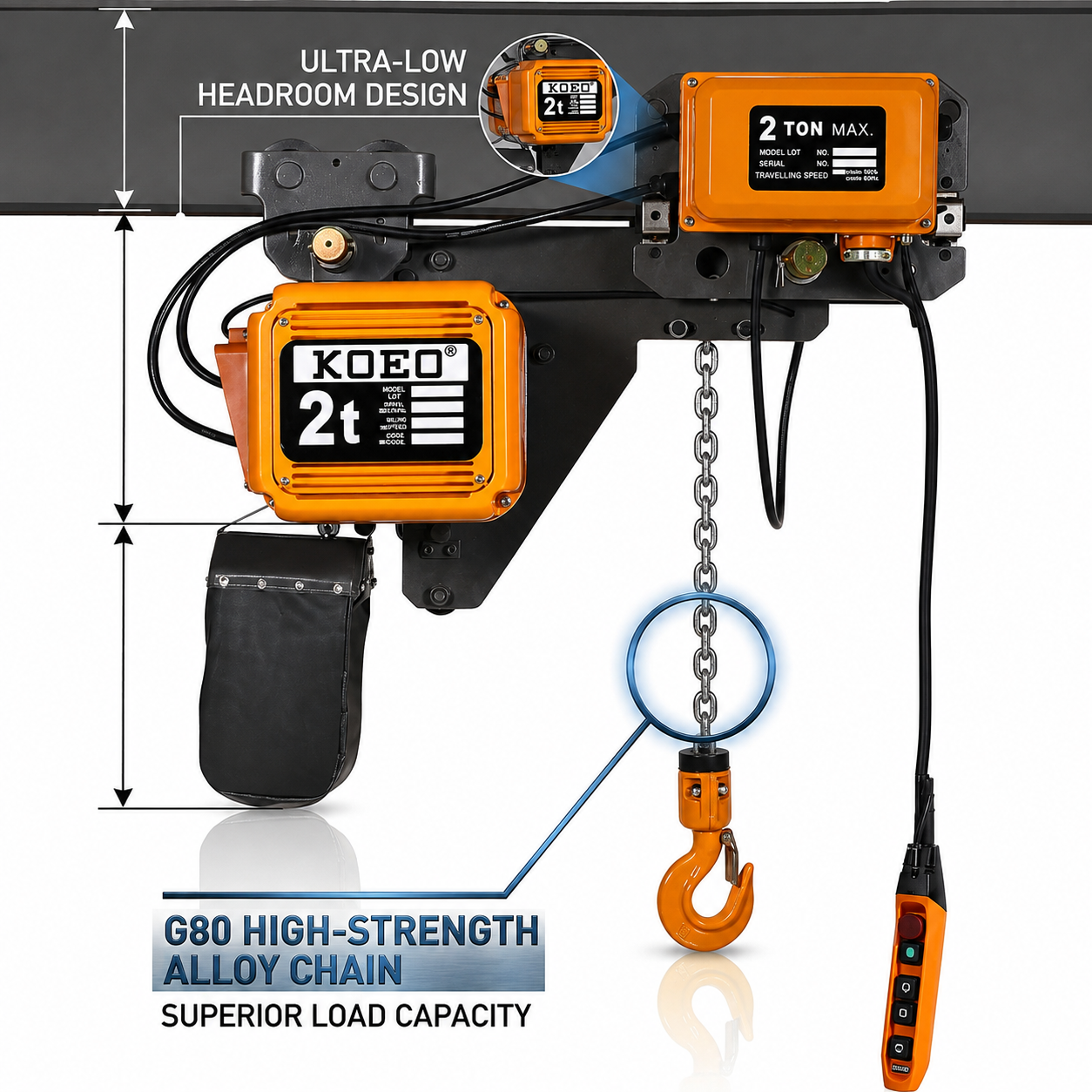

Custom Electrical Chain Hoists 2 Ton Ultra Low Headroom Hoist 1.5KW
Custom Electrical Chain Hoists 2 Ton Ultra Low Headroom Hoist 1.5KW
Specifications
Model Number :
EQ
Lifting weight :
2T
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Work duty :
M5
Payment Terms :
L/C,T/T
Protection level :
IP55
Price :
USD,250-500/SET
Insulation class :
F
Supply Ability :
200 Sets per Month
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Brand Name :
KOEO
Name :
Electrical Chain Hoists
Certification :
CE, ISO 9001:2015
Lifting speed :
7.0m/min
Place of Origin :
Zhejiang, China
Power :
3.0KW
Description
Custom 2 Ton Double Chain Super-low Head Room Electric Chain Hoist

The EQ Series electric chain hoist is a robust and reliable solution designed for heavy-duty lifting tasks ranging from 1 to 25 tons. Engineered for performance, it ensures seamless operation in demanding industrial environments. Custom Electric Chain Hoist

Key Features & Advantages
  • Durable Construction: High-strength die-cast aluminum housing for long-term reliability.
  • Precision Performance: Advanced motor engineering ensures smooth and consistent operation.
  • Enhanced Safety: Integrated with high-performance safety brakes for secure load handling.

Low Head Room Electric Chain Hoist Parameters
Model Name Lifting weight speed power work duty Insulation class Order quantity
EQ 01-01L Low Head Room Electric Chain Hoist-Single chain 1Ton 1T 7.1m/min 1.5KW M5 F 1
EQ 02-01L Low Head Room Electric Chain Hoist-Single chain 2Ton 2T 7.0m/min 3.0KW M5 F 1
EQ 02-02L Low Head Room Electric Chain Hoist-double chain 2Ton 2T 3.6m/min 1.5KW M5 F 1
EQ 03-01L Low Head Room Electric Chain Hoist-sigle chain 3Ton 3T 7.0m/min 3.6KW M5 F 1
EQ 03-02L Low Head Room Electric Chain Hoist-D Double chain 3Ton 3T 3.5m/min 3.0KW M5 F 1
EQ 05-02L Low Head Room Electric Chain Hoist-Double chain 5Ton 5T 3.5m/min 3.6KW M5 F 1
Electric Chain Hoist Logistics information
Each product length*width*height (cm) Each piece of merchandise(kg) Delivery period
68*35*52 50 7
68*35*52 60 7
76*40*48 105 7
76*40*61 110 7
76*46*61 120 7
76*49*61 128 7

Custom Electrical Chain Hoists 2 Ton Ultra Low Headroom Hoist 1.5KW

Why choose EQ Series Electric Chain Hoist

Custom Electrical Chain Hoists 2 Ton Ultra Low Headroom Hoist 1.5KW

Feature Our Electric Chain Hoist Common Electric Chain Hoist
Working Level High Level M5 Working LevelSelf with air-cooling heat radiation.Adapt to high frequency and high-range task conditions. M3 Working Level
Safety Protection Built-in Friction Clutch & Up/Down Limit Switch• Friction clutch prevents damage to the hoist and load chain caused by overload or lifting against obstacles.• Up/Down limit switch prevents damage caused by over-travel.• Double safety mechanism formed by friction clutch and limit switch. Without friction clutchOnly equipped with Up/Down limit switch.
Protection Level IP55 ProtectionDust-proof, jetting-type body design.Suitable for harsh working environments and severe operating conditions. IP54 Protection
Body Structure One-piece Aluminum Die Casting Body• High-strength rigid housing for demanding environments.• One-piece molded structure with fewer components.• Easier maintenance and higher reliability.• High performance guaranteed by one-time molded body. Complex StructureMore components and difficult to maintain.
