1 Ton Hook Chain Hoist 380V 50Hz 3 Phase Electric Hoist KN Series
1 Ton Hook Chain Hoist 380V 50Hz 3 Phase Electric Hoist KN Series
Specifications
Supply Ability :
200 Sets per Month
Model Number :
KN01-01Y
Lifting Speed :
4 / 1 m/min
Certification :
CE, ISO 9001:2015
Motor Power :
0.8 / 0.2 kW
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Chain Diameter :
5.6 mm
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Net Weight :
35 kg
Brand Name :
KOEO
Capacity :
1 Ton
Place of Origin :
Zhejiang, China
Power Supply :
3-Phase / 380V / 50Hz
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description
1 Ton KN European Hook Electric Chain Hoist 3-Phase 380V 50Hz
KN Series European Electric Chain Hoist

High-Performance, Secure, and Heavy-Duty Industrial Lifting Solution

Product Overview

The KN Series European Electric Chain Hoist is engineered to deliver exceptional performance, uncompromising safety, and maximum durability in demanding industrial lifting applications. Featuring advanced dual-speed control, a robust M6 duty class rating, and IP55 protection, it operates with absolute reliability even in challenging environments ranging from -20°C to +40°C. With integrated overload protection, electromagnetic braking, and thermal safety systems, the KN Series ensures highly efficient, secure, and smooth material handling.

Key Features
  • Precision Dual-Speed Control: Allows seamless shifting between higher speeds for throughput and lower speeds for precision positioning.
  • Heavy-Duty Performance: Rated up to M6 duty class, designed to handle continuous high-frequency operations with ease.
  • Comprehensive Safety Systems: Equipped with standard overload protection, thermal safety, and an electromagnetic braking system for instant, secure stopping power.
  • Built for Extreme Conditions: Features IP55 ingress protection and Class G insulation (rated up to 180°C) to withstand harsh industrial settings.

The KN Series European Electric Chain Hoist, engineered to rigorous European technical and manufacturing standards, integrates high performance, superior safety, and an extended service life into a single, robust solution for all your material handling needs.

Core Performance Advantages: Efficient, Precise, and Durable
High-Performance Operation
  • Premium Powertrain: Featuring an optimized three-phase motor and precision-engineered gearbox, the hoist ensures exceptionally smooth lifting, quiet running, and highly accurate positioning.
  • Dual-Speed Control: Standard equipped with dual-speed control (Standard/Slow). It delivers high-efficiency handling at a 60% duty cycle (ED) in high-speed mode, while enabling precise, low-speed maneuvering for delicate assembly or sensitive positioning tasks.
Exceptional Service Life
  • Advanced DAT Alloy Chain: The load chain is crafted from premium DAT alloy steel, treated with advanced carburizing and nickel-plating processes. This offers vastly superior wear and corrosion resistance compared to conventional chains.
  • 20% Longer Lifespan: Combined with a high-grade gear mechanism, the hoist's theoretical service life is approximately 20% longer than conventional FEM 2m class hoists, significantly extending maintenance intervals and minimizing the Total Cost of Ownership (TCO).
Robust Load Capacity & Duty Class
  • Heavy-Duty Ratings: The series covers capacities from 0.5T to 2T with duty classes reaching up to M6, effortlessly meeting the demands of everything from general workshop use to high-frequency, heavy-duty operations.
  • Optimized Thermal Management: An upgraded cooling system consisting of a forced cooling fan and heavy-duty heat sinks significantly improves the motor's duty cycle, enabling sustained, high-intensity work without overheating.
Comprehensive Safety Protection for Total Peace of Mind

The KN Series features a built-in, "Triple-Core" multi-layer safety framework to protect your operators, loads, and equipment:

  • Mechanical Overload Clutch: A high-precision friction clutch instantly disengages when the load exceeds the rated capacity, effectively protecting the hoist body and load chain from permanent structural damage.
  • Heavy-Duty Electromagnetic Brake: Engineered with a 2.5x high safety factor, the brake delivers powerful, instant, and low-noise stops. Boasting a lifespan of up to 1 million braking cycles, it guarantees secure load suspension at any height.
  • Motor Thermal Protection: A built-in temperature sensor automatically cuts off the control circuit if the motor temperature reaches 150°C due to prolonged operation, preventing motor burnout.
  • Advanced Limit Switch Design: Utilizes highly sealed, IP55-rated micro-switches for upper and lower limits. It ensures absolute reliability in dusty, humid, or harsh environments, with a mechanical life reaching millions of cycles.
Ergonomic Design for Enhanced Usability & Low Maintenance
  • Flexible Suspension Design: The newly engineered suspension lug offers superb flexibility for easy adaptation to various I-beam profiles or stationary support structures, drastically simplifying installation.
  • Ergonomic Pendant Control: The compact remote control is shaped to fit comfortably in the operator's hand. Its advanced PCB-triggered switching mechanism reduces finger fatigue during long shifts and greatly extends the switch's own operating life.
  • Robust & Aesthetic Chain Container: The optimized, high-strength chain container is not only sturdier and more aesthetically pleasing but also provides superior protection against dust and debris ingress.
  • Compact Forged Hook: Maximizes the effective headroom and lifting height while maintaining the highest international quality and safety standards.
Conclusion

The KN Series European Electric Chain Hoist is more than just a lifting tool—it is a strategic investment in enhancing your workshop's productivity, ensuring operational safety, and optimizing long-term maintenance costs. Its modular design ensures the hoist remains in peak condition throughout its entire lifecycle with minimal effort.

Technical Specification Comparison
Feature / Parameter KN Series European Electric Chain Hoist Conventional Standard Chain Hoist
Design Standard European design standard; ultra-compact and highly modular. Traditional design; often bulkier and heavier.
Key Life Indicator Approx. 1,600 hours
(Full-load hours based on European standards)		 Approx. 1,000 hours
(Full-load hours, typical FEM 2m Class)
Duty Class Up to M6 (Engineered for high-frequency, heavy-duty cycles) Typically M4 or lower
Protection Rating IP55 (Dust-protected and resistant to low-pressure water jets) Typically IP54 or lower
Safety Features Triple-Core Protection:
1. Mechanical Overload Clutch
2. 2.5x Safety Factor Electromagnetic Brake
3. Motor Thermal Protection (150°C)		 Usually basic braking; often lacks an independent mechanical overload clutch or thermal sensors.
Chain Treatment Premium DAT Alloy Steel; carburized and nickel-plated for superior wear & corrosion resistance. Standard alloy steel with basic black-oxide or zinc surface treatment.
Operation & Control Ergonomic pendant, dual-speed control as standard for high-precision positioning. Basic pendant control; often single-speed.
Motor Cooling Optimized Cooling System (Fan + Heat Sink) for a significantly higher duty cycle. Natural convection or rudimentary fan cooling.
Maintenance & TCO Longer intervals and lower maintenance costs due to premium durable components. More frequent maintenance and part replacements required.
Typical Applications High-frequency manufacturing workshops, automated production lines, logistics centers, and heavy assembly bays. Low-frequency, auxiliary, or light-duty lifting applications.
KN Electric Chain Hoist Parameters
1 Ton Hook Chain Hoist 380V 50Hz 3 Phase Electric Hoist KN Series
Performance Specifications
Model Capacity Lifting Speed (m/min) Lifting Motor Power (kW) Motor Speed (r/min) Power Supply (Phase/V/Hz) Trolley Running Motor Duty Class Chain Diameter (Φ) Net Weight
KN0.25-01 0.25 Ton 8 / 2 0.8 / 0.2 1440 3-Phase / 380V / 50Hz N/A (Hook Suspension) M5 5.6 mm 30 kg
KN0.5-01 0.5 Ton 8 / 2 0.8 / 0.2 1440 3-Phase / 380V / 50Hz N/A (Hook Suspension) M5 5.6 mm 30 kg
KN01-02 1.0 Ton 4 / 1 0.8 / 0.2 1440 3-Phase / 380V / 50Hz N/A (Hook Suspension) M5 5.6 mm 35 kg
KN01-01 1.0 Ton 8 / 1.3 1.8 / 0.3 1440 3-Phase / 380V / 50Hz N/A (Hook Suspension) M5 7.1 mm 40 kg
KN02-02 2.0 Ton 4 / 0.7 1.8 / 0.3 1440 3-Phase / 380V / 50Hz N/A (Hook Suspension) M5 7.1 mm 50 kg

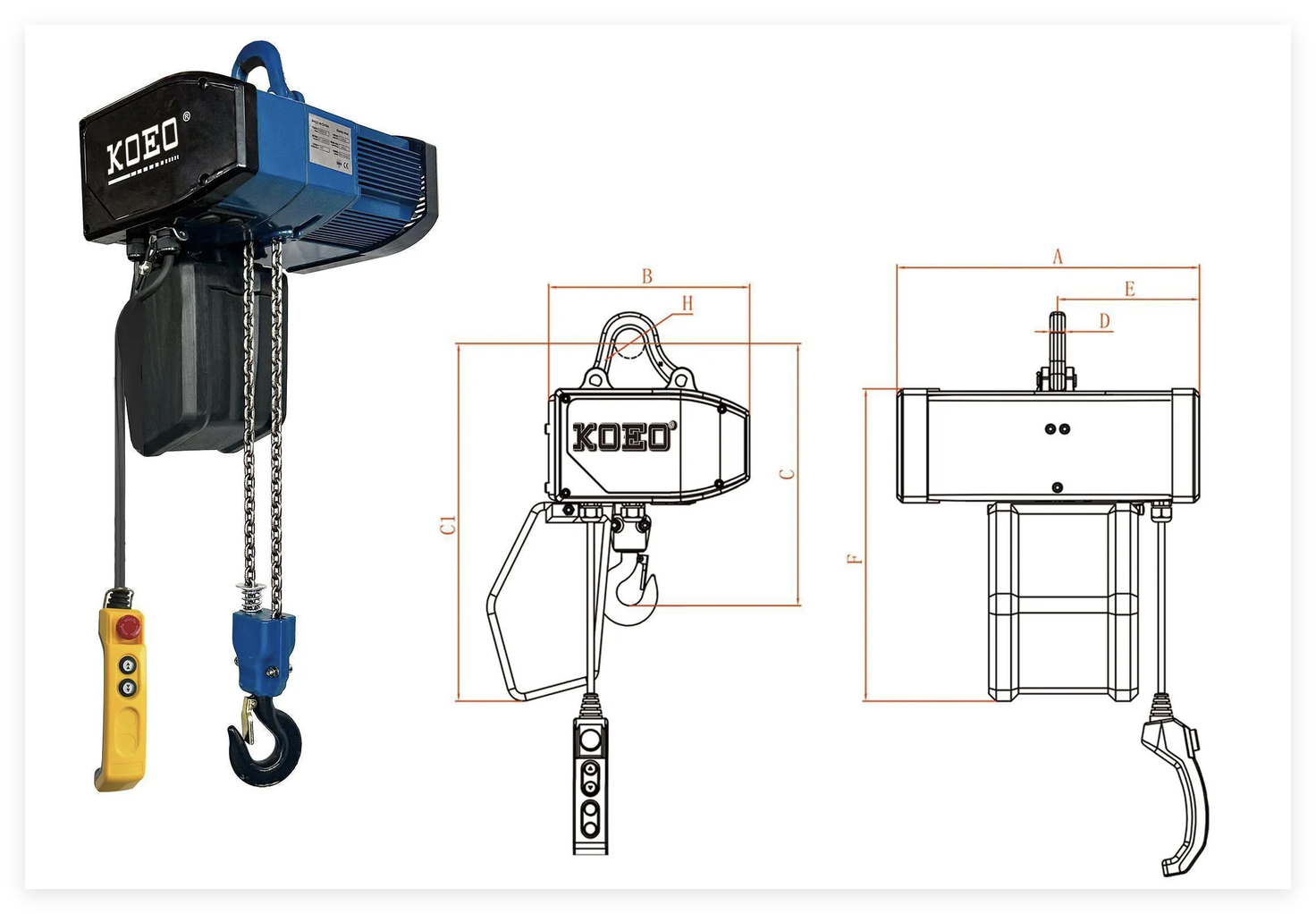

Dimensional Specifications (mm)
Model Rated Load C (mm) C1 (mm) B (mm) D (mm) E (mm) A (mm) F (mm)
KN0.25-01 0.25 Ton 370 500 270 20 190 406 420
KN0.5-01 0.5 Ton 370 500 270 20 190 406 420
KN01-02 1.0 Ton 440 500 270 20 190 406 420
KN01-01 1.0 Ton 450 550 335 25 229 510 450
KN02-02 2.0 Ton 542 550 335 25 229 510 450
1 Ton Hook Chain Hoist 380V 50Hz 3 Phase Electric Hoist KN Series
Detailed Specifications
Type Capacity High Speed Low Speed Output Power Rotation Speed Phases Voltage Frequency Running Motor Power Motor Speed Running Speed Work Level Chain Diameter Net Weight
KN0.25-01Y 0.25T 8 2 0.8 / 0.2 1440 3 380 50 0.4 1440 11 -- 5.6 mm 60
KN0.5-01Y 0.5T 8 2 0.8 / 0.2 1440 3 380 50 0.4 1440 11 M5 5.6 mm 60
KN01-02Y 1T 4 1 0.8 / 0.2 1440 3 380 50 0.4 1440 11 M5 5.6 mm 70
KN01-01Y 1T 8 1.3 1.8 / 0.3 1440 3 380 50 0.4 1440 11 M5 7.1 mm 80
KN02-02Y 2T 4 0.7 1.8 / 0.3 1440 3 380 50 0.4 1440 11 M5 7.1 mm 90

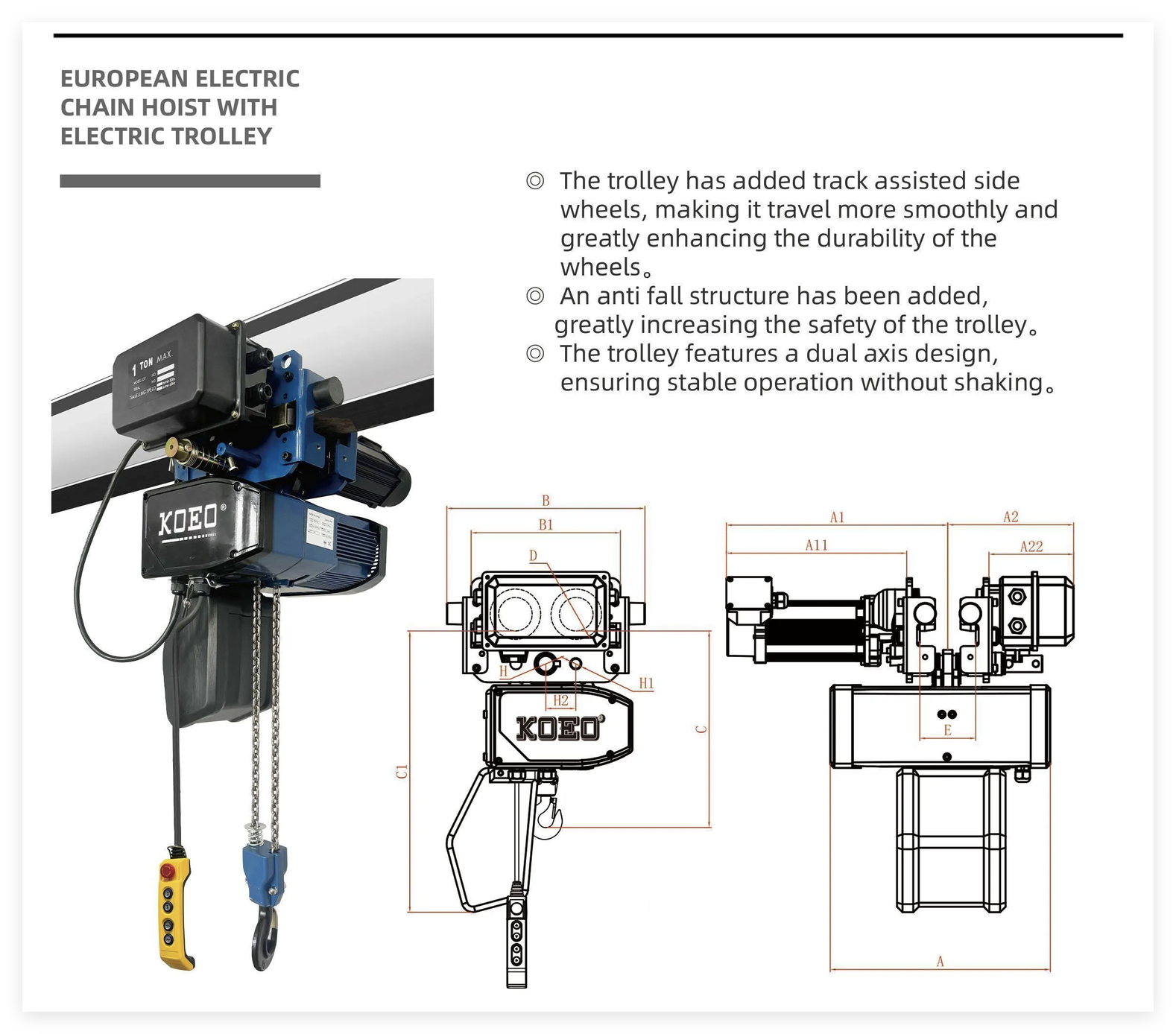

Size Specifications (mm)
Type Rated Load C C1 B B1 D F* G* A A1 A2 A11 A22 E
KN0.25-01Y 0.25T 370 518 365 275 62 31 55 406 408 232 332 156 103
KN0.5-01Y 0.5T 370 518 365 275 62 31 55 406 408 232 332 156 103
KN01-02Y 1T 470 518 365 275 62 31 55 406 408 232 332 156 103
KN01-01Y 1T 460 552 365 275 62 31 55 510 408 232 332 156 103
KN02-02Y 2T 560 552 -- -- -- -- 80 510 -- -- 332 156 103
