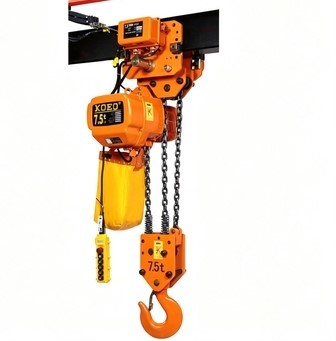

7500kg Lifting Chain Hoists 3 Falls G80 Chain Electric Hoist With Trolley
7500kg Lifting Chain Hoists 3 Falls G80 Chain Electric Hoist With Trolley
Specifications
Model Number :
HHBB075-03
Capacity :
7.5T
MOQ :
1 Set
Delivery Time :
10-15 working days for stock, 25-30 days for production
Lifting motor Power :
3.0Kw
Operating motor Power :
0.75Kw
Payment Terms :
T/T,L/C
Voltage :
380V
Price :
USD1450-1700/Set
Phases :
3
Certification :
CE, ISO 9001:2015
Lifting Height(m) :
3/9
Supply Ability :
200 Sets per Month
Frequency :
50Hz
Place of Origin :
Zhejiang, China
Litting Speed(m/min) :
1.8m/min
Packaging Details :
KOEO branded heavy-duty plywood case with VCI anti-rust film, reinforced foam padding, export-grade outer carton with steel banding
Operating speed :
11/21m/min
Brand Name :
KOEO
Name :
Lifting Chain Hoists
Description

Electric Chain Hoist 7500kg 3 Falls G80 Chain with Trolley Single Speed 380V

Parameter 7.5T Running Type
Model HHBB075-03
Rated Load 7,500 kg
Lifting Speed 1.8m/min
Lifting Motor 3.0 kW
Power Supply 380V / 50Hz / 3 Phase
Load Chain Φ11.2 (G80)
Chain Falls 3
Lifting Height 4m (Customizable)
Travel Speed 11 / 21 m/min
Travel Motor 0.75 kW
Protection IP54 /M3
  • Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
  • Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
  • Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop outomatically so as to prohibit the chains from exceeding for safety.
  • 24V/36V device: it is used to prohibit the emergencies from occuring in case of the leakage in the switch.
  • Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
  • Chain bag: It shall be light, handsome and durable.
  • Chain: The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.
