5T Electrical Chain Hoists M5 Double Chain Hoist IP55 Protection
5T Electrical Chain Hoists M5 Double Chain Hoist IP55 Protection
Specifications
Model Number :
EQ
Lifting weight :
5T
MOQ :
1
Price :
USD 850-1,350 / Set
Packaging Details :
KOEO branded heavy-duty plywood case with VCI anti-rust film, reinforced steel frame, high-density foam, export-grade outer carton with steel banding
Insulation class :
F
Supply Ability :
200 Sets per Month
Protection level :
IP55
Delivery Time :
15-30 Days
Payment Terms :
L/C,T/T
Work duty :
M5
Brand Name :
KOEO
Name :
Electrical Chain Hoists
Certification :
CE, ISO 9001:2015
Speed :
3.5m/min
Place of Origin :
Zhejiang, China
Power :
3.6KW
Description
5T Lifting Weight M5 Work Level IP55 Protection Double Chain Electric Chain Hoist
KOEO EQ Series Electric Chain Hoist

The KOEO EQ series represents the next generation of electric chain hoists. Engineered with a compact body and superior performance, this series outperforms the traditional HHBB models across all critical metrics, offering a capacity range of 0.5-30T.

Key Advantages
  • M5 Work Level: Designed for extended service life and durability.
  • IP55 Protection: Reliable operation in harsh industrial environments.
  • Dual Security: Equipped with a friction clutch and up/down limit switches.
  • Integrated Aluminum Casting: Lightweight construction for ease of maintenance.
Technical Specifications
Model Lifting Weight Speed Power
EQ 01-01L 1T 7.1m/min 1.5KW
EQ 02-01L 2T 7.0m/min 3.0KW
EQ 02-02L 2T 3.6m/min 1.5KW
EQ 03-01L 3T 7.0m/min 3.6KW
EQ 03-02L 3T 3.5m/min 3.0KW
EQ 05-02L 5T 3.5m/min 3.6KW
Logistics Information
Each Product Dimensions (cm) Each Piece Weight (kg) Delivery Period
68*35*52 50 7 days
68*35*52 60 7 days
76*40*48 105 7 days
76*40*61 110 7 days
76*46*61 120 7 days
76*49*61 128 7 days

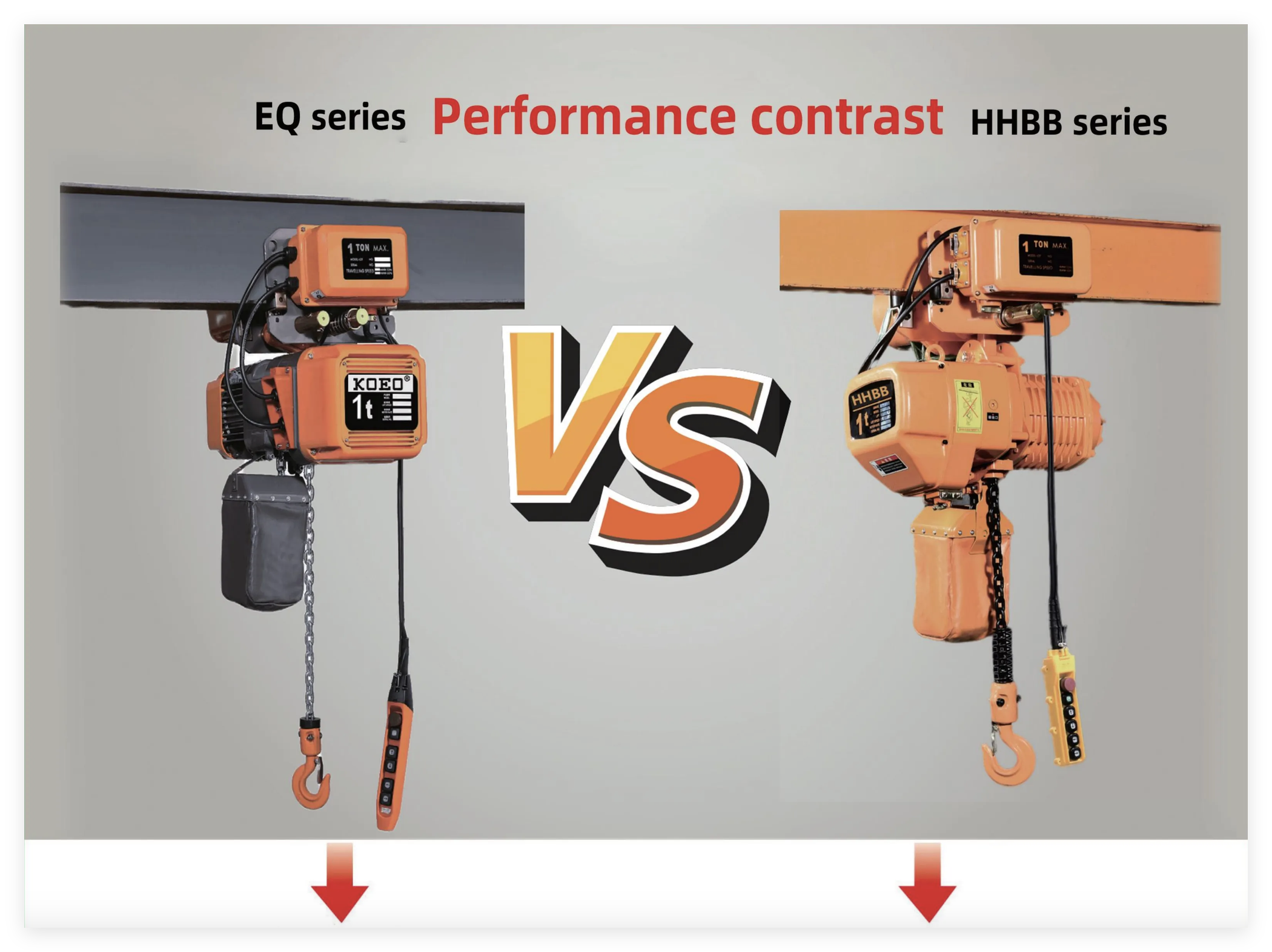

Why Choose EQ Series Electric Chain Hoist
5T Electrical Chain Hoists M5 Double Chain Hoist IP55 Protection
Feature Our Electric Chain Hoist Common Electric Chain Hoist
Working Level High Level M5 Working Level Self with air-cooling heat radiation. Adapt to high frequency and high-range task conditions. M3 Working Level
Safety Protection Built-in Friction Clutch & Up/Down Limit Switch • Friction clutch prevents damage to the hoist and load chain caused by overload or lifting against obstacles. • Up/Down limit switch prevents damage caused by over-travel. • Double safety mechanism formed by friction clutch and limit switch. Without friction clutch. Only equipped with Up/Down limit switch.
Protection Level IP55 Protection Dust-proof, jetting-type body design. Suitable for harsh working environments and severe operating conditions. IP54 Protection
Body Structure One-piece Aluminum Die Casting Body • High-strength rigid housing for demanding environments. • One-piece molded structure with fewer components. • Easier maintenance and higher reliability. • High performance guaranteed by one-time molded body. Complex Structure. More components and difficult to maintain.
