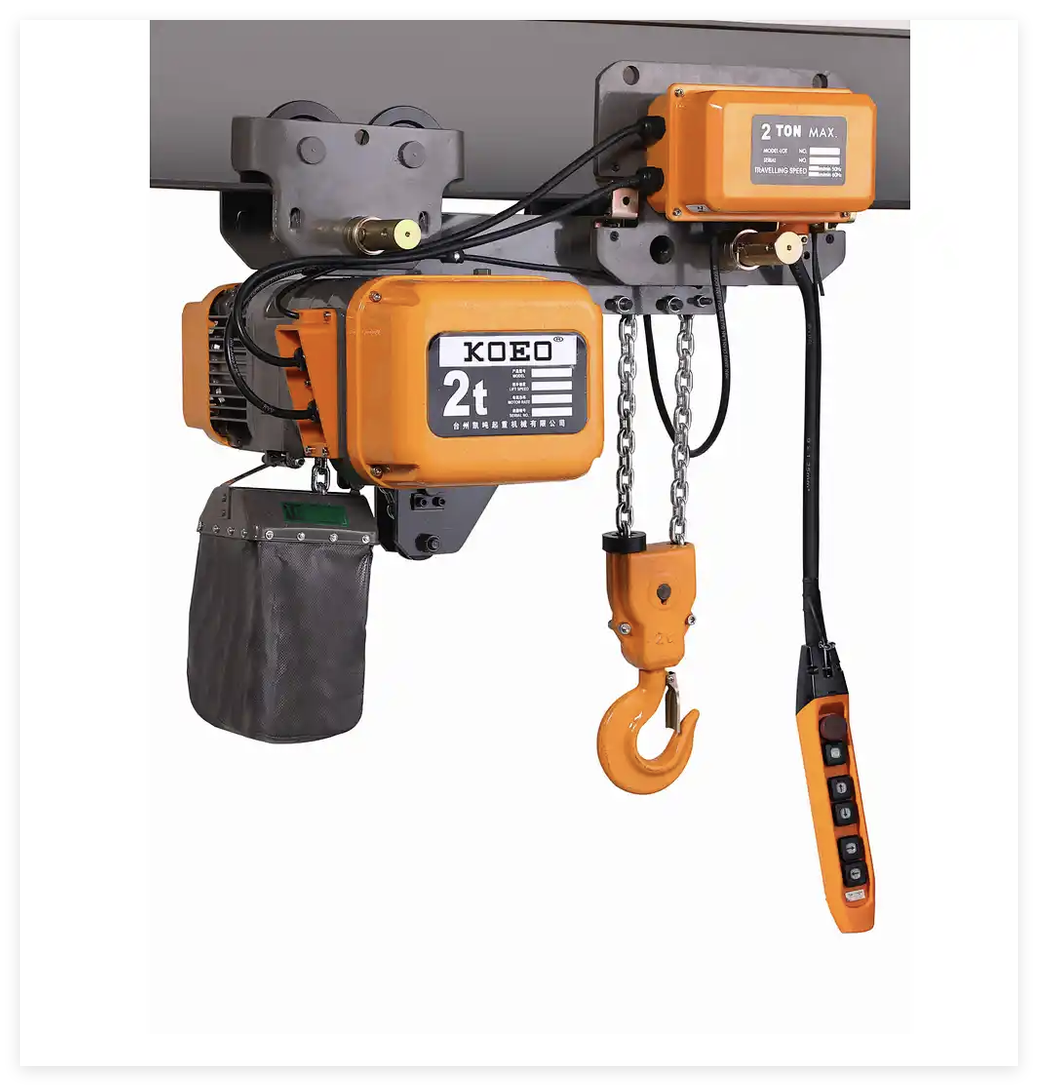

The KOEO EQ series represents the next generation of electric chain hoists. Engineered with a compact body design, this upgraded series delivers superior performance compared to the traditional HHBB series. With a capacity range of 0.5-30T, it is the ideal solution for heavy-duty industrial lifting.

• M5 Work Level: Designed for extended service life and durability.
• IP55 Protection: Reliable operation in harsh, demanding industrial environments.
• Dual Security: Equipped with a friction clutch and up/down limit switches.
• Precision Build: Integrated aluminum casting molding for a lightweight, easy-to-maintain structure.

Magnetic Brake System • Overload Friction Clutch • Upper & Lower Limit Switches

Ensuring safety is the fundamental requirement of lifting equipment.

The KOEO Series Electric Chain Hoist is equipped with three independent safety protection systems:

• Magnetic Brake System
• Overload Friction Clutch
• Upper & Lower Limit Switches

Together they provide comprehensive protection for both the hoist and the load.

The overload friction clutch prevents damage caused by excessive loading.

Working Principle

• When the load exceeds the rated capacity, the friction clutch automatically slips.
• The motor continues rotating while power transmission is interrupted.
• This effectively prevents overload damage to:
  • Hoist body
  • Load chain
  • Transmission components
• Stable performance regardless of environmental conditions.

The limit switch provides travel protection during lifting operations.

Functions

• Automatically disconnects the control circuit when the hook reaches the upper or lower limit.
• Stops the motor immediately.
• Prevents damage caused by over-travel.
• Protects both the hoist body and the load chain.

Note: The limit switch is designed as a safety protection device and should not be used as the normal stopping method during operation.

The magnetic brake provides immediate braking once power is removed.

Features

• High-temperature resistant drum brake.
• Automatically locks when power is disconnected.
• Fast braking response.
• Excellent holding performance.
• Ensures maximum operational safety.

The modular structure makes both installation and maintenance much easier.

Reduce Failure Rate • Lower Maintenance Cost

The uniquely designed external cooling fan motor offers:

• Better heat dissipation
• Lower operating noise
• Higher operating frequency
• Longer continuous running time

As a result, the hoist achieves an M5 duty classification, making it especially suitable for:

• High-frequency lifting operations
• Continuous industrial production
• Heavy-duty working environments

The integrated die-cast aluminum housing features a streamlined structure that enables the hoist to achieve an IP55 Protection Rating.

Advantages

• Lightweight yet high strength
• Excellent heat dissipation
• Dust-proof construction
• Long service life
• High corrosion resistance

The dual-speed electric chain hoist is equipped with a Variable Frequency Control System.

• Soft start reduces starting current.
• Minimizes impact on the power grid.
• Prevents motor overheating.
• Extends motor service life.
• Improves working efficiency.
• Provides smooth acceleration and deceleration.
• Reduces vibration and impact on equipment.
• Especially suitable for:
  • Precision equipment installation
  • Mold installation
  • Equipment commissioning
  • Positioning operations requiring high accuracy
