Specifications
Brand Name :
HuaXin
Model Number :
HX0147Y003T003
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$4
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft panel
name :
round TFT display
size :
1.47 inch
resolution :
360*360
Brightness :
400C/D
Interface :
MIPI/QSPI/8BIT/SRGB
Driving IC :
ST77916
Description
1.47 inch Round TFT Display - 360×360 Dots with MIPI/QSPI/8BIT/SRGB Interface (ST77916 Driving IC)
Product Overview

HX0147Y003T003 is a 1.47 inch round TFT display with 360×360 resolution, all-view angle capability, MIPI/QSPI/8BIT/SRGB interface options, 400nits brightness, and ST77916 driving IC.

Technical Specifications
Attribute Value
Part Number HX0147Y003T003
Display Mode 1.47 inch round TFT display
Outline Size 39.24×41.01×1.6 mm
Active Area Size 36.94×36.94 mm
Resolution 360×360 dots
View Angle All
Brightness 400 cd/m²
Interface MIPI/QSPI/8BIT/SRGB
Driving IC ST77916
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

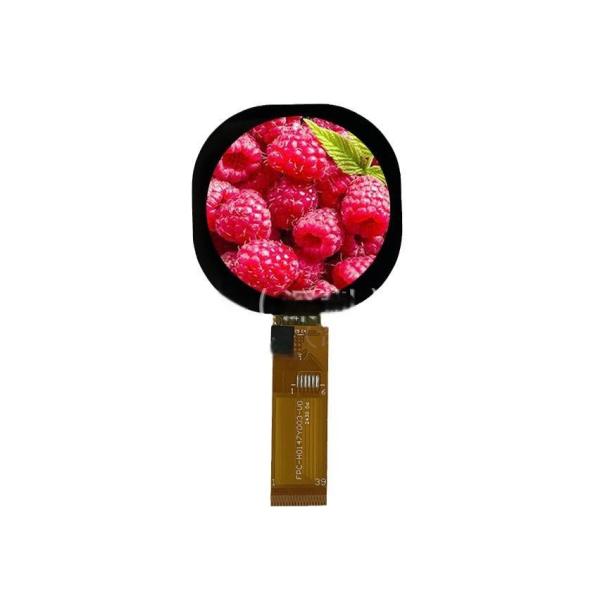

Product Images
1.47 inch round TFT display 360*360 dots MIPI/QSPI/8BIT/SRGB interface driving IC ST77916 1.47 inch round TFT display 360*360 dots MIPI/QSPI/8BIT/SRGB interface driving IC ST77916 1.47 inch round TFT display 360*360 dots MIPI/QSPI/8BIT/SRGB interface driving IC ST77916

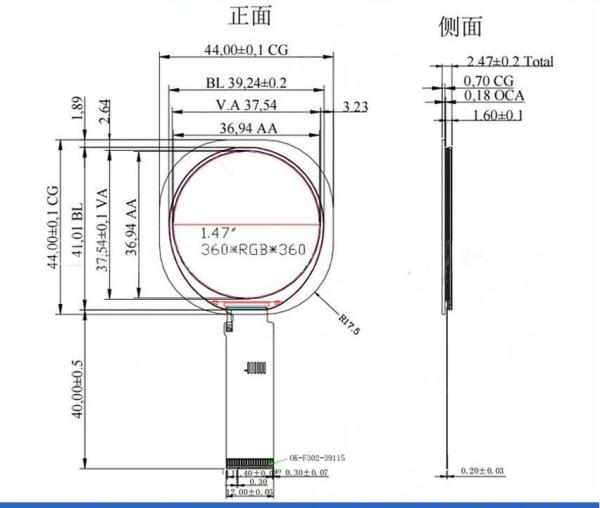

Technical Diagrams
1.47 inch round TFT display 360*360 dots MIPI/QSPI/8BIT/SRGB interface driving IC ST77916 1.47 inch round TFT display 360*360 dots MIPI/QSPI/8BIT/SRGB interface driving IC ST77916 1.47 inch round TFT display 360*360 dots MIPI/QSPI/8BIT/SRGB interface driving IC ST77916
TFT Display Characteristics
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shift
  • Energy efficient compared to other display technologies
  • Available in various sizes from small handheld devices to large panels
  • LED backlighting system for screen illumination
  • Wide range of applications across industries
Potential Limitations
  • Limited viewing angles compared to some newer technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
Applications
  • Car navigation systems and printers
  • Video call equipment and digital advertising
  • Automotive displays and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • 20+ years of LCD industry experience
  • Custom product design capabilities

Certifications: ISO14001, ISO9001, IATF16949, SGS

Company Overview

Huaxin Technology (Enshi) Co., LTD is a high-tech enterprise founded in 2009 in Hubei, Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

  • Registered capital: 20 million
  • 500+ employees
  • 10% R&D staff
  • 15% quality control staff
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
