2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX0285Y001
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$10.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round tft lcd display
Name :
round tft lcd
Display size :
2.85 inch
Resolution :
480*480
interface :
RGB+MIPI
Driving IC :
ST7701S
Brightness :
450C/D
View angle :
all
Description
2.85 Inch TFT Round Display Module
Key Specifications
Display Technology Round TFT LCD Display
Display Size 2.85 inch
Resolution 480×480 dots
Interface RGB+MIPI
Driving IC ST7701S
Brightness 450c/d
View Angle All directions
Technical Parameters
Part No. HX0285Y001
Outline Size 73.03×76.48×2.26 mm
AA Size 70.13×70.13 mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

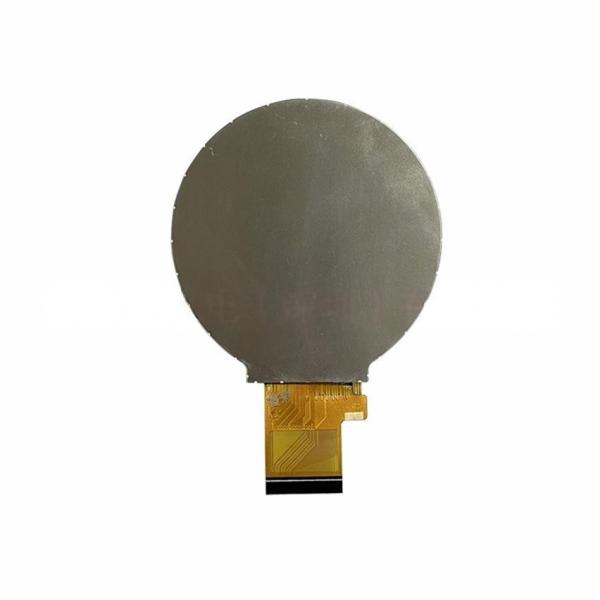

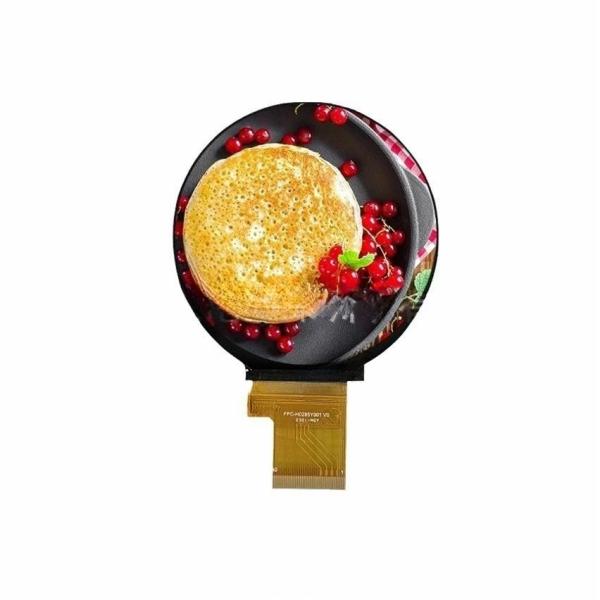

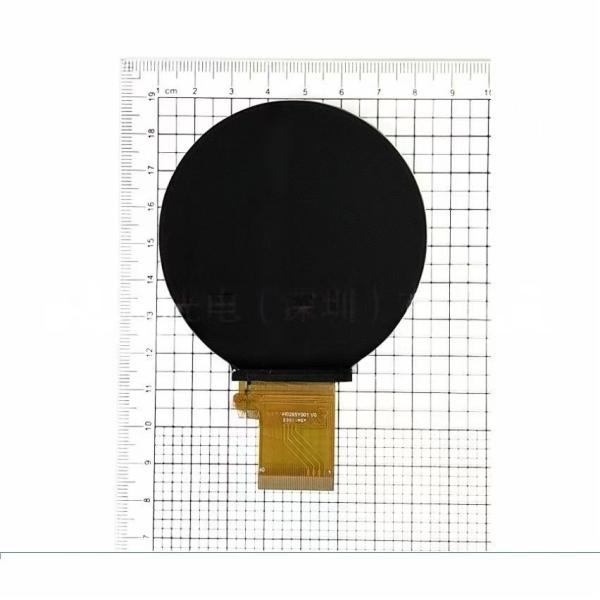

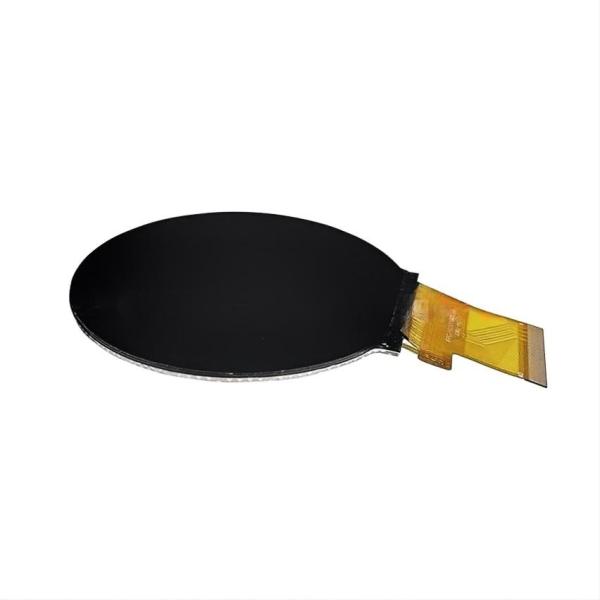

Product Images
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d 2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d 2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d 2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
TFT Product Knowledge
2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d 2.85 inch TFT round display module 480*480 dots RGB+MIPI interface driving IC ST7701S 450c/d
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth display transitions
  • Wide viewing angles without significant color shifts
  • Energy efficient compared to other display technologies
  • Available in various sizes for different applications
  • LED backlighting system for screen illumination
Potential Limitations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in display shapes
  • Color gamut may be restricted
Product Applications
  • Car navigation systems and printers
  • Video call equipment and digital advertising
  • Automotive displays and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality production
  • Highly automated processes for efficiency
  • Experienced engineering team with 20+ years in LCD field
  • Custom product design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED technologies
  • Product range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs
  • Registered capital: 20 million
  • Workforce: 500+ employees (10% R&D, 15% QC)
Production Capacity
Product Type 2021 2022 Goal 2023 Challenge 2024 Challenge 2025 Challenge
LCD (thousands/day) 4.5 9 9 9 9
LCM (thousands/day) 70 150 300 450 450
Backlight (thousands/day) 100 200 300 500 500
OLED (thousands/day) 10 20 30 40 50
