Specifications
Brand Name :
HuaXin
Model Number :
ESHX150IPS-R-V0
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$5.5~$5.01
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
circular tft panel
Name :
circular screen
Display size :
1.5 inch tft
Resolution :
320X320
interface :
24PINS MIPI 1 Lane
Driving IC :
OTM3201A
Brightness :
350c/d
View angle :
all
Description
1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2

Product Specifications

Part No:
ESHX150IPS-R-V0
Panel size 1.5 inch round TFT
LCD type IPS
Module Size 41.3*45.1mm
Display Area 38.102*38.102mm
Number of Dots 320X320
View angle ALL
Module Driver IC OTM3201A
Interface Pins 24PINS MIPI 1 Lane
Luminance 350cd/m2
Operating Temp -20~70
Storage Temp -30~80
Remark CTP optional

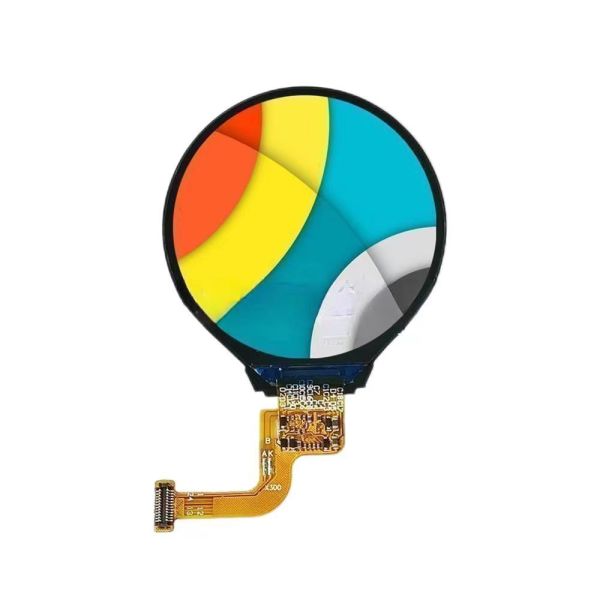

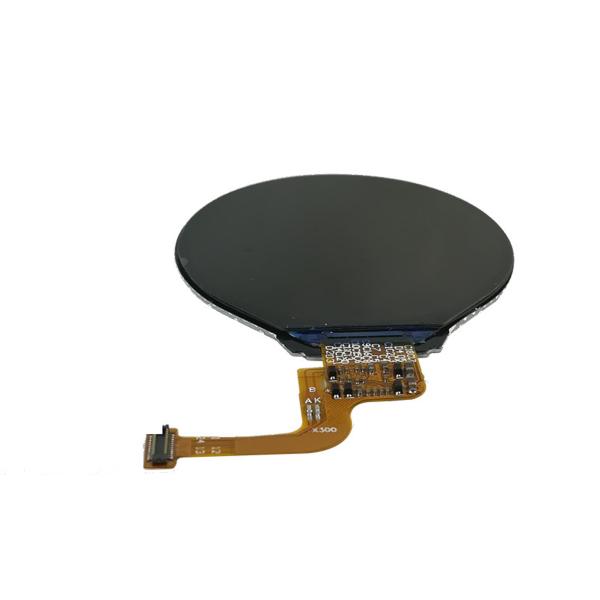

Product Images

1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2

1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2

1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2

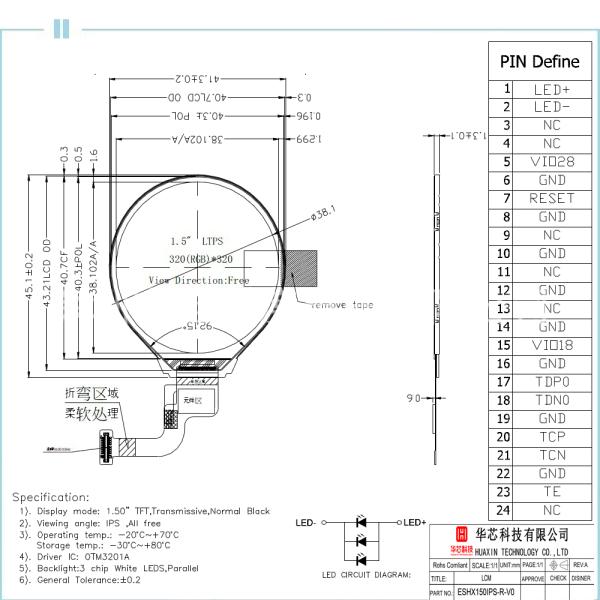

Technical Drawings

1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2


TFT Technology Reference
1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2 1.5 Inch Round TFT Display 320X320 Resolution 24 PINS MIPI Interface Driving IC OTM3201A 350cd/M2
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching for smooth motion
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternatives
  • Size Options: Available in various sizes from small to large panels
  • Backlighting: LED backlighting for illumination
  • Applications: Versatile usage across multiple industries
TFT Display Limitations
  • Viewing angles limited compared to newer technologies
  • Contrast ratio limitations
  • Backlighting requirements increase power consumption
  • Potential motion blur in fast-moving images
  • Limited physical flexibility
  • Color gamut limitations compared to some alternatives
Product Applications
  • Car navigation systems and printers
  • Video communication and advertising displays
  • Automotive dashboards and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi
Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED technologies

Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Company Advantages
  • Cost-effective operations in inland China
  • Advanced equipment ensuring stable quality
  • Fully automated production processes
  • Professional engineers with 20+ years experience
  • In-house design capability for custom products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 Goal 2023 Goal 2024 Goal 2025 Goal
LCD Production (k logs/day) 4.5 9 9 9 9
LCM Production (k pieces/day) 70 150 300 450 450
Backlight Production (k pieces/day) 100 200 300 500 500
OLED Production (k pieces/day) 10 20 30 40 50
