1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
Specifications
Brand Name :
HuaXin
Model Number :
ESHX109RAN11A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$3-$5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT module
Name :
tft panel
Display size :
1.09 inch
Resolution :
240*240
interface :
MCU interface
Driving IC :
GC9A01
Brightness :
350C/D
view angle :
all
Description
1.09-Inch Circular LCD Display Module | 240×240 Pixel, MCU Interface, 350cd/m², Easy Driver for Mini Medical Monitors & Industrial Sensors
Technical Specifications
Display Technology TFT module
Display Size 1.09 inch
Resolution 240*240
Interface MCU interface
Driving IC GC9A01
Brightness 350C/D
PIN number 24 pins
View Angle All
Part No. ESHX109RAN11A
Outline Size (mm) 30.59X32.83X1.56MM
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

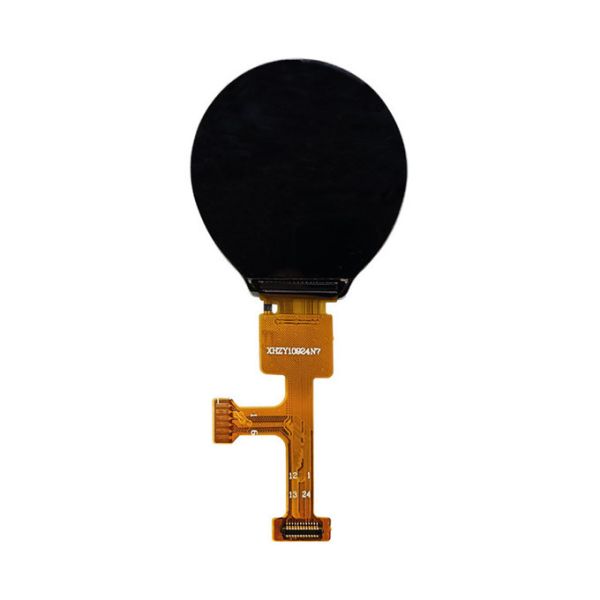

Product Images
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
1.09-Inch Round LCD Module | 240×240 Resolution, MCU Interface, 350cd/m² Brightness, Low Power for Smart Watches & Fitness Trackers
Manufacturer Advantages
  • Cost-effective production facility in inland China
  • Advanced equipment ensuring stable product quality
  • Automated manufacturing processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD technology
  • Custom design capabilities for specialized requirements
About Huaxin Technology (Enshi) Co., LTD

Established in 2009 and located in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
