0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
Specifications
Brand Name :
HuaXin
Model Number :
ESHX0075Y001
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$2.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round lcd module
Name :
round tft display
Display size :
0.75 inch
Resolution :
160*160
interface :
4SPI/18BIT
Driving IC :
GC9D01N
View angle :
all
Description
0.75 Inch Round TFT Display with 160×160 Resolution
Key Specifications
Attribute Value
Display Technology Round LCD Module
Display Size 0.75 inch
Resolution 160×160 dots
Interface 4SPI/18BIT
Driving IC GC9D01N
View Angle All directions
Technical Parameters
Part No. ESHX0075Y001
Outline Size 20.21×22.35×1.5 mm
Active Area Size 18×18 mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

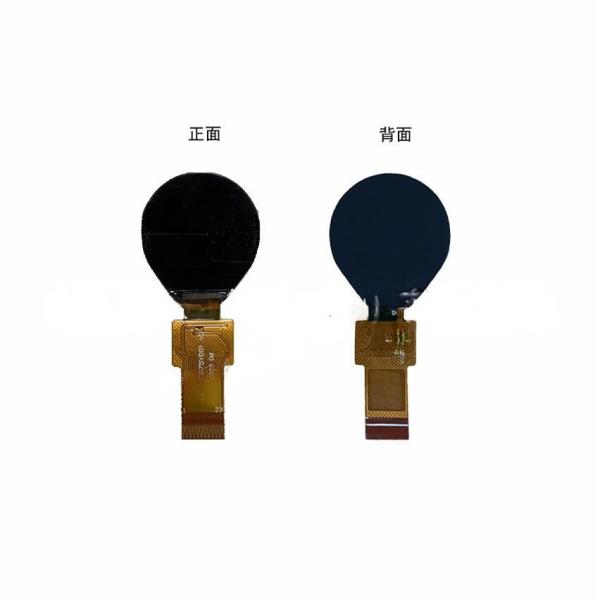

Product Images
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N 0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N 0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
Pin Definition Diagram
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
TFT Product Knowledge
0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N 0.75 inch round tft display 160*160 dots 4SPI/18BIT interface driving IC GC9D01N
Manufacturer Advantages
  • Cost-effective production facility located in inland city
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities for specialized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD is a high-tech enterprise founded in 2009, specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.

Located in Hubei Enshi with 500+ employees, including 10% R&D and 15% quality control staff. Registered capital: 20 million.

Production Capacity
Product 2021 2022 2023 2024 2025
LCD (thousands/day) 4.5 9 9 9 9
LCM (thousands/day) 70 150 300 450 450
Backlight (thousands/day) 100 200 300 500 500
OLED (thousands/day) 10 20 30 40 50
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles without significant color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for bright, uniform illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio may be lower than alternative solutions
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form factor
  • Color gamut may be narrower than some alternatives
