MachineU > China Products
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX0153Y002
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$3.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round tft
Name :
round tft screen
Display size :
1.53 inch
Resolution :
360*360
interface :
QSPI
Driving IC :
ST77916
Brightness :
400C/D
View angle :
all
Description
1.53 Inch TFT Round Display Module

High-resolution 360×360 dot round TFT display with QSPI interface, ST77916 driving IC, and 400c/d brightness.

Product Specifications
Attribute Value
Display Technology Round TFT
Display Size 1.53 inch
Resolution 360×360
Interface QSPI
Driving IC ST77916
Brightness 400C/D
View Angle All
Technical Parameters
Part No. HX0153Y002
Outline Size (mm) 40.47×41.96×1.56
AA Size (mm) 38.16×38.16
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

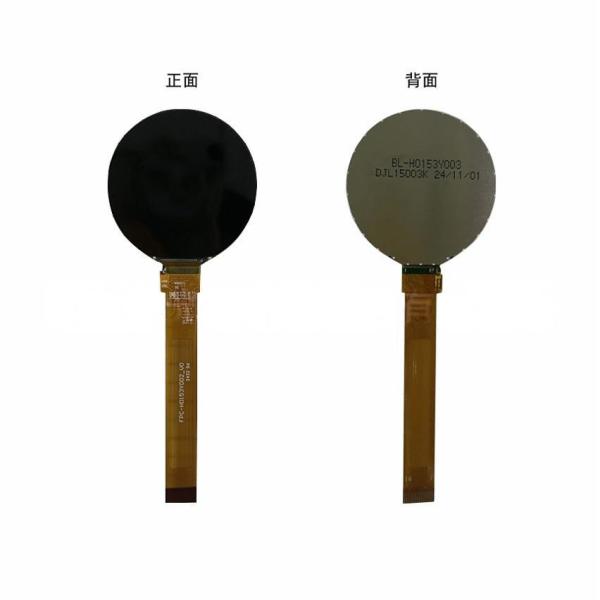

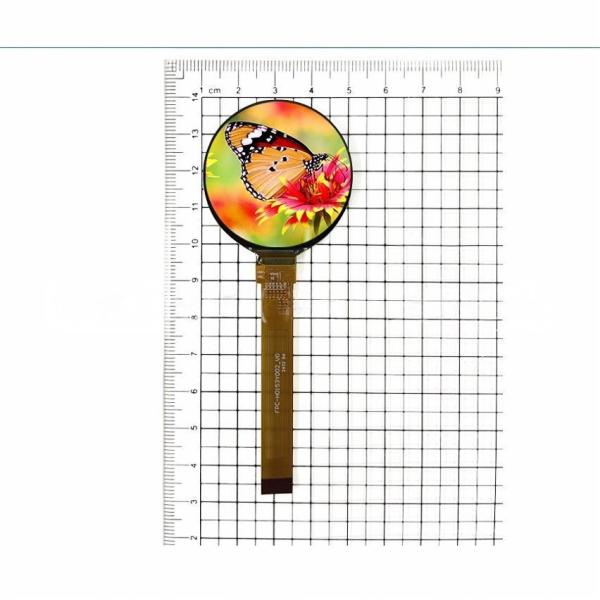

Product Images
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d 1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d 1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
Pin Definition Diagram
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
TFT Technology Overview
1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d 1.53 inch TFT round display module 360*360 dots QSPI interface driving IC ST77916 400c/d
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD, founded in 2009 in Hubei Enshi, specializes in LCD, LCM, TFT, backlight, and OLED research, development, and production.

  • Registered capital: 20 million
  • 500+ employees
  • 10% R&D staff
  • 15% quality control staff
Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousand/Day
Backlight 100 200 300 500 500 Thousand/Day
OLED 10 20 30 40 50 Thousand/Day
Applications
  • Car navigation & printers
  • Video call & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • High image quality with excellent resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Flexible sizing options for various applications
  • LED backlighting for consistent illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations
  • Backlighting affects power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
