Specifications
Brand Name :
HuaXin
Model Number :
ESHX132B014
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$3.3
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round tft lcd display
Name :
circular tft display
Display size :
1.32 inch
Resolution :
360x360
interface :
QSPI
Driving IC :
GC9C01
Brightness :
250c/d
View angle :
all
Description
1.32 Inch Round TFT Display with QSPI Interface

High-resolution 360×360 round TFT display featuring GC9C01 driving IC and 250c/d brightness with wide viewing angle.

Key Specifications
Attribute Value
Display Technology Round TFT LCD Display
Display Size 1.32 inch
Resolution 360×360 dots
Interface QSPI
Driving IC GC9C01
Brightness 250c/d
View Angle All directions
Technical Parameters
Part No. ESHX132B014
Outline Size 35.98×38.54×1.56mm
VA Size 35.18×35.28mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

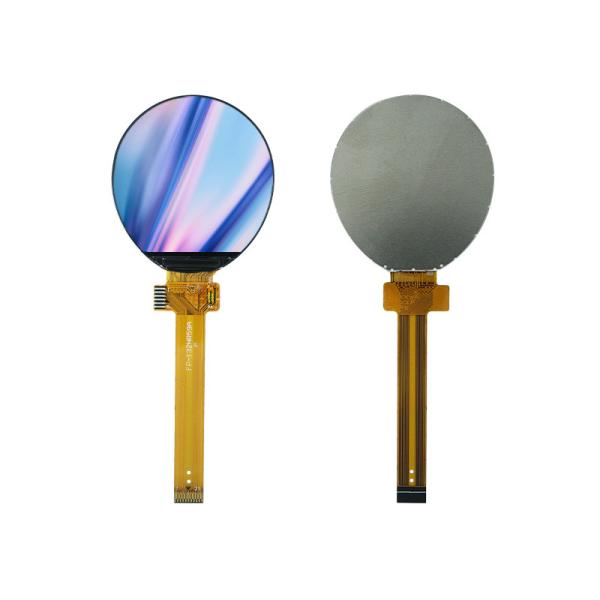

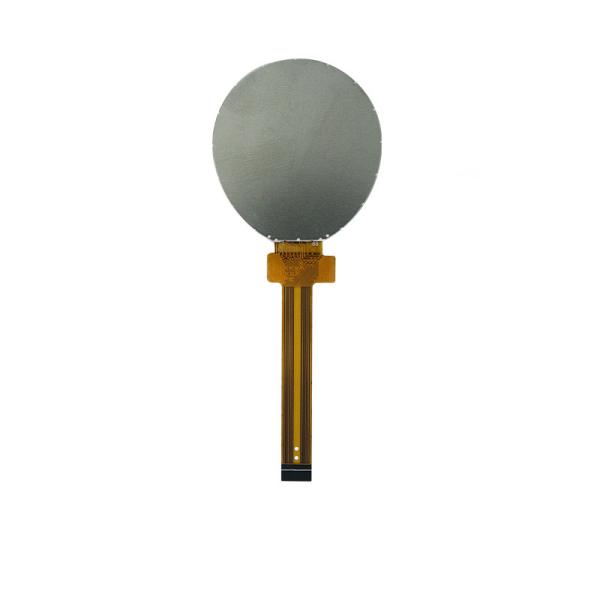

Product Images
1.32 inch round TFT display 360x360 dots ,QSPI interface driving IC GC9C01,250c/d 1.32 inch round TFT display 360x360 dots ,QSPI interface driving IC GC9C01,250c/d 1.32 inch round TFT display 360x360 dots ,QSPI interface driving IC GC9C01,250c/d 1.32 inch round TFT display 360x360 dots ,QSPI interface driving IC GC9C01,250c/d
Pin Definition Diagram
1.32 inch round TFT display 360x360 dots ,QSPI interface driving IC GC9C01,250c/d
TFT Product Knowledge
Manufacturer Advantages
Cost-effective factory base located in inland city
Advanced equipment ensuring stable quality
Fully automated processes for efficiency and consistency
Experienced engineering team with 20+ years in LCD field
Custom product design capabilities
Certifications
ISO14001, ISO9001, IATF16949, SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP modules
Registered Capital: 20 million
Employees: 500+ (10% R&D, 15% QC)
Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Suitable for diverse applications
TFT Display Limitations
  • Viewing angles may be limited compared to some alternatives
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some competing technologies
