1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
Specifications
Brand Name :
HuaXin
Model Number :
HX128HC-C12-05
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$4.7
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
lcd tft display panel
Name :
custom tft display
Display size :
1.28inch
Resolution :
240X240
interface :
SPI
Driving IC :
GC9A01
Brightness :
250c/d
View angle :
all
Description
1.28 Inch Round TFT Display with SPI Interface (GC9A01 Driver)
Key Specifications
Attribute Value
Display Technology LCD TFT Display Panel
Display Size 1.28 inch
Resolution 240 × 240 dots
Interface SPI
Driving IC GC9A01
Brightness 250 cd/m²
View Angle All directions
Technical Parameters
Part Number HX128HC-C12-05
Outline Size 35.6 × 37.74 × 1.55 mm
VA Size 32.4 × 32.4 mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

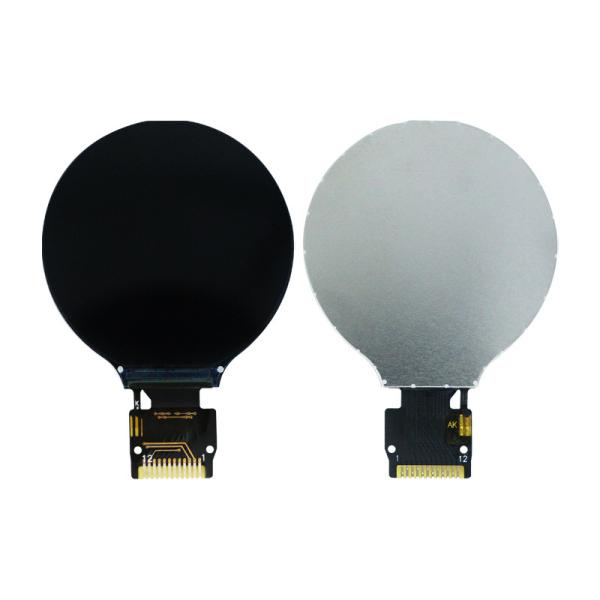

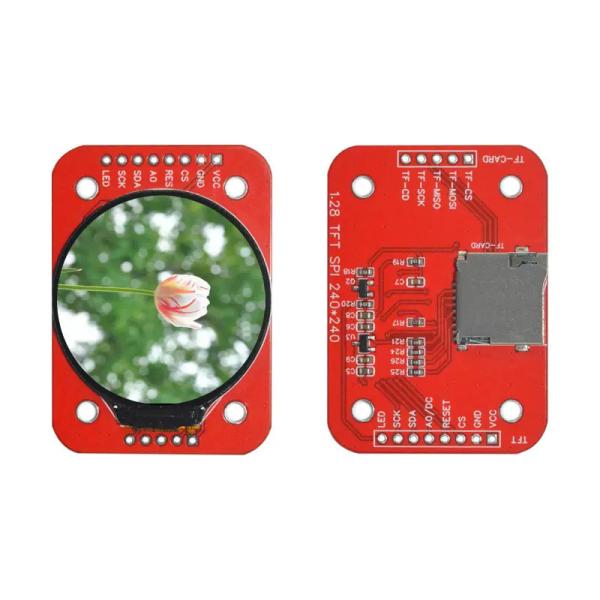

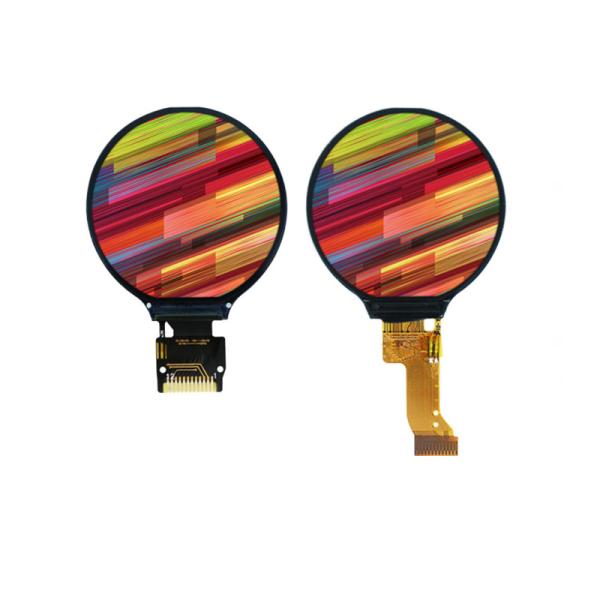

Product Images
1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01 1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01 1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01 1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01 1.28 Inch Round TFT Display 240X240 Resolution SPI Interface Driving IC GC9A01
TFT Technology Overview
Manufacturer Advantages
  • Cost-effective production facility located in inland city
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD - Founded 2009 in Hubei, Enshi

  • High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED
  • Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
  • LCM products include COB, TBA, COG, TP, and LED backlight series
  • Registered capital: 20 million
  • 500+ employees with 10% in R&D and 15% in quality control
Production Capacity
Product 2021 2022 2023 2024 2025
LCD (k/Day) 4.5 9 9 9 9
LCM (k/Day) 70 150 300 450 450
Backlight (k/Day) 100 200 300 500 500
OLED (k/Day) 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • High image quality with excellent resolution and color accuracy
  • Fast response times for smooth image transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes from small handheld to large panels
  • LED backlighting for consistent illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
