1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX0132FMST02
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$6~$5.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display technolog :
round oled display
Name :
round oled screen
size :
1.3 inch
resolution :
466X466
interface :
SPI/QSPI/MIPI
brightness :
600C/D
Driving IC :
CO5300
Description
1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d
Technical Parameters
Part NO. HX0132FMST02
Display Technology AMOLED DISPLAY
Diagonal Screen Size 1.32 inch
Resolution 466X466
Viewing Angle all
Active Area (mm) 33.55X33.55
Panel size(mm) 40.35X40.35
Brightness(cd/m2) 600 cd/M2
Interface SPI/QSPI/MIPI
Contrast Ratio 100000:1
Display IC CO5300
Operating Temp -30~80
storage temp -40~85
TOUCH IC FT3168

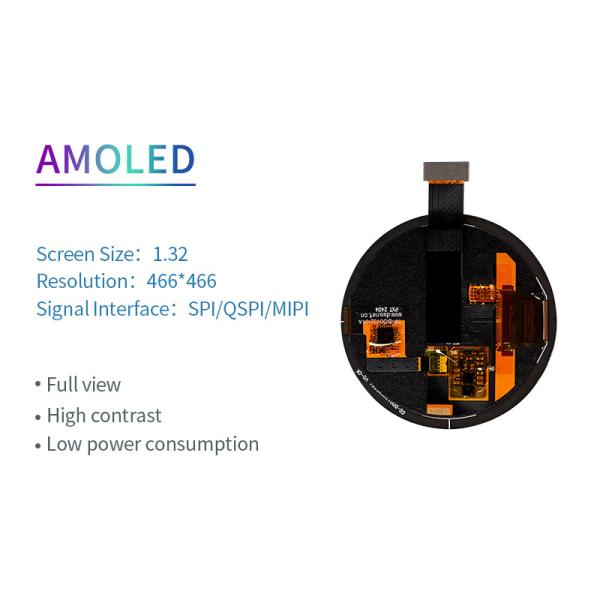

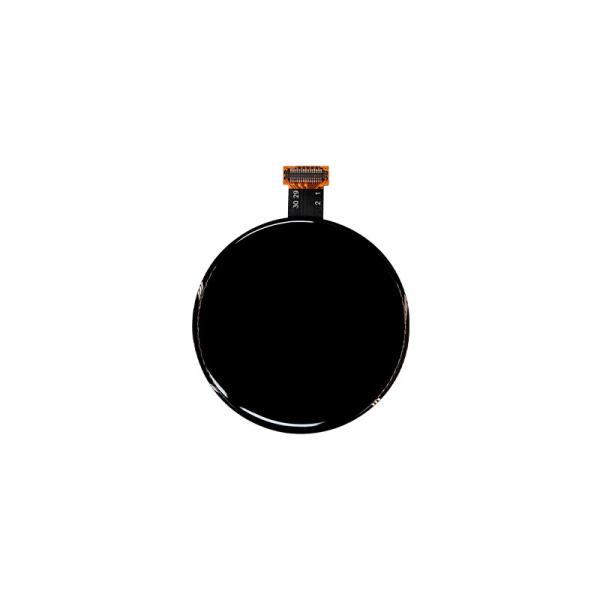

Product Images


1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d

1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d

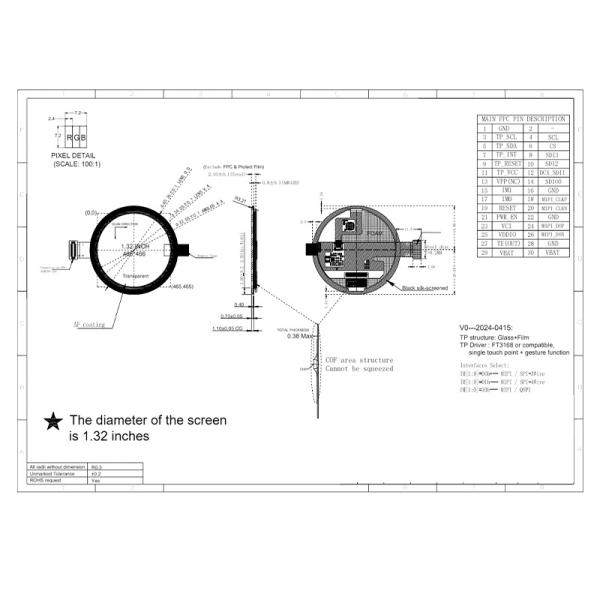

Technical drawing


1.32 Inch Round AMOLED Panel 466X466 Dots SPI/QSPI/MIPI Interface brightness 600c/d

AMOLED Technology Overview
Advanced AMOLED technology delivers superior display performance with these key advantages:
  • Perfect blacks & infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Superior viewing angles
  • Excellent HDR performance
Considerations
  • Higher cost compared to LCD/TFT
  • Shorter operational lifetime
  • Lower peak brightness in sustained use
Power Efficiency Comparison
  • Content-dependent efficiency: AMOLED consumes power per pixel, saving energy on dark content
  • Brightness control: Dynamic pixel brightness adjustment improves low-light efficiency
  • Size impact: More efficient for smaller displays where pixel count is lower
  • Backlight difference: LCD/LED require constant backlight regardless of content
Manufacturer Advantages
  • Cost-effective inland manufacturing base
  • Advanced automated production equipment
  • 20+ years of LCD industry expertise
  • Custom design capabilities
  • ISO 14001, ISO 9001, IATF 16949, and SGS certified
Huaxin Technology (Enshi) Co., LTD
Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.
  • Registered capital: 20 million
  • 500+ employees (10% R&D, 15% QC)
  • Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
  • LCM capabilities: COB, TBA, COG, TP, LED backlight
Production Capacity
Product 2021 2022 2023 2024 2025
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
