1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
Specifications
Brand Name :
HuaXin
Model Number :
HX139RAN23A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$9.5~$8.9
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
round Amoled
Size :
1.39 inch
Name :
circular Amoled display
Resolution :
400X400
interface :
20pins MIPI
View angle :
all
Brightness :
300C/D
Driving IC :
RM69080
Description
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
Product Attributes
Attribute Value
Display Technology Round AMOLED
Size 1.39 inch
Name Circular AMOLED Display
Resolution 400×400
Interface 20pins MIPI
View Angle All
Brightness 300C/D
Driving IC RM69080
Technical Parameters
Part NO. HX139RAN23A
Display Technology AMOLED
Diagonal Screen Size 1.39 inch round OLED
Resolution 400×400
Viewing Angle All
Operation Temperature -20 ~ +70 ℃
Active Area (mm) 35.4×35.4mm
Panel Size (mm) 38.6×40.5×0.7MM
Brightness (cd/m²) 300cd/M²
Interface MIPI
Pin Quantity 20 PINS
Contrast Ratio 10000:1
Driving IC RM69080
Touch Panel /

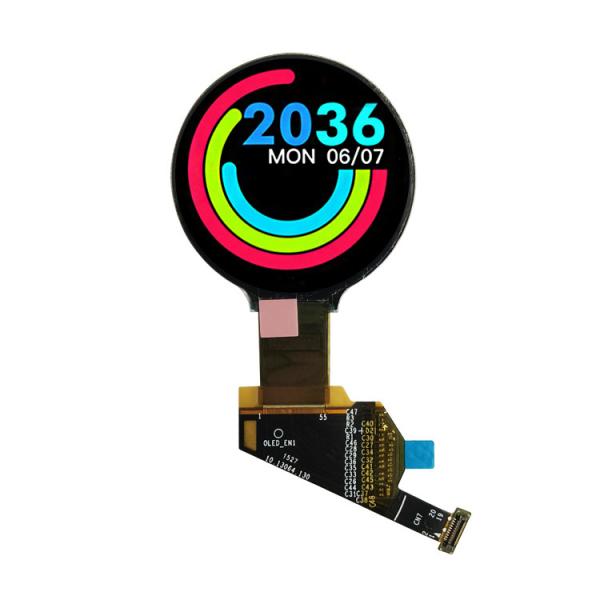

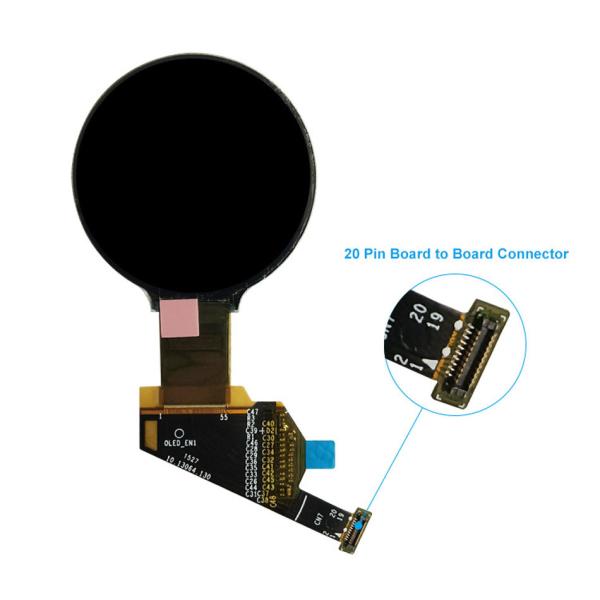

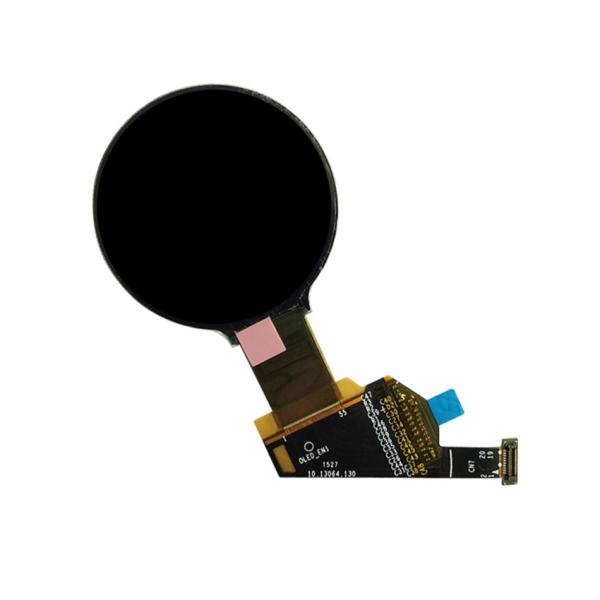

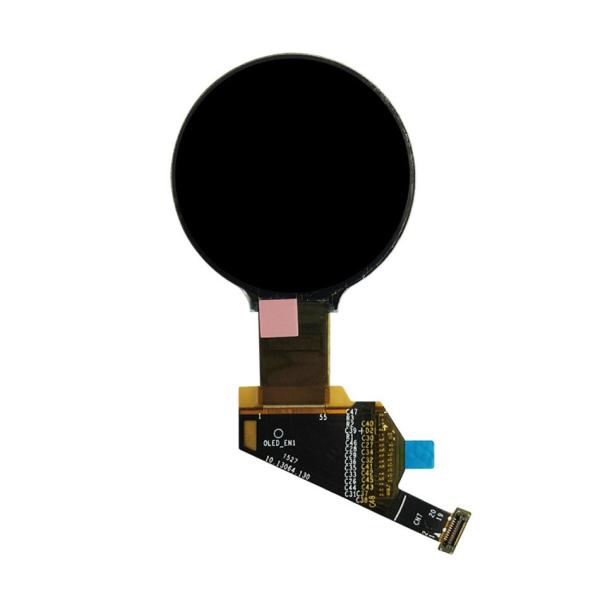

Product Images
1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D 1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D 1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D 1.39 Inch Round AMOLED Display 400X400 Dots 20 Pins Mipi Interface Driving IC RM69080 300c/D
AMOLED Display Advantages
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
AMOLED Display Considerations

AMOLED is more expensive than LCD and TFT, has a shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.

Huaxin Technology Advantages

Factory Location: Inland city with cost-effective operations

Equipment: Most advanced new equipment ensuring stable quality

Processes: Fully automatic equipment for efficiency and stable quality

Expertise: Professional engineers with 20+ years experience in LCD field

Customization: Self-design capability for customized products

Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Information

Company: Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi

Founded: 2009

Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, OLED

LCD Types: VA, TN, HTN, STN, FSTN, CSTN and other series

LCM Types: COB, TBA, COG, TP, LED backlight and other series

Registered Capital: Twenty million

Employees: 500+

R&D Staff: 10%

QC Staff: 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and Monitors
  • Automotive display
  • Medical and smart home
Power Efficiency Comparison

Power Consumption: AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power. LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.

Content Dependency: AMOLED displays are more power-efficient for content with dark areas as pixels can be turned off. LCD/LED displays consume constant power as the backlight remains active.

Brightness Control: AMOLED can dynamically adjust pixel brightness for better efficiency in low-brightness scenarios. LCD/LED displays typically have fixed backlight brightness.

Display Size: AMOLED is more power-efficient for smaller displays as consumption scales with pixel count. Larger LCD/LED displays may require more power-hungry backlights.
