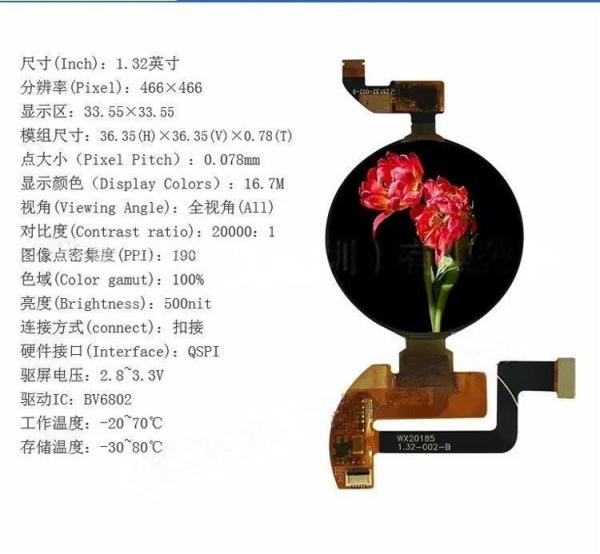

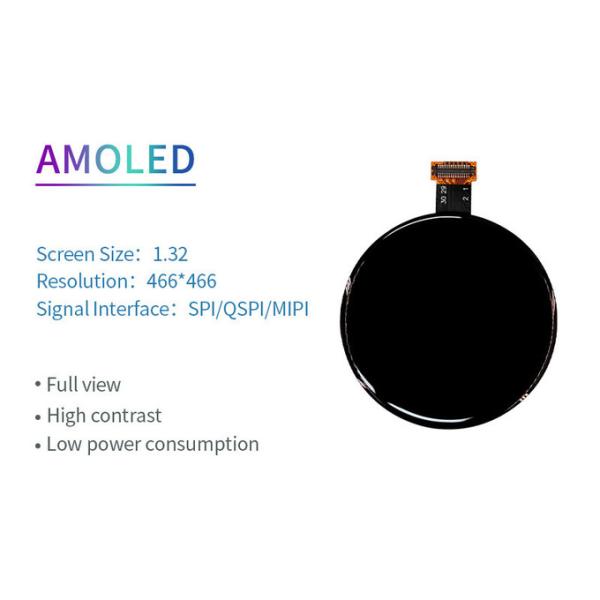

HX0132FMST02 is a 1.32 inch AMOLED OLED screen module with 466×466 resolution, SPI/QSPI/MIPI interface, brightness of 600 cd/m², and OLED display IC CO5300.

• Perfect Blacks & Infinite Contrast
• Vibrant Colors & Wide Gamut
• Ultra-Fast Response Times
• Flexibility & Thin Designs
• Energy Efficiency
• Always-On Displays (AOD)
• Superior Viewing Angles
• HDR Performance

AMOLED is extremely expensive compared to LCD and TFT, has a shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.

• Factory base located at inland city which has cost effective
• Most advanced new equipment which can keep quality stable
• Most processes using fully automatic equipment which has efficiency and stable quality
• Professional engineers and production leaders who work in LCD field for more than 20 years
• Self design for customized product

• ISO14001
• ISO9001/IATF16949
• SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

• Location: Hubei, Enshi
• Date of foundation: 2009
• High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
• LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
• LCM includes: COB, TBA, COG, TP, LED backlight and other series
• Register capital: Twenty million
• Current staff: 500+
• R&D accounts for 10%
• QC accounts for 15%

• Smartphones and tablets
• Wearables (smartwatches like Apple Watch)
• AR/VR headsets
• Television and Monitors
• Automotive display
• Medical and smart home

• AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
• LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.

• AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.
• LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.

• AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.
• LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness.

• AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.
• Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
