1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
1.43 Inch Round AMOLED Display 466x466 Self-Emitting With High Contrast
Specifications
Brand Name :
HuaXin
Model Number :
HX143LX008R
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$7.8~$7.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AMOLED Display Module
Name :
Touch Panel AMOLED
Display size :
1.43 inch
Resolution :
3466*466
interface :
QSPI (MIPI Optional)
Driving IC :
CO5300/CST820
Brightness :
450C/D
view angle :
all
Description
1.43 Inch Round AMOLED Display 466x466 Resolution Self-Emitting With High Contrast
Product Specifications
Attribute Value
Display Technology AMOLED Display Module
Name Touch Panel AMOLED
Display size 1.43 inch
Resolution 3466*466
Interface QSPI (MIPI Optional)
Driving IC CO5300/CST820
Brightness 450C/D
View angle All
Product Overview

HX143LX009R is a 1.43-inch 466PPI AMOLED Ultra HD Round Screen with 466x466 Resolution, MIPI Interface - Exclusive Display Module for Smart Wearables.

Technical Parameters
Part No: HX143LX009R
Display Mode 1.43 inch AMOLED display
Outline size(mm) 41.96*41.96*2.26mm
AA size(mm) 36.35mm*36.35mm
Display dots 466*466
View Angle ALL
Interface QSPI (MIPI Optional)
Brightness 450C/D
Working temp -20~70
Storage temp -30~80
Driving IC CO5300/CST820

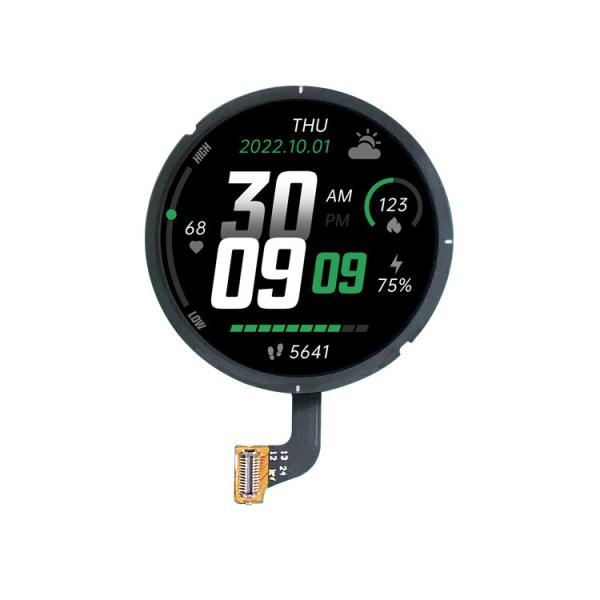

Product Images

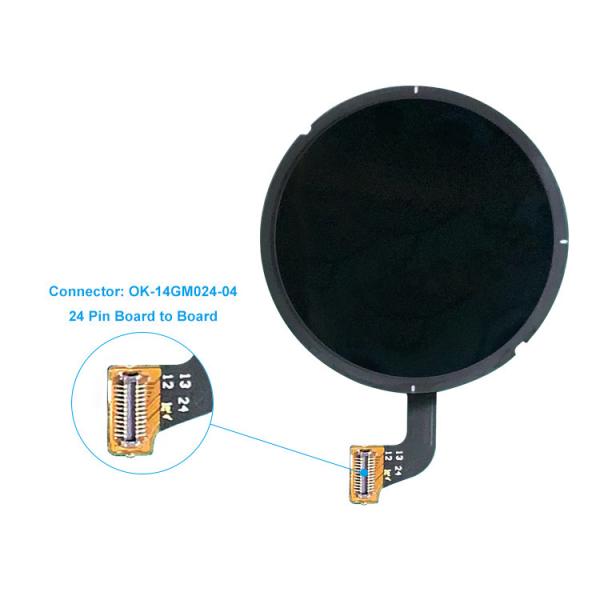

Drawing & Pin Definition
AMOLED Technology Overview

Key Advantages of AMOLED Technology:

  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance

AMOLED Disadvantages:

  • Extremely expensive compared to LCD and TFT
  • Lifetime is shorter than LCD and TFT
  • Lower peak brightness in sustained use
Manufacturer Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product

Certifications:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Company Information:

  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Register capital: twenty million
  • Current staff: 500+
  • RD accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and Monitors
  • Automotive display
  • Medical and smart home
Power Efficiency Comparison

How does the power efficiency of AMOLED displays compare to other display technologies?

1. Power Consumption:

  • AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
  • LCD and LED displays, on the other hand, require a constant backlight that consumes power regardless of the displayed content.

2. Content Dependency:

  • AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.
  • LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.

3. Brightness Control:

  • AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.
  • LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness.

4. Display Size:

  • AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.
  • Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
