Specifications
Brand Name :
HuaXin
Model Number :
HX0143MASBCEX
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$7.1
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
Color Oled
Name :
oled display panel
size :
1.43
Resolution :
466*466
Brightness :
400
interface :
QSPI
Driving IC :
ICNA3310
view angle :
all
Description
1.43 Inch Round OLED Screen 466x466 Resolution 24 Pin QSPI Interface 400 Cd/M2
Product Specifications
Attribute Value
Display Technology Color OLED
Name OLED Display Panel
Size 1.43 inch
Resolution 466×466
Brightness 400 cd/m²
Interface QSPI
Driving IC ICNA3310
View Angle All View
HX0143MASBCEX is a 1.43 inch AMOLED round display module with 466×466 resolution, 24 Pin QSPI interface, brightness of 400 cd/m², driving IC ICNA3310 and touch screen IC FT3168.
Detailed Product Parameters
Part NO. HX0143MASBCEX
Display Technology AMOLED
Diagonal Screen Size 1.43 INCH
Resolution 466(W)×466(H)
Viewing Angle All View
Operation Temperature -20°C ~ 60°C
Panel Size (mm) 44.70(W)×44.70(H)×2.06(t)
Active Area (mm) φ36.35
Pixel Pitch (mm) 0.0702(W)×0.0702(H)
Contrast Ratio 10000:1
Brightness 400 cd/m²
Interface 24 Pin QSPI
Drive IC ICNA3310
Touch Panel IC FT3168
TP Type On cell

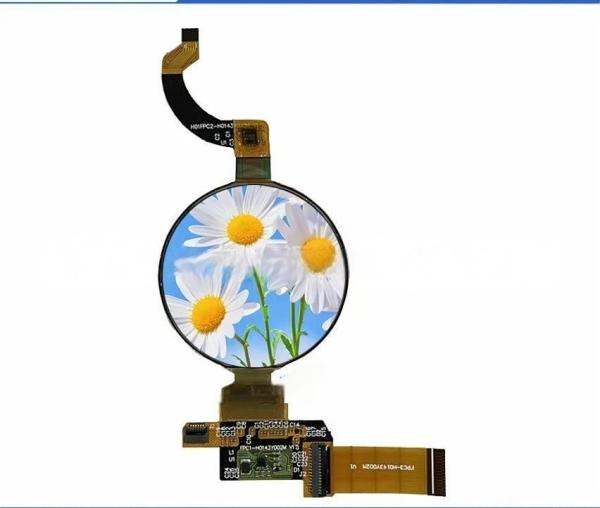

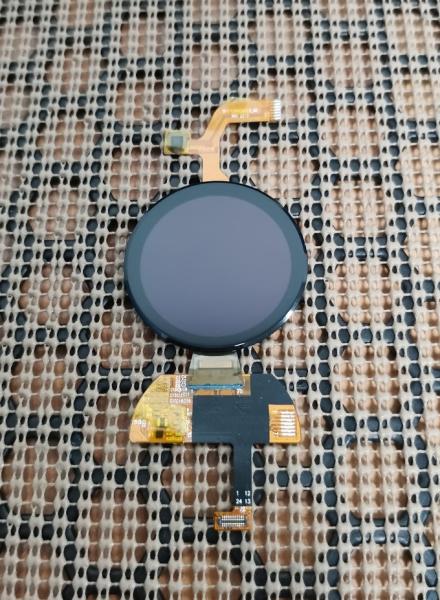

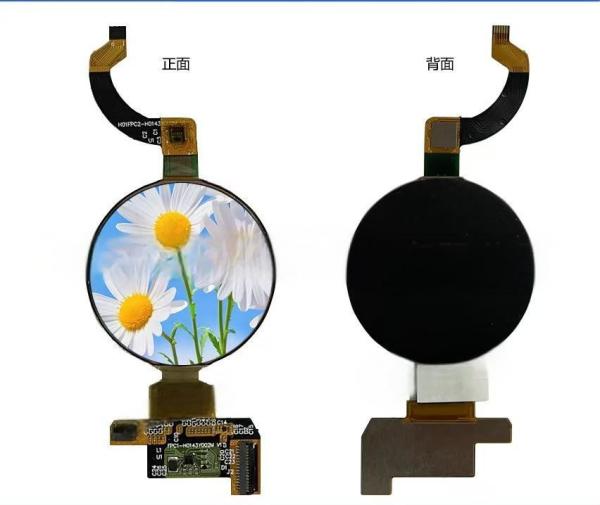

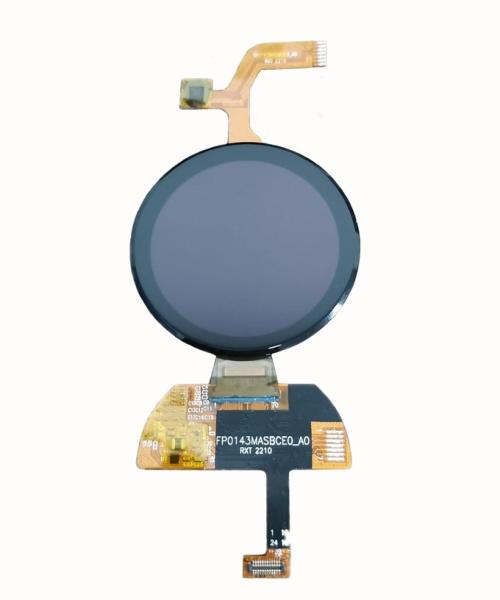

Product Images
1.43 Inch Round Oled Screen 466x466 Resolution 24 Pin QSPI Interface 400 Cd/M2
1.43 Inch Round Oled Screen 466x466 Resolution 24 Pin QSPI Interface 400 Cd/M2
1.43 Inch Round Oled Screen 466x466 Resolution 24 Pin QSPI Interface 400 Cd/M2
1.43 Inch Round Oled Screen 466x466 Resolution 24 Pin QSPI Interface 400 Cd/M2
Drawing & Pin Definition
1.43 Inch Round Oled Screen 466x466 Resolution 24 Pin QSPI Interface 400 Cd/M2
OLED Product Knowledge
The key advantages of AMOLED (Active-Matrix Organic Light-Emitting Diode) displays include:
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
AMOLED Disadvantages
AMOLED is more expensive than LCD and TFT, has shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.
Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product
Our Certificates
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Huaxin Technology (Enshi) Co., LTD
- Hubei, Enshi
- Date of foundation: 2009
- High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB, TBA, COG, TP, LED backlight and other series
- Register capital: twenty million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and Monitors
  • Automotive display
  • Medical and smart home
Power Efficiency Comparison
How does the power efficiency of AMOLED displays compare to other display technologies?
Power Consumption
AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power. LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.
Content Dependency
AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power. LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.
Brightness Control
AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios. LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness.
Display Size
AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels. Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
