1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
Specifications
Brand Name :
HuaXin
Model Number :
ESHX1041535A0
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$6.4
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display technolog :
AMOLED screen
Name :
Amoled panel
size :
1.04 inch
resolution :
340*340
interface :
SPI
brightness :
600C/D
Driving IC :
CO5300-AF
Description
1.04 Inch Round AMOLED Display Module

High-resolution 340×340 dot AMOLED display with SPI interface and CO5300-AF driving IC, offering 600 nits brightness and all-view angle visibility.

Key Specifications
Attribute Value
Display Technology AMOLED screen
Size 1.04 inch
Resolution 340×340 dots
Interface SPI
Brightness 600 cd/m²
Driving IC CO5300-AF
Technical Parameters
Part No. ESHX1041535A0
Outline Size 29.25(W) × 28.9966(H) mm
Active Area Size 26.35 × 26.53 mm
View Angle All

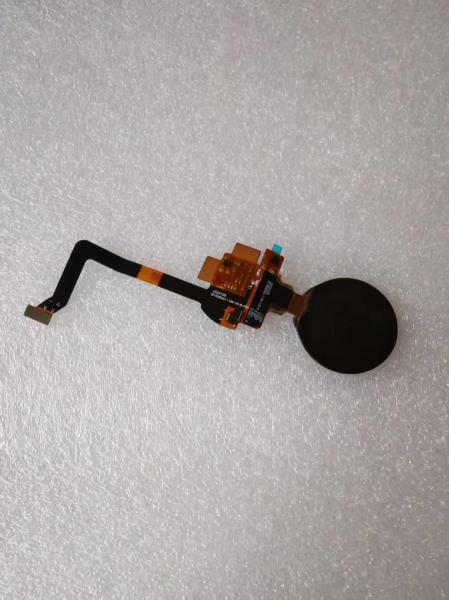

Product Images
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF 1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF 1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF 1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF 1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
Pin Definition Diagram
1.04 Inch Round Oled Screen Round AMOLED Panel 340*340 Dots SPI Interface Driving IC CO5300-AF
AMOLED Technology Overview
Advantages
  • Perfect blacks & infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Superior viewing angles
  • Excellent HDR performance
Considerations
  • Higher cost compared to LCD/TFT
  • Shorter operational lifetime
  • Lower peak brightness in sustained use
Power Efficiency Comparison
  • Content-dependent efficiency: AMOLED consumes power per pixel, saving energy on dark content
  • Brightness control: Dynamic pixel brightness adjustment improves low-light efficiency
  • Size impact: More efficient for smaller displays where pixel count is lower
  • Backlight difference: LCD/LED require constant backlight regardless of content
Manufacturer Advantages
  • Cost-effective inland manufacturing base
  • Advanced automated production equipment
  • 20+ years of LCD industry expertise
  • Custom design capabilities
  • ISO 14001, ISO 9001, IATF 16949, and SGS certified
Huaxin Technology (Enshi) Co., LTD

Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

  • Registered capital: 20 million
  • 500+ employees (10% R&D, 15% QC)
  • Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
  • LCM capabilities: COB, TBA, COG, TP, LED backlight
Production Capacity
Product 2021 2022 2023 2024 2025
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
