1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
Specifications
Brand Name :
HuaXin
Model Number :
HX128ON1411
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$6.4~$5.9
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display technolog :
round AMOLED
Name :
Amoled screen
size :
1.28 inch
resolution :
360X360
interface :
QSPI
brightness :
400C/D
Driving IC :
GC9C01
Description
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
Technical Parameters
Part No: HX128ON1411
display Mode 1.28 inch round AMOLED display
outline size(mm) 35.88(H) ×38.44(V)×1.6(T)
AA size(mm) 33.48*33.48
Display dots 360X360
view Angle ALL
Brightness 400C/D
interface QSPI
Driving IC GC9C01

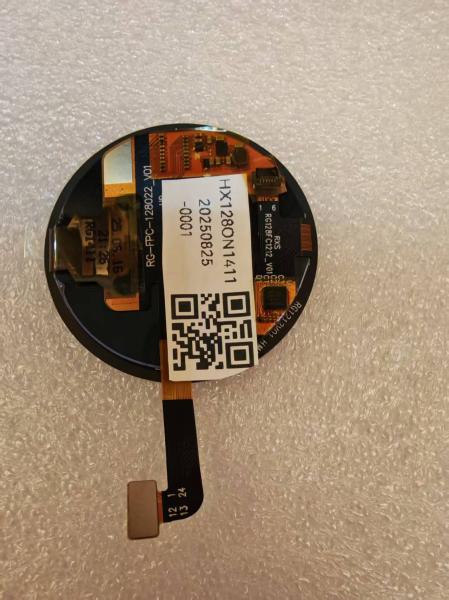

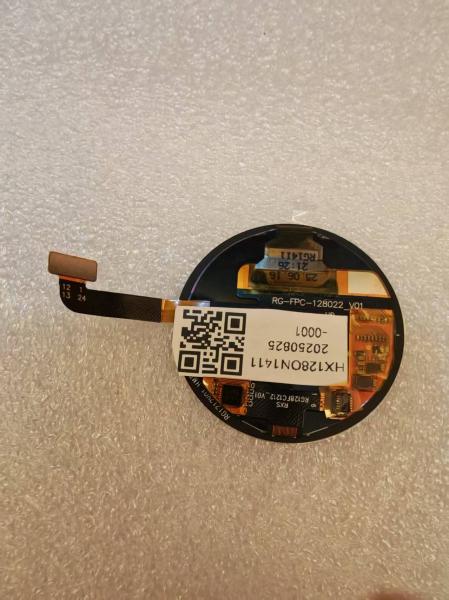

Product Images

1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01




Technical drawing
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

AMOLED Technology Overview
Advantages
  • Perfect blacks & infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Superior viewing angles
  • Excellent HDR performance
Considerations
  • Higher cost compared to LCD/TFT
  • Shorter operational lifetime
  • Lower peak brightness in sustained use
Power Efficiency Comparison
  • Content-dependent efficiency: AMOLED consumes power per pixel, saving energy on dark content
  • Brightness control: Dynamic pixel brightness adjustment improves low-light efficiency
  • Size impact: More efficient for smaller displays where pixel count is lower
  • Backlight difference: LCD/LED require constant backlight regardless of content
Manufacturer Advantages
  • Cost-effective inland manufacturing base
  • Advanced automated production equipment
  • 20+ years of LCD industry expertise
  • Custom design capabilities
  • ISO 14001, ISO 9001, IATF 16949, and SGS certified
Huaxin Technology (Enshi) Co., LTD

Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

  • Registered capital: 20 million
  • 500+ employees (10% R&D, 15% QC)
  • Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
  • LCM capabilities: COB, TBA, COG, TP, LED backlight
Production Capacity
Product 2021 2022 2023 2024 2025
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
