Specifications
Brand Name :
HuaXin
Model Number :
HX119XHON1411
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$6.4~$5.9
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display technolog :
round AMOLED
Name :
Amoled screen
size :
1.19 inch
resolution :
390X390
interface :
MIPI/SPI
Description
1.19" Circular AMOLED (OLED) Screen, 390×390, Low Power, MIPI/SPI for Smart Watches/Medical Devices
Technical Specifications
Parameter Value
Part No. HX119XHON1411
Display Mode 1.19 inch round AMOLED display
Outline Size (mm) 33.22(H) × 34.72(V) × 0.68(T)
AA Size (mm) 33.22 × 34.72
Display Dots 390 × 390
View Angle ALL
Interface MIPI/SPI
Driving IC GC9C01

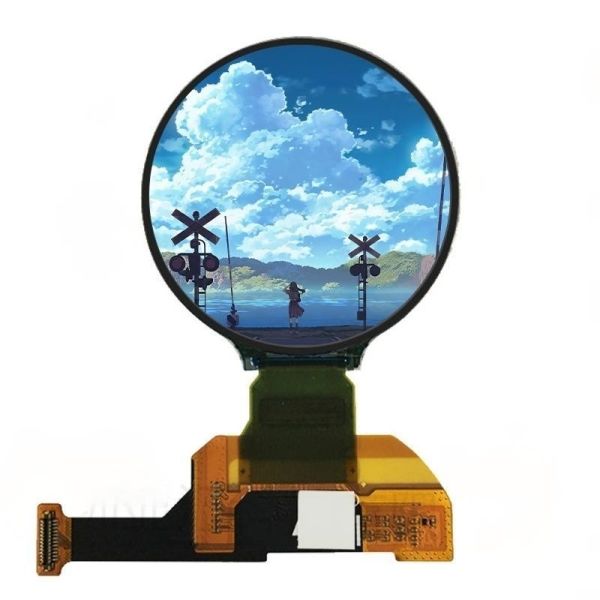

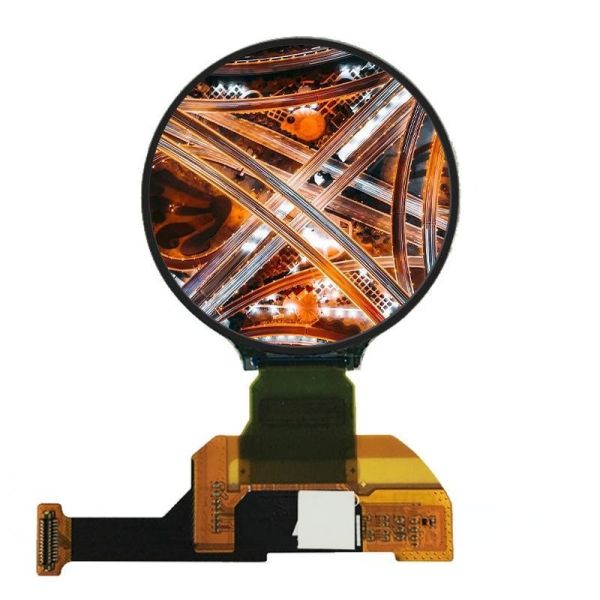

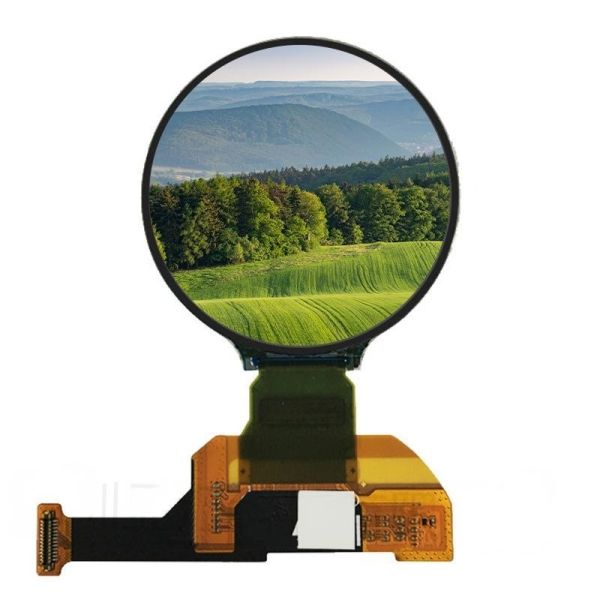

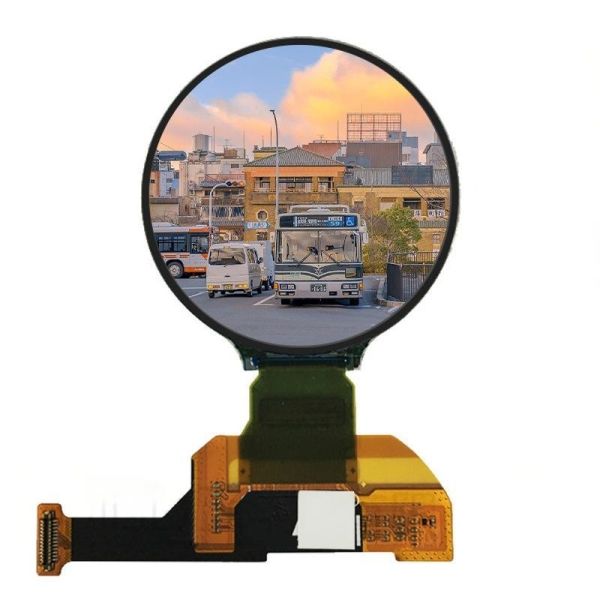

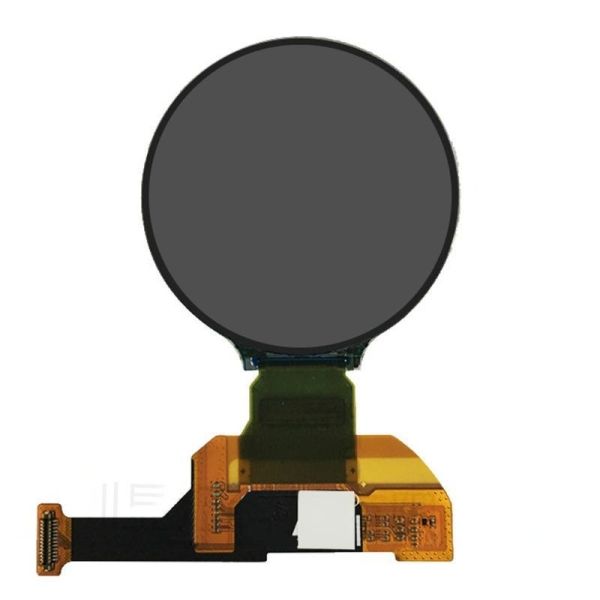

Product Images

1.19
1.19
1.19
1.19
1.19

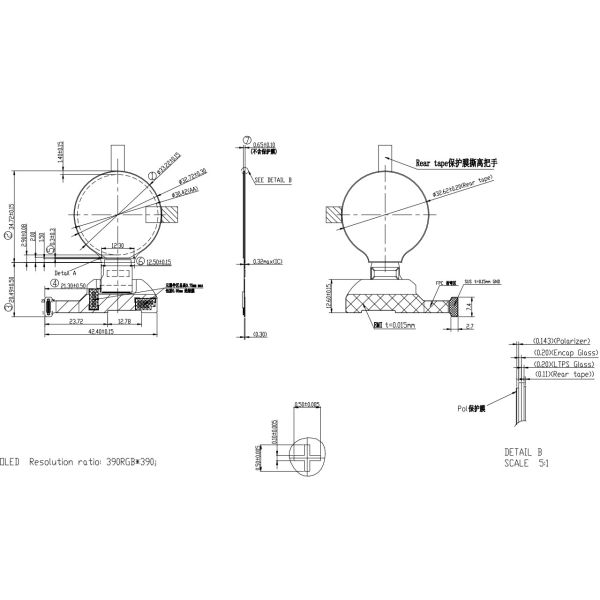

Technical Drawing

1.19
1.19
AMOLED Technology Overview
Key Advantages
  • Perfect blacks & infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Superior viewing angles
  • Excellent HDR performance
Technical Considerations
  • Higher cost compared to LCD/TFT
  • Shorter operational lifetime
  • Lower peak brightness in sustained use
Power Efficiency Comparison
  • Content-dependent efficiency: AMOLED consumes power per pixel, saving energy on dark content
  • Brightness control: Dynamic pixel brightness adjustment improves low-light efficiency
  • Size impact: More efficient for smaller displays where pixel count is lower
  • Backlight difference: LCD/LED require constant backlight regardless of content
Manufacturer Advantages
  • Cost-effective inland manufacturing base
  • Advanced automated production equipment
  • 20+ years of LCD industry expertise
  • Custom design capabilities
  • ISO 14001, ISO 9001, IATF 16949, and SGS certified
About Huaxin Technology (Enshi) Co., LTD
Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.
  • Registered capital: 20 million
  • 500+ employees (10% R&D, 15% QC)
  • Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs
  • LCM capabilities: COB, TBA, COG, TP, LED backlight
Production Capacity (k units/day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
