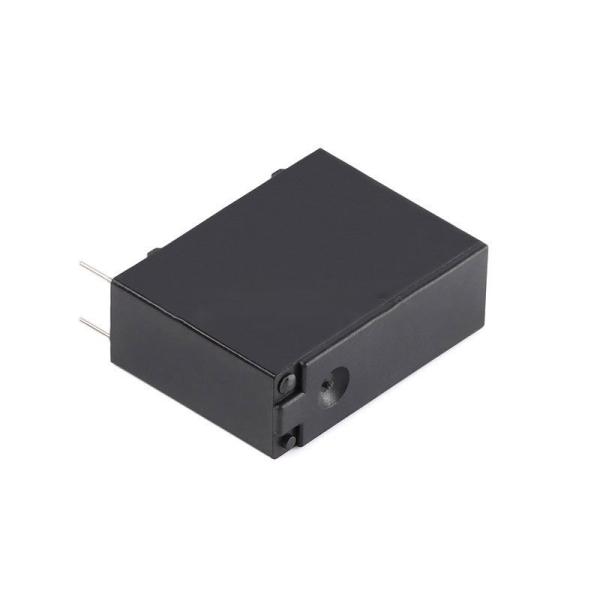

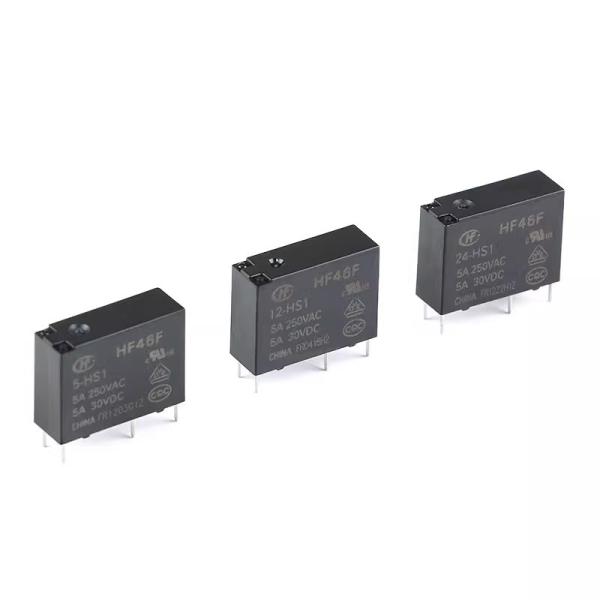

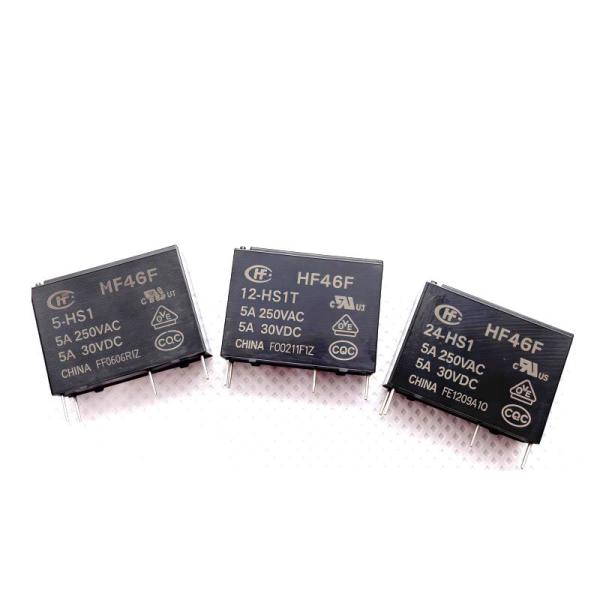

Ultra-small medium power relay HF46F series

The width of the 5A contact switching capability does not exceed 7.2mm, suitable for high-density installation. The surge voltage resistance between the coil and the contact is 10kV, meeting the enhanced insulation requirements of VDE0631. High sensitivity Power consumption is only 200mm. Insulation class: F-class insulation class is available for selection. Environmentally friendly products (compliant with RoHS). Dimensions :(20.5x7.2x15.3)mm

Performance parameters

Insulation resistance

Medium pressure resistance

The coil and the contact are disconnected between the contacts

Surge voltage (between the coil and the moving contact) Operating time (at rated voltage)

Release time (at rated voltage)

Impact (1

Stability

"Strength"

Vibration (1

Humidity

Temperature range

Lead-out method

Weight

Encapsulation method

1000M2 (500VDC

4000VAC 1 min

1000VAC 1 min

10kV (1.2/50us

<10ms

<10ms

98m/s?

980m/s?

10Hz to 55Hz, 1.5mm dual amplitude

5%~85%RH

-40℃~85°C

Printed plate type

About 39

Plastic-sealed type

Contact form

Contact resistance

Contact material

Contact load (resistive

Maximum switching voltage

Maximum switching current

Maximum switching power

Mechanical durability

Electrical durability

1H

<100m2(1A 6VDC)

AgSnO2, AgNi

3A 250VAC130VDC

5A 250VAC/30VDC

277VAC /30VDC

5A

1385VA/150W

5x10 "times

1x 10' times (AgNi, 5A 250VAC resistive load, 85℃, 1s on, 1s off)5x10 times (AgSnO2,5A 250VAC resistive load, 85℃, 3s on, 3s off)
