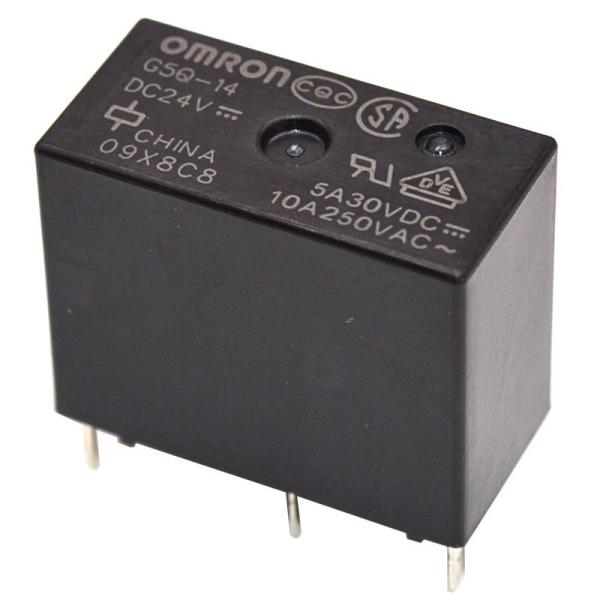

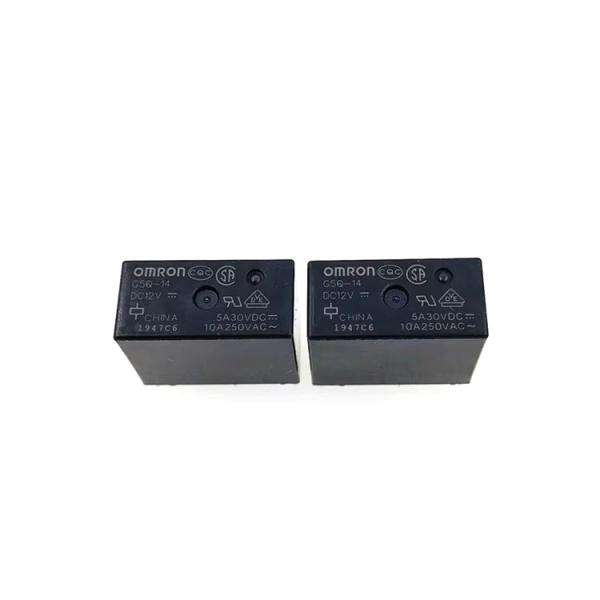

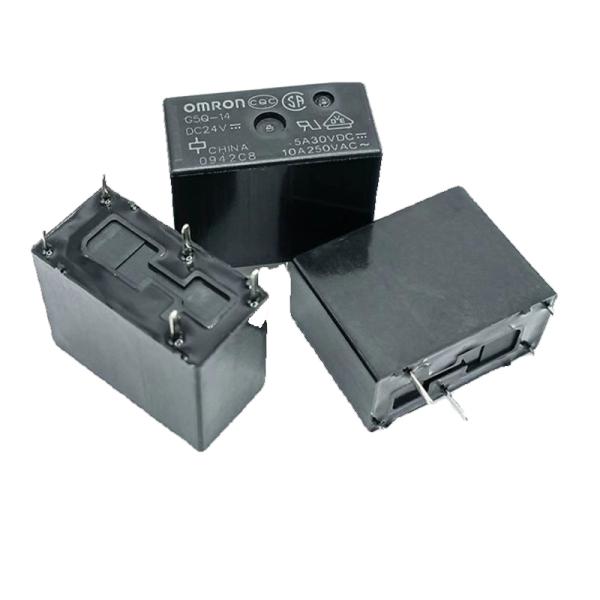

Miniature Power Relay with 1-pole 10A Switching Capacity G5Q-14

Miniature Power Relay with
1-pole 10A Switching Capacity
• Excellent switching performance for a variety of loads.
• Small, yet provides 8-kV impulse withstand voltage (between coil
and contacts).
• Low coil power consumption (SPST-NO: 200 mW, SPDT: 400 mW)
• Coil insulation system: Class F (UL1446).
• IEC/EN 60335-1 conformed. (-HA Model)
• Reduced power consumption with voltage holding and pulse width
modulation (PWM) control (Only for G5Q-@-PW model)

●Coil Voltage Reduction (Holding Voltage) after Relay
operation
• If the coil voltage is reduced to the holding voltage after relay
operation, first apply the rated voltage to the coil for at least
100 ms, as shown below.
• A voltage of at least 40% (G5Q-1A type) /30% (G5Q-1 type) of
the rated voltage is required for the coil holding voltage.
Do not allow voltage fluctuations to cause the coil holding volt
age to fall below this level.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
