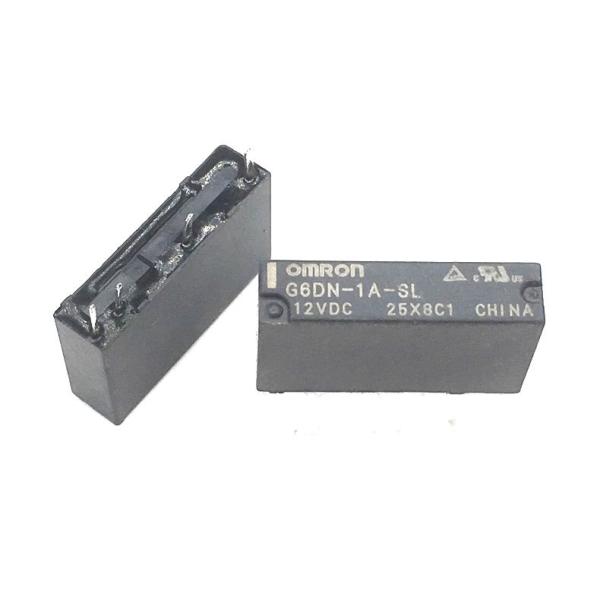

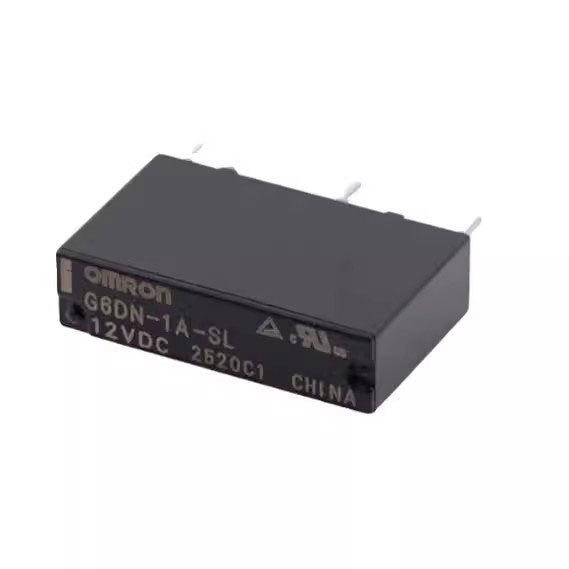

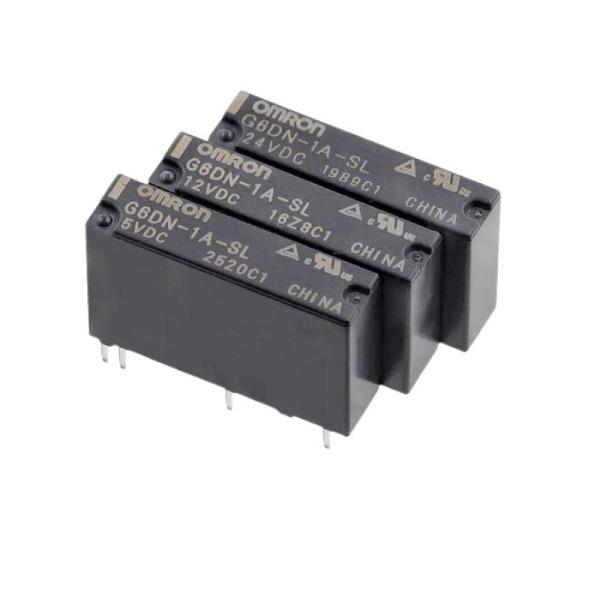

General Purpose Relays Slim PCB Power Relay SPST 5A Power Relay G6DN-1A-SL Series

• Slim 5-mm width and miniature size. (20 × 5.08 × 12.5 mm)• High switching capability 5 A (250 VAC and 30 VDC), andhigh contact reliability by crossbar-twin contact.• Low power consumption 110 mW.• Meets application standards EN61010-1 and EN61010-2-201 forreinforced insulation (CTI 600 V min. and Rated insulationvoltage 300 V). (Except G6DN-1A-CF Models)• Actualize electrical durability 100 Kops (-L type)• Lineup of high temperature types with an ambient temperatureof 105°C (-CF type)

Application Examples• Programmable Controller output• Temperature Controller• Building Automation• Output of control system

Approved StandardsThe rated values approved by each of the safety standards may be different from the performance characteristics individually definedin this datasheet.UL/C-UL-approved models

MountingWhen mounting a number of relays on a PCB in 90°C to 105°C,be sure to provide a minimum mounting space of 1.27 mm min.as shown below.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
