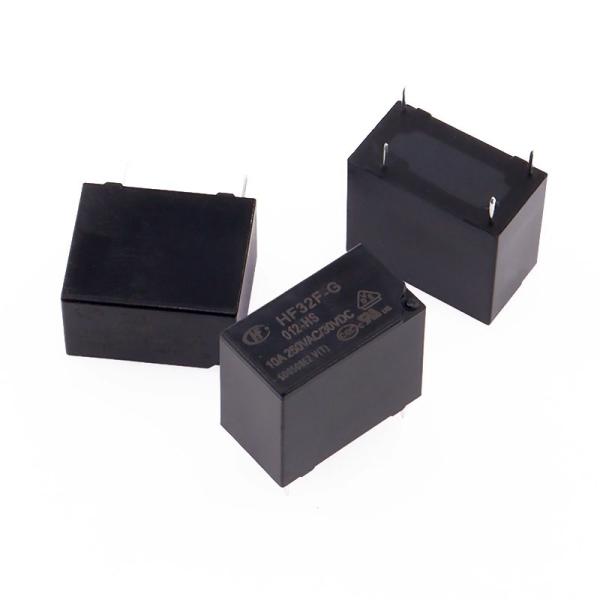

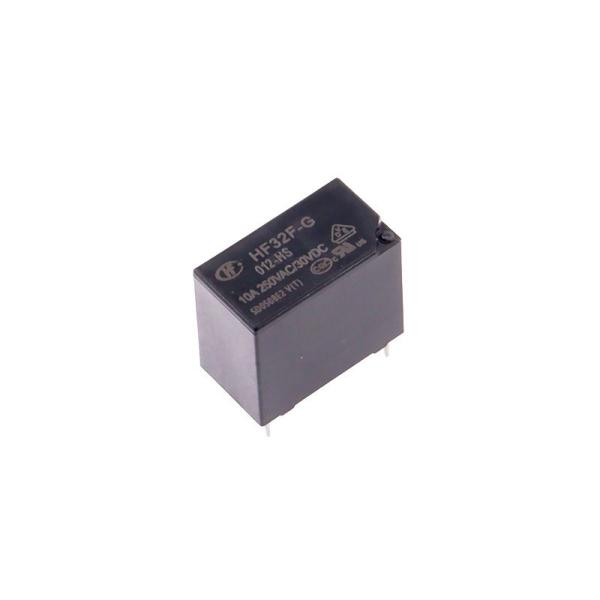

Ultra-small Medium Power Relay JZC-32F HF32F Series

The 10A contact switching capability features one set of normally open and one set of convertible contact forms. The standard printed circuit board lead-out pins are available in two packaging methods: plastic encapsulation type and solder mask type. We can provide environmentally friendly products (compliant with RoHS). Dimensions: 18.4x10.2x15.3mm

Contact form

Contact resistance

Contact material

Contact load (resistive

Maximum switching voltage

Maximum switching current

Maximum switching power

Mechanical life

Electrical life

1H, 12

100mQ (1A 6VDC)

AgNi, AgCdo

1H

Standard type

H:

5A 250VAC5A 30VDC10A 125VACHQ:8A 250VAC

Sensitive type

HL:

3A 250VAC3A 30VDC

HLQ:

8A 250VAC

twelve

Standard type

3A 250VAC

3A 30VDC

250VAC/30VDC

10A

1250VA/150W

1 × 107 times

1x10' times

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
