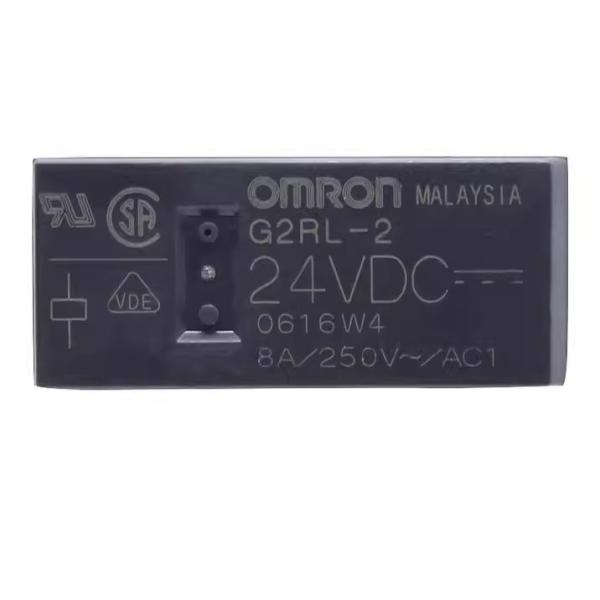

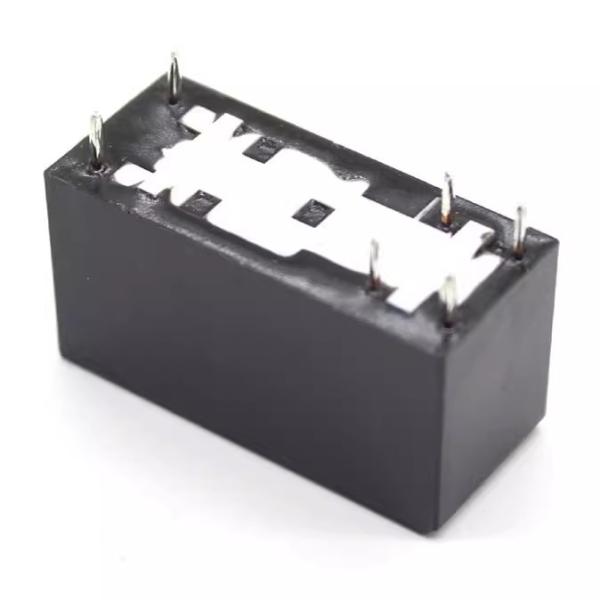

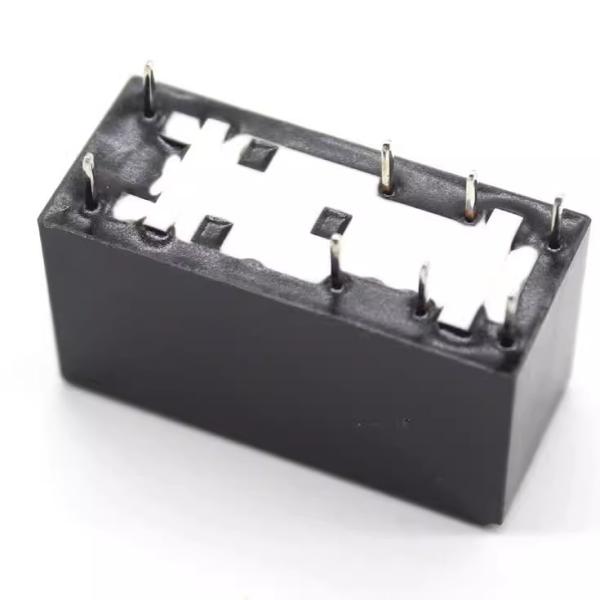

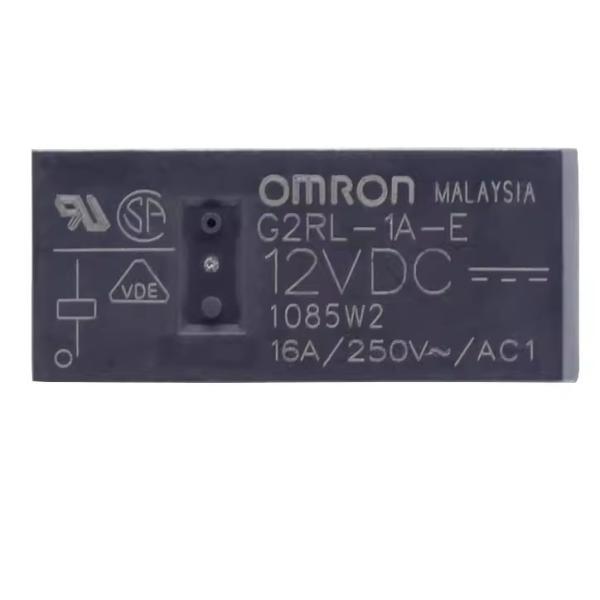

General Purpose Relays SPDT PCB Power Relay G2RL-1-E Series

• A wide variety of single pole, double pole, high-capacity (16 A)type and high-sensitivity type (250 mW) relays are available.• IEC/EN 60335-1 conformed. (-HA Model)• Satisfies ambient operating temperature requirement of 85°Cand 105°C (-CV Model).• Clearance and creepage distance: 8 mm / 8 mm min.• G2RL-1(A)-E-ASI: TV3 rating models available.• IEC/EN 60079-15 conformed(Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models).• Reduced power consumption with voltage holding and pulsewidth modulation (PWM) control (only for G2RL-@-PW1 model).

Application Examples• Home appliances• OA equipment• Industrial machinery

The approval rating values for overseas standards are different from the performance values determined individually. Confirmthe values before use.

● Mounting Position Compared to G2R Model• Although the G2RL model and the G2R model are both lowprofile relays, their characteristics such as switching capacityare different. Be sure to check operation under the actualoperating conditions before use.●Cleaning• The G2RL model is flux-resistant with two sealing holes on thecase. Thus, do not clean the relay by boiling or soaking inwater. Consult your Omron sales representative for sealedtype relay.●Using Relays in an Atmosphere Containing CorrosiveGas• Do not use relays in an atmosphere containing corrosive gas(sulfuric or organic gas). Otherwise, connection failure due tocorrosion on the contact surface may lead to functional faults.●Coil Voltage Reduction (Holding Voltage) after RelayOperation• If the coil voltage is reduced to the holding voltage after relayoperation, first apply the rated voltage to the coil for at least100 ms, as shown below.• A voltage of at least 55% of the rated voltage is required forthe coil holding voltage. Do not allow voltage fluctuations tocause the coil holding voltage to fall below this level.

●Power consumption reduction of coil with pulse widthmodulation (PWM)• Models with PWM drive capability (-PW1) can reduce coilholding current with PWM control. This function reduces powerconsumption by reducing the current held by coil.• Apply the rated voltage for at least 100 ms at the time of relayoperation.• The following are our verification conditions. When using, it besure to check the actual machine under the actual usageconditions.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
