Fully Autonomous Solar Powered AIS AtoN Device Beidou Remote Monitoring Control
Fully Autonomous Solar Powered AIS AtoN Device Beidou Remote Monitoring Control
Fully Autonomous Solar Powered AIS AtoN Device Beidou Remote Monitoring Control
Fully Autonomous Solar Powered AIS AtoN Device Beidou Remote Monitoring Control
Specifications
Brand Name :
Dexonmarine
Model Number :
DX902S
Certification :
ISO9001,IEC, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
usd$2000-3000
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Packaging Details :
cartons/pallets
Solar Panel :
5.5W
Battery :
84Wh
Waterproof :
IP68
Message :
Message 21, 6, 8, 14; supports multiple formats
Lifespan :
15 years
Installation Method :
Screw Mounting
Materia :
FRP (Fiberglass Reinforced Plastic)
Transmission distance :
15-25nm
Certifications :
CE, RoHS, ISO,IEC, IALA
Applications :
Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
Service :
Logo OEM , customized detailed requiements
Description

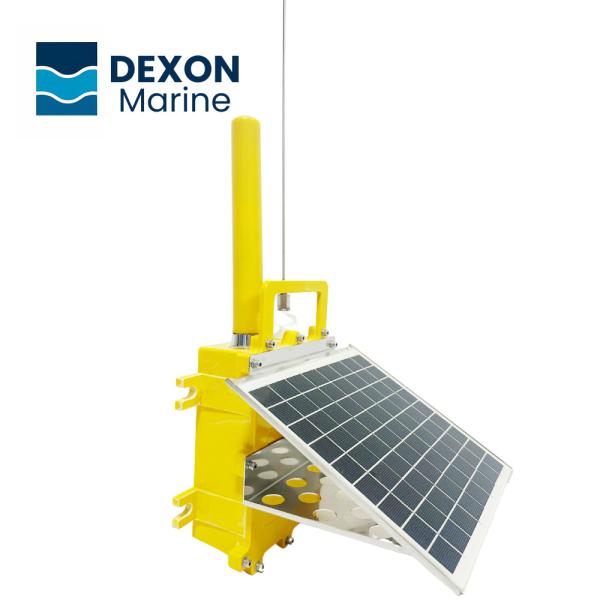

DX902S Solar-powered Beidou AtoN – Portable, Self-Powered, Remote-Controlled Navigation Aid

The DX902S is a fully autonomous solar-powered AIS AtoN device, developed as an upgrade of the DX901 platform. It eliminates the need for external power sources by integrating a high-efficiency solar energy system, enabling continuous AIS functionality in remote or off-grid marine environments.

Built with a patented 316 stainless steel antenna, the DX902S ensures corrosion resistance and superior durability in harsh maritime conditions. Its low-power AIS transmission system offers an impressive range of 20–25 nautical miles, with independent signal transmission and reception, requiring no external energy input or onshore base station support.

Ideal for offshore buoys, isolated channels, and remote navigational infrastructure, the DX902S provides a dependable, maintenance-reducing solution for modern maritime safety systems.

Fully Autonomous Solar Powered AIS AtoN Device Beidou Remote Monitoring Control

KEY ADVANTAGES

  • Beidou-based remote telemetry and control
  • Solar-powered & self-sustaining design
  • Global first patented structure, IP68-grade waterproofing
  • No dependency on base stations or other infrastructure
  • Suitable for inland & coastal deployments in Beidou-covered regions

TECHNICAL DATA

Category Specification Details
Overall Features Operating Voltage DC 5.5V–8.4V
Charging Method Solar Panel, Charger
Dimensions 650mm (H) × 175mm (W) × 60mm (D)
Waterproof Level IP68
Operating Temperature -35°C to +60°C
Transmission Interval Adjustable
Weight ≤2.5kg
Interface RS232
Accessories Stainless steel mounting components
AIS Features Operating Frequency 161.975MHz, 162.025MHz
Modulation Mode GMSK/FSK
Frequency Error ±0.5kHz
Transmission Power ≤6W
Receiving Sensitivity ≤−110dBm
Average Power Consumption Continuous mode ≤1W (Low power mode ≤0.7W)
Message Format Messages 21 and 6, intervals adjustable
Operating Mode Mode 3 (FSTDMA, RATDMA, SOTDMA adjustable; default SOTDMA autonomous mode)
Beidou Features Communication Module Beidou Gen-1 & Gen-3 Communication Modules
Positioning Module GPS + Beidou Dual-mode
Transmission Power 5W
Average Power Consumption Continuous mode ≤0.3W

Drawings (mm)

Fully Autonomous Solar Powered AIS AtoN Device Beidou Remote Monitoring Control
