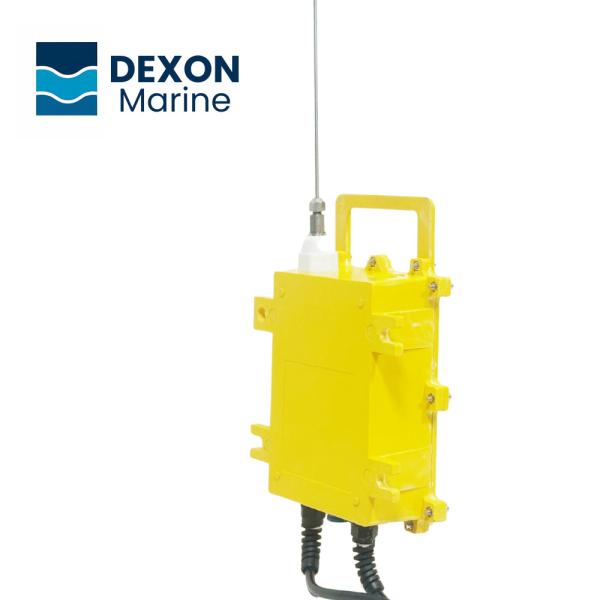

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant
Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant
Specifications
Brand Name :
Dexon
Model Number :
DX091
Certification :
CE、RoHS、ISO、IEC、IALA、IMO
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 2000~3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Power Consumption :
Continuous mode: ≤1W ｜ Low-power mode: ≤0.7W
Transmission Power :
Selectable: 6W or 12.5W
Operating Mode :
SOTDMA, FATDMA, RATDMA (adjustable)
Message Format :
Message 21, 6, 8, 14（adjustable: ）, supports multiple formats
Operating Temperature :
-35°C to +60°C
Protection Level :
IP68
lifespan :
15 years
applications :
Navigation Buoys Lighthouses & Beacons Virtual AtoN Offshore Wind Farms Data Buoys Harbor Entrances & Fairway Control Maritime Administration & Coastal Surveillance Military or Emergency AtoN Deployment
Description
Real-time marine monitoring is made possible with this IMO/IEC-compliant
modular AIS AtoN device
Thanks to its flexible modular design, the DX901 is easy to integrate with existing marine infrastructure, such as buoys, lighthouses and data buoys. It is compatible with global AIS protocols (IMO/IEC standards) and can transmit real-time position, system health and status updates. Whether it is used for coastal navigation, offshore energy or government monitoring systems, it provides scalable, autonomous, AIS-based visibility worldwide.

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant

Core advantages

  1. Ultra-low static power consumption under 2mA—perfect for autonomous, long-term deployments.
  2. Transmits AIS signals over 20+ nautical miles with <6W output—no base station required.
  3. Modular design integrates easily with buoys, beacons, and marine infrastructure.
  4. Supports real-time updates on position, system health, and status via AIS protocol.
  5. IMO/IEC-compliant and globally compatible with all AIS AtoN networks.
  6. Built for coastal, offshore, and remote monitoring—scalable AIS visibility at sea.

Technical specification

Category Specification Details
Main features
 Operating Voltage DC 8V–32V, intelligently compatible with DC 12V and 24V
Average Power Consumption Continuous mode: ≤1W ｜ Low-power mode: ≤0.7W
Message Format Adjustable: Message 21, 6, 8, 14; supports multiple formats
Operating Modes Default Mode3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA)
Interface RS-232
Waterproof Rating IP68
Temperature Operating:−35°C to +60°C ｜Storage:−40°C to +70°C
Environmental Humidity ≤99%
Charing & Load Current ≤10A
AIS features
Frequency Range 156.025MHz – 162.025MHz
Operating Frequency 161.975MHz, 162.025MHz
Modulation GMSK / FSK
Frequency Error ±0.5kHz
Transmission Power ≤12.5W (Selectable: 6W or 12.5W)
Receiver Sensitivity ≤−110dBm
Occupied Bandwidth 25kHz
Harmonic/Spurious Suppression ≤−70dBc
Weight/ Size
 Weight ≤2kg
Dimensions 281mm × 180mm × 69mm
Packaging Size 500mm × 224mm × 132mm
Virtual AtoN Supported

Drawings

Modular AIS AtoN Device Real Time Marine Monitoring IMO IEC Compliant

Application

  • Navigation Buoys
  • Lighthouses & Beacons
  • Virtual AtoN
  • Offshore Wind Farms
  • Data Buoys
  • Harbor Entrances & Fairway Control
  • Maritime Administration & Coastal Surveillance
  • Military or Emergency AtoN Deployment

FAQ

1, How low is the power consumption?
Ultra-low static draw under 2mA — ideal for long-term autonomous use.

2, What is the AIS transmission range?
Over 20 NM with <6W output — no base station needed.

3, Is it easy to install on marine infrastructure?
Yes. Modular design fits buoys, beacons, and coastal systems.

4, Does it support real-time updates?
Yes. Sends live position, system health, and status via AIS.

5, Is it globally compliant?
Fully IMO/IEC-compliant and compatible with all AIS AtoN systems.

6, What’s the size and shipping spec?
Device: 281×180×69 mm, ≤2kg. Boxed: 500×224×132 mm
