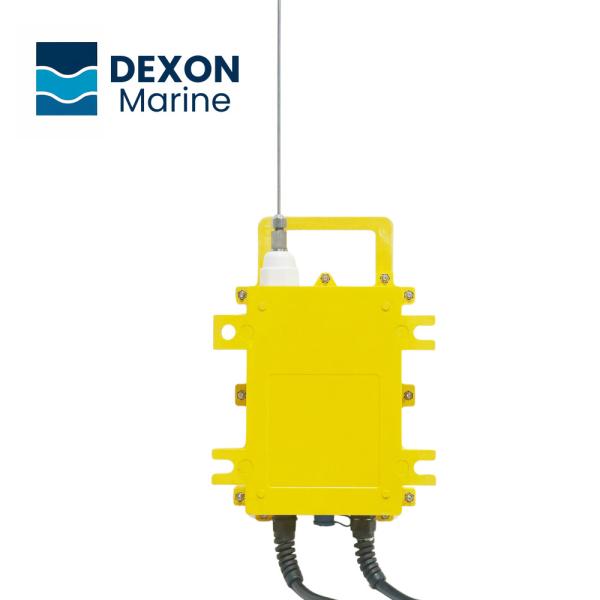

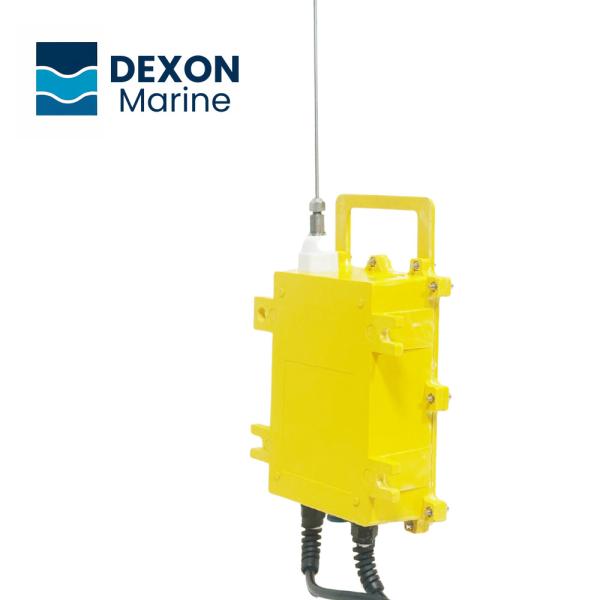

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated
Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated
Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated
Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated
Specifications
Brand Name :
Dexonmarine
Model Number :
DX091
Certification :
ISO9001,IEC, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
usd$2000-3000
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Packaging Details :
cartons/pallets
average operating current :
< 6mA
Static power consumption :
< 2mA
Waterproof :
IP68
AIS Transmission distance :
20-25nm
Function :
Can be installed together with the lantern or added later as needed. Provides AIS signal transmission and supports integration with remote monitoring platforms.
Message :
Message 21, 6, 8, 14; supports multiple formats
Voltage :
DC 8V–32V, intelligently compatible with DC 12V and 24V
Materia :
FRP (Fiberglass Reinforced Plastic)
Lifespan :
15 years
Installation Method :
Screw Mounting
Certifications :
CE, RoHS, ISO,IEC, IALA
Applications :
Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
Service :
Logo OEM , customized detailed requiements
Description

DX901 AIS AtoN System-Ultra-Low Power. 20NM AIS Reach. Independent Operation. IP68 Rated.

The DX901 is a modular AIS AtoN system that transmits and receives navigation and equipment status signals via AIS protocol, making it a perfect fit for global AIS-based monitoring networks. Engineered for ultra-low static power (<2mA) and transmission power under 6W, it achieves 20+ nautical miles of AIS communication without requiring shore-based infrastructure.

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated

KEY ADVANTAGES

  • AIS-based monitoring and remote diagnostics

  • Low power usage with long-distance signal reach

  • Fully autonomous operation of buoys and lights

  • Compatible with global AIS systems (IMO/IEC standard)

  • Flexible modular design for integration with existing marine infrastructure

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated

TECHNICAL DATA

Parameter Specification
Frequency Range 156.025MHz – 162.025MHz
Operating Frequency 161.975MHz, 162.025MHz
Modulation GMSK / FSK
Frequency Error ±0.5kHz
Transmission Power ≤12.5W (Selectable: 6W or 12.5W)
Receiver Sensitivity ≤−110dBm
Occupied Bandwidth 25kHz
Harmonic/Spurious Suppression ≤−70dBc
Power Supply Range DC 8V–32V, intelligently compatible with DC 12V and 24V
Average Power Consumption Continuous mode: ≤1W / Low-power mode: ≤0.7W
Message Format Adjustable: Message 21, 6, 8, 14; supports multiple formats
Operating Temperature −35°C to +60°C
Storage Temperature −40°C to +70°C
Environmental Humidity ≤99%
Waterproof Rating IP68
Charging Current ≤10A
Load Current ≤10A
Dimensions Height: 281mm × Width: 180mm × Thickness: 69mm
Packaging Dimensions Height: 500mm × Width: 224mm × Thickness: 132mm
Weight ≤2kg
Operating Modes Default: Mode 3 SOTDMA (Adjustable to FATDMA, RATDMA, SOTDMA)
Interface RS-232
Virtual AtoN Supported

Drawings (mm)

Modular AIS ATON System Aids To Navigation 20NM AIS Communication IP68 Rated
