Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS
Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS
Specifications
Brand Name :
Dexon
Model Number :
DX903S
Certification :
CE、RoHS、ISO、IEC、IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 2000~3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Solar Panel & Battery :
4*1.8W mono panel, Lithium Battery, ≥100Wh
Operating Temperature :
-35°C to +60°C
Protection Level :
IP68
lifespan :
15 years
applications :
Offshore Buoys Remote Navigation Channels Unmanned Maritime Installations Offshore Wind Farms / Oil Platforms Temporary or Emergency AtoNs Smart Buoy Networks Coastal Surveillance Integration
Operating Mode :
SOTDMA, FATDMA, RATDMA (adjustable)
Description

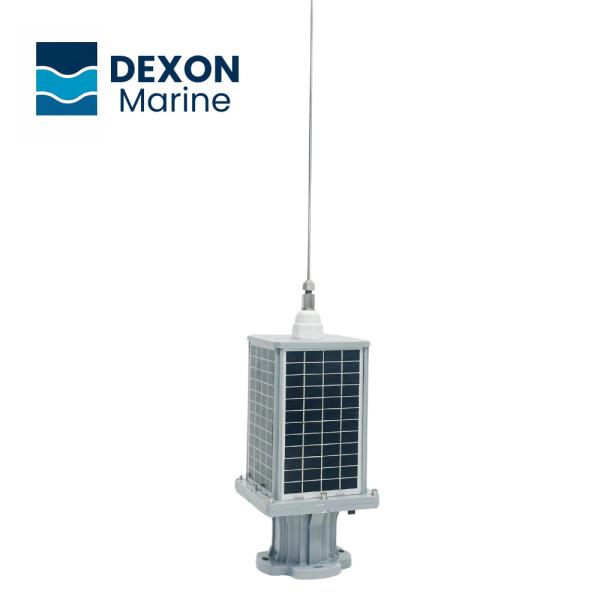

AIS Navigation Unit that is compact and solar-ready, with a 100Wh battery and Smart BMS
The DX903S is built with a ≥100Wh lithium battery and enhanced by precise open-circuit testing for solar panel and battery voltages. This ensures accurate system monitoring and optimised performance. The AIS module operates independently and is equipped with short-circuit and polarity protection for seamless and safe data transmission. Its robust stainless steel antenna provides consistent signal coverage over long distances, making it ideal for use with isolated buoys, offshore platforms and remote navigational routes.

Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS

Core advantages

  1. Equipped with a lithium battery , ≥100Wh, which is engineered for long-term autonomous operation.
  2. Open-circuit testing ensures precise monitoring of solar and battery voltages.
  3. Independent AIS module with built-in short-circuit and reverse polarity protection.
  4. Stainless steel high-gain antenna delivers stable signal coverage over extended distances.
  5. Designed for use in remote and unmanned locations such as buoys, offshore platforms and isolated waterways.
  6. Reliable data transmission and energy control for critical marine navigation.

Technical specification

Category Specification Details
Main features
 Operating Voltage DC 5.5V—8.3V
Solar Panels & Battery
 Vertical 4x1.8W mono panel ,Lithium Battery, ≥100Wh
Waterproof Rating
IP68
Operating Temperature
-35°C to +60°C
Parameter Setting
RS232
Continuous Operation ≥30 days(Overcast/Rainy Conditions)
AIS features
Operating Frequency 161.975MHz, 162.025MHz
Modulation Mode GMSK/FSK
Frequency Error ±0.5kHz
Transmission Power 1W 2W 5W 6W 12.5W
Average Power Consumption Continuous mode ≤1W (Low power mode ≤0.7W)
Message Format Messages 21, 6(adjustable), supports multiple formats
Operating Mode Default Mode3 RATDMA (FATDMA, RATDMA, SOTDMA adjustable)
Weight/ Size
 Weight ≤2.5 kg
Dimensions 345mm x 122mm x 122mm
Packaging Size 500mm x 200mm x200mm

Drawings

Compact AIS Navigation Unit Solar Ready With 100Wh Lithium Battery Smart BMS

Application

  • Offshore Buoys
  • Remote Navigation Channels
  • Unmanned Maritime Installations
  • Offshore Wind Farms / Oil Platforms
  • Temporary or Emergency AtoNs
  • Smart Buoy Networks
  • Coastal Surveillance Integration

FAQ

1, How long can it operate autonomously?
It is powered by a ≥100Wh lithium battery for long-term, unmanned use.

2, How is power performance monitored?
Open-circuit testing ensures accurate solar and battery voltage readings.

3, Is the AIS module protected?
Yes, with built-in short-circuit and reverse polarity protection.

4, How far does the signal reach?
A stainless steel high-gain antenna ensures stable, long-range coverage.

5, Where is it best deployed?
It is ideal for buoys, offshore platforms and isolated waterways.

6, Is data transmission reliable?
Yes. It is designed for consistent AIS signals and smart energy control.
