Marine Radar Beacon (RACON) Single Dual Band DX-RACON-01 Series | Up to 20NM Range, IMO & IALA Compliant

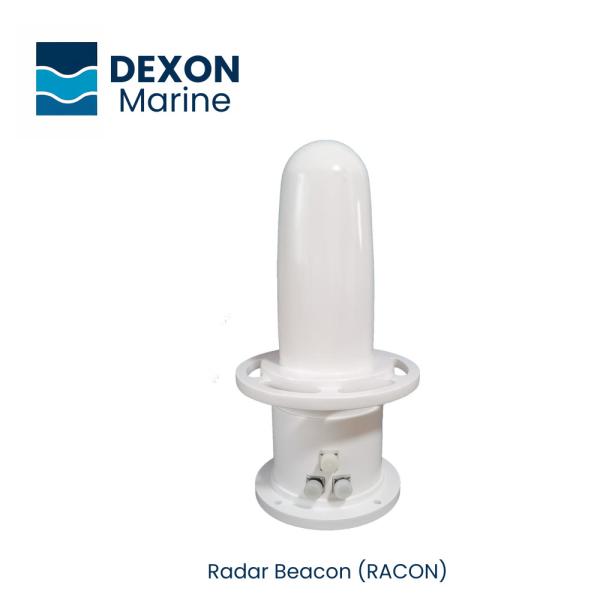

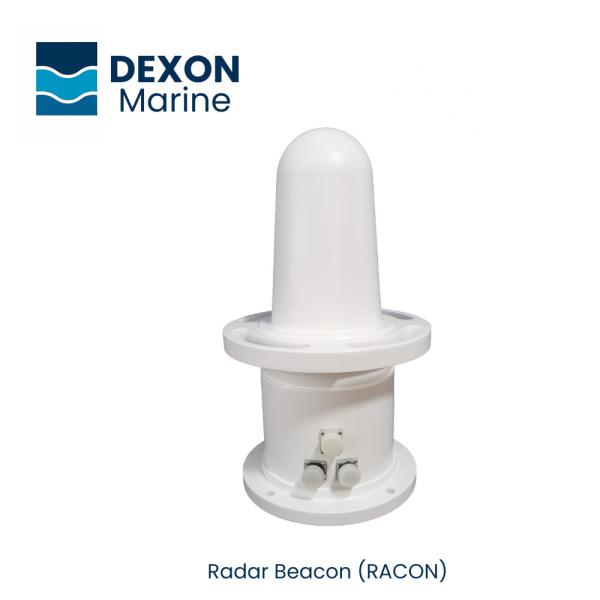

The DX-RACON-01 Series Radar Beacon (Racon) is an advanced, high-performance radar transponder designed to assist vessel navigation in critical maritime zones. Upon receiving a radar signal from an approaching vessel, the racon immediately responds by transmitting a Morse-coded signal using frequency-agile transmission. This response serves as a precise location reference on the ship's radar display, guiding vessels safely through channels, around hazards, or under bridges.

The DX-RACON-01 is constructed with military-grade components and sealed with advanced anti-corrosion and waterproofing technologies, making it suitable for continuous, all-weather operation in remote marine environments. Its robust structure and compliance with IALA, IMO, and ITU technical standards ensure reliable service in even the harshest offshore conditions.
Please note that the following information is intended for business purposes only.

KEY ADVANTAGES

• Long Range Performance: High-efficiency antenna and solid-state broadband transceiver unit deliver ≥1.5W transmission power and extended detection range up to 20 nautical miles.
• Frequency Agility: Automatically adapts Morse-code pulse length based on radar pulse width and vessel radar range.
• Dual-Band Capability (Optional): Supports both X-band (9300–9500 MHz) and S-band (2900–3100 MHz) for compatibility with a wide range of radar systems.
• Remote Monitoring Ready: Compatible with AIS or BeiDou communication terminals for real-time operational status monitoring.
• Field-Proven Durability: Anti-salt spray materials, military-grade sealing, and shock-resistant construction ensure maximum reliability.
• Corrosion-Resistant Materials: Composite base and marine-grade coatings enhance resistance to salt fog and marine corrosion.

TECHNICAL DATA

Applications

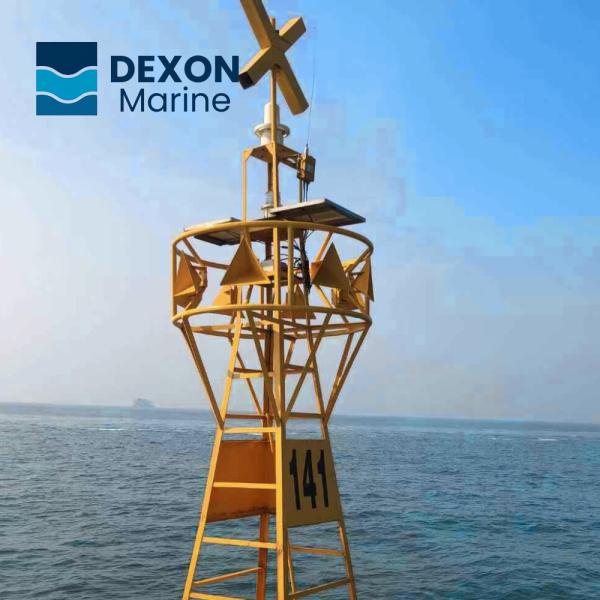

• Channel turning marks and fairway delineation
• Warning of isolated hazards or exclusion zones
• Bridge span indicators, coastal route marks, and leading lines
• Long-range position indication for marine radar systems

Compliance

• IALA Recommendation A-126
• IMO MSC.192(79)
• ITU-R M.824-3

Optional Accessories: External AIS transmitter, GPS synchronization modules, custom mounting brackets available on request.
OEM Branding & Custom Configurations: Supported for large-scale infrastructure projects and national tenders.
