Specifications
Brand Name :
GuRen
Model Number :
A1H25S
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Conventional current :
180A
Peak current :
250A
Length :
68.8mm
width :
31.6mm
Speed :
1000RPM
Housing :
316L Stainless Steel
Description

A1H25S high current liquid slip ring. The shell is made of 316L stainless steel, which effectively increases the corrosion resistance of the product and can be used in environments with a small amount of corrosive mist and water splashes.


A1H25S high current liquid slip ring Product features

1. Achieve high-speed rotation, with a maximum speed of 1000 rpm.
2. 180A conventional current, 250A peak current, suitable for equipment requiring high current.
3. Contact resistance <1mΩ, reducing transmission loss.
4. Fully sealed stainless steel housing, suitable for installation environments with slight corrosion.


A1H25S high current liquid slip ring Product parameters


Parameter name

Parameter Value

Insulation resistance

>35 mΩ

Contact resistance

＜1mΩ

Rated voltage

0～400VDC/VAC

Maximum frequency

200MHz

Working current

10-1500rpm(See the specific model, can be customized)

Operating temperature

-30℃～+60℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Stainless steel/aluminum alloy

Rotational torque

35-2000G·CM(See specific model)

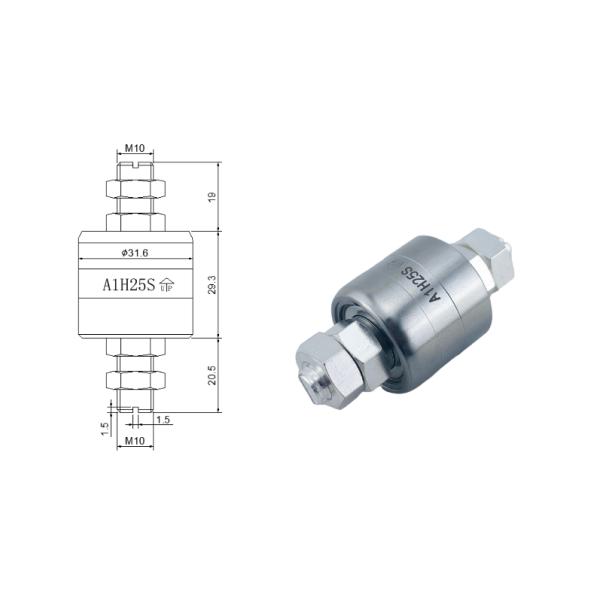

A1H25S high current liquid slip ring Product size drawing

250A High Current Liquid Slip Ring 316L Stainless Steel Housing 1000RPM

Model

Use current

Peak current

Maximum voltage

Speed

Operating temperature

Housing Material

Usage Environment

A1H25S

≤180A

250A

400V

1000rpm

-30～60℃

Stainless steel

A small amount of weakly corrosive material comes into contact with the slip ring

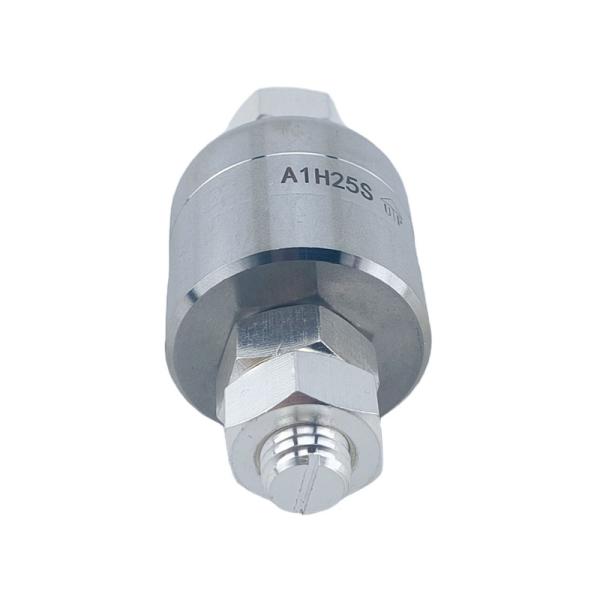

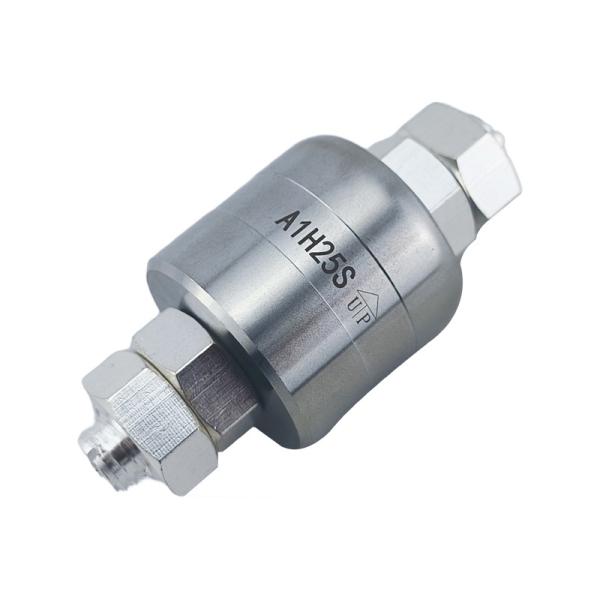

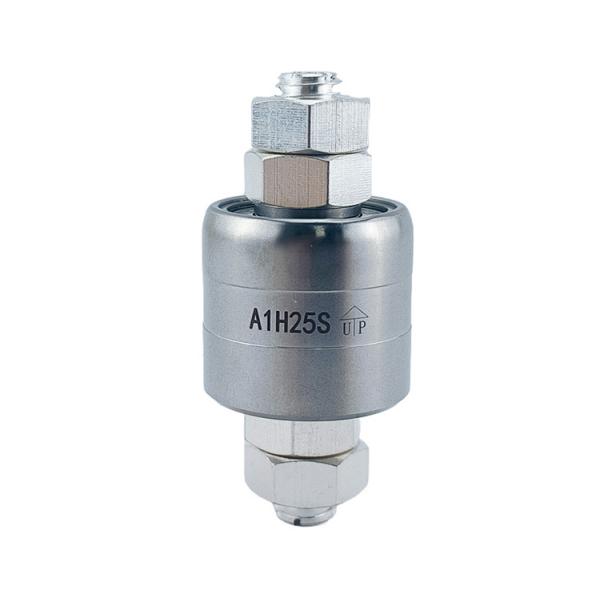

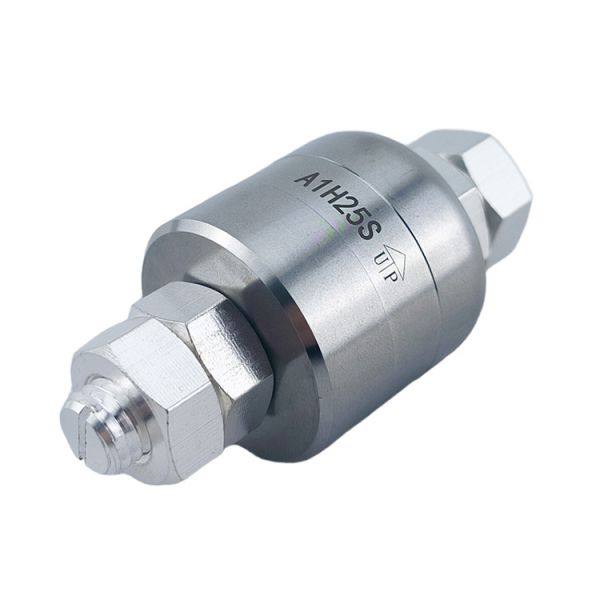

A1H25S high current liquid slip ring Product Pictures

250A High Current Liquid Slip Ring 316L Stainless Steel Housing 1000RPM

250A High Current Liquid Slip Ring 316L Stainless Steel Housing 1000RPM


A1H25S high current liquid slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
