Specifications
Brand Name :
GuRen
Model Number :
A1M2S
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Dynamic Resistance Variation :
≤±5%
Signal Bandwidth :
DC~40 GHz
Crosstalk Suppression :
≥90dB@1GHz
Conventional current :
≤25A
Peak current :
30A
Speed :
1800rpm
Description

A1M2S liquid conductive rotary joint, the shell is made of 316L stainless steel, the normal current is 25A, and the maximum current can pass is 30A, which is suitable for use in environments with slight corrosion.


A1M2S liquid conductive rotary joint Product features

1. The transmission signal is free of noise, high speed, and the signal is not distorted.
2. Liquid packaging is used, there is almost no wear during rotation, and the service life is longer.
3. The structure is simple and die-casting is used, so the product is more durable.


A1M2S liquid conductive rotary joint Product parameters


Parameter name

Parameter Value

Insulation resistance

>35 mΩ

Contact resistance

＜1mΩ

Rated voltage

0～400VDC/VAC

Maximum frequency

200MHz

Working current

10-1500rpm(See the specific model, can be customized)

Operating temperature

-30℃～+60℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Stainless steel/aluminum alloy

Rotational torque

35-2000G·CM(See specific model)

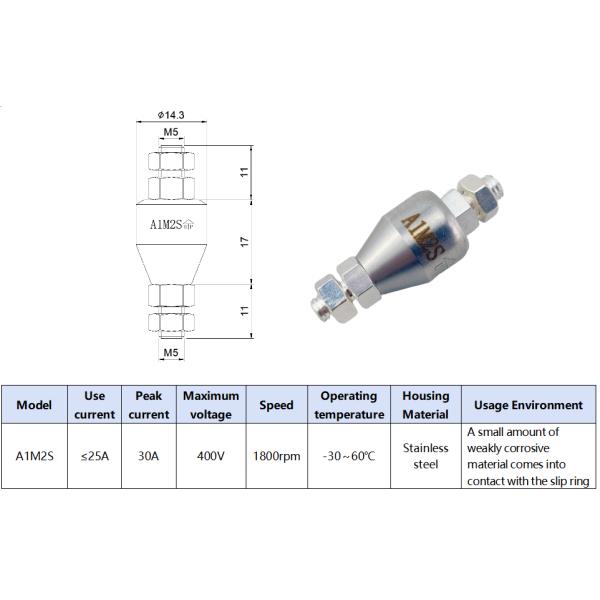

A1M2S liquid conductive rotary joint Product size drawing


25A Liquid Fluid Rotary Joint Conductive 316L Stainless Steel Rotary Union 1800rpm

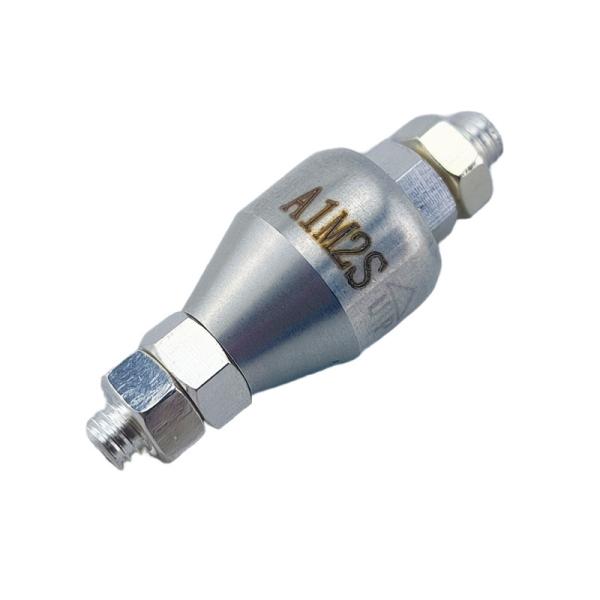

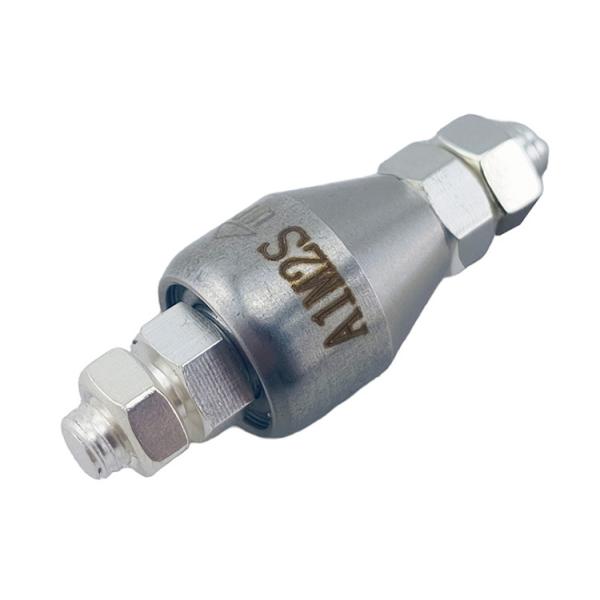

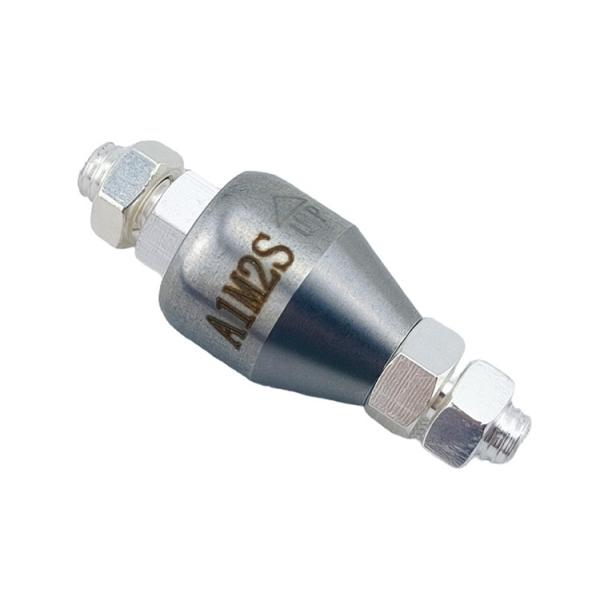

A1M2S liquid conductive rotary joint Product Pictures

25A Liquid Fluid Rotary Joint Conductive 316L Stainless Steel Rotary Union 1800rpm

25A Liquid Fluid Rotary Joint Conductive 316L Stainless Steel Rotary Union 1800rpm


A1M2S liquid conductive rotary joint GuRenApplication scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
