10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed
Specifications
Brand Name :
GuRen
Model Number :
A1M
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Conventional current :
≤10A
Peak current :
20A
Length :
28.3mm
width :
14.3mm
Speed :
1800rpm
Housing Material :
Aluminum Alloy
Description

A1M single channel liquid slip ring, the slip ring adopts aluminum alloy shell, single-side stud lock, conventionally can pass 10A current, small size and easy installation.


A1M single channel liquid slip ring Product features

1. The product is small, with a length of 28.3mm, suitable for installation in various narrow areas
2. Low resistance, transmission is effective in reducing energy loss
3. 1800rpm per minute speed, suitable for various rotating equipment with high speed requirements.


A1M single channel liquid slip ring Product parameters


Parameter name

Parameter Value

Insulation resistance

>35 mΩ

Contact resistance

＜1mΩ

Rated voltage

0～400VDC/VAC

Maximum frequency

200MHz

Working current

10-1500rpm(See the specific model, can be customized)

Operating temperature

-30℃～+60℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Stainless steel/aluminum alloy

Rotational torque

35-2000G·CM(See specific model)


A1M single channel liquid slip ring Product size drawing

10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed

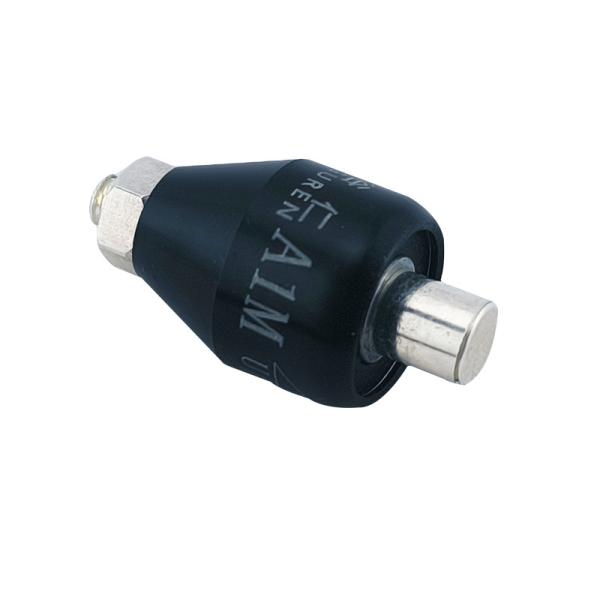

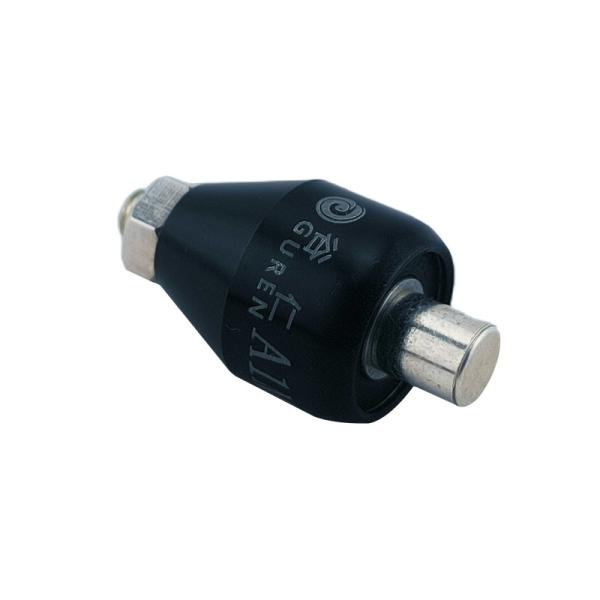

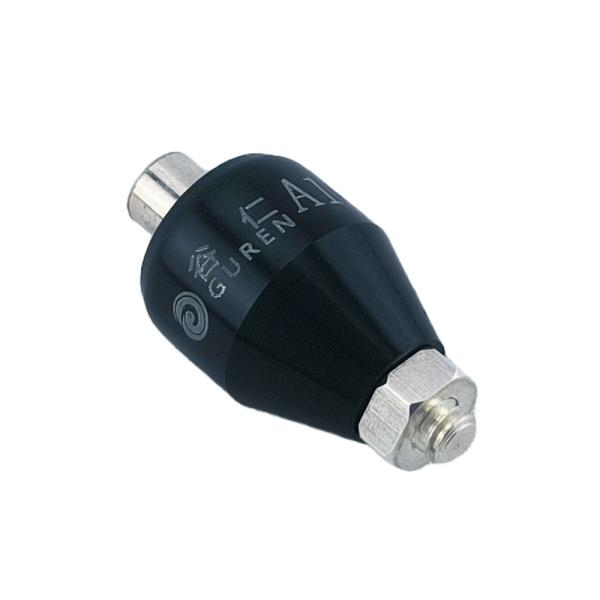

A1M single channel liquid slip ring Product Pictures

10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed

10A Current Single Channel Liquid Slip Ring Small Size 1800rpm Speed


A1M single channel liquid slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
