Specifications
Brand Name :
GuRen
Model Number :
W1M50S-D
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Conventional current :
≤50A
Peak current :
65A
Length :
56mm
width :
23.8mm
Speed :
1500rpm
Housing :
M8
Description
50A Current, Corrosion-Resistant Electric Slip Ring
Product Attributes
Attribute Value
Conventional current ≤50A
Peak current 65A
Length 56mm
Width 23.8mm
Speed 1500rpm
Housing M8
Product Description

W1M50S-D corrosion-resistant electric slip ring is a high-speed slip ring developed for complex environments. The speed can reach 1500 revolutions per minute. It adopts three layers of protection to better resist the erosion of corrosive liquids.

Product Features
  • Adopt independent outer protective structure, strong corrosion resistance
  • High speed support, maximum speed is 1500RPM per minute
  • Ultra-low resistance, making the transmission energy efficiency ratio higher
  • Integrated structure design, lock installation, making installation and maintenance easier and faster
Product Parameters
Parameter Name Parameter Value
Insulation resistance >35 mΩ
Contact resistance ＜1mΩ
Rated voltage 0～400VDC/VAC
Maximum frequency 200MHz
Working current 10-1500rpm (See the specific model, can be customized)
Operating temperature -30℃～+60℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Stainless steel/aluminum alloy
Rotational torque 35-2000G***** CM (See specific model)
Product Size Drawing
50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring

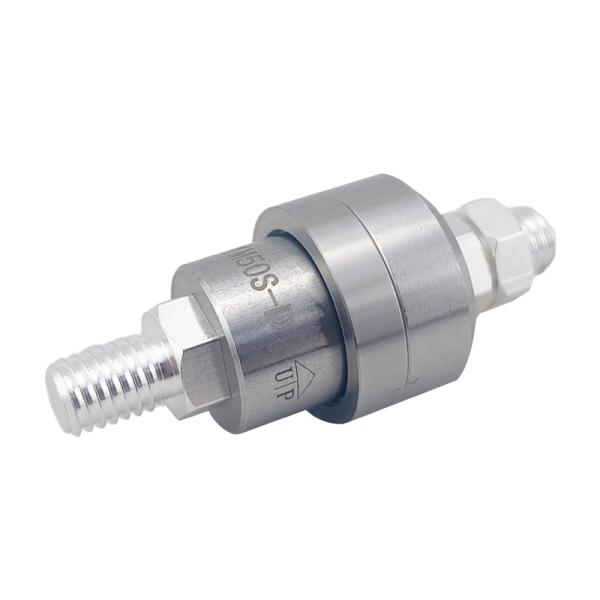

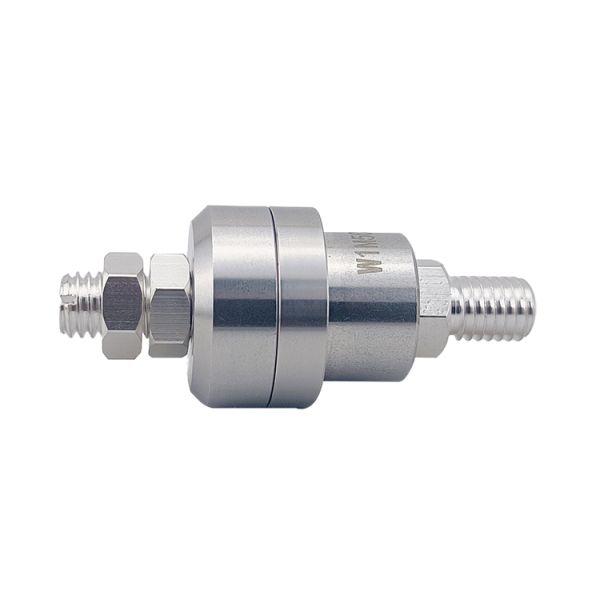

Product Pictures
50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring 50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring
Application Scenarios
Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
